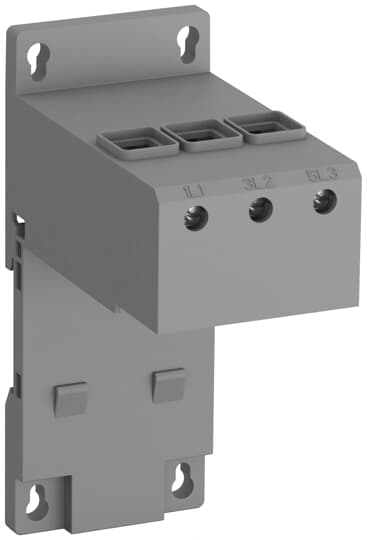

DB65 Single mounting kit for TF65
Specifications
| Ordering |
|---|
| Minimum Order Quantity: |
1 piece |
| Customs Tariff Number: |
85389099 |
| Popular Downloads |
|---|
| Instructions and Manuals: |
2CDC106087M6802 |
| Dimensions |
|---|
| Product Net Width: |
55 mm |
| Product Net Height: |
95 mm |
| Product Net Depth / Length: |
138 mm |
| Product Net Weight: |
0.132 kg |
| Technical |
|---|
| Rated Operational Voltage: |
Main Circuit 690 V AC |
| Rated Operational Current (Ie): |
67 A |
| Rated Operational Current AC-3 (Ie): |
67 A |
| Rated Frequency (f): |
Main Circuit 60 HzMain Circuit 50 Hz |
| Rated Impulse Withstand Voltage (Uimp): |
Main Circuit 8 kV |
| Rated Insulation Voltage (Ui): |
390 V |
| Number of Poles: |
3 |
| Degree of Protection: |
IP20 |
| Pollution Degree: |
3 |
| Connecting Capacity Main Circuit: |
Flexible with Ferrule 1x 2.5 ... 35 mm?Ã’ƒÂ½Flexible with Ferrule 2x 2.5 ... 10 mm?Ã’ƒÂ½Flexible with Insulated Ferrule 1x 2.5 ... 35 mm?Ã’ƒÂ½Flexible with Insulated Ferrule 1x 2.5 ... 10 mm?Ã’ƒÂ½Flexible 1x 2.5 ... 35 mm?Ã’ƒÂ½Flexible 2x 2.5 ... 16 mm?Ã’ƒÂ½Rigid 1x 2.5 ... 35 mm?Ã’ƒÂ½Rigid 2x 2.5 ... 16 mm?Ã’ƒÂ½ |
| Tightening Torque: |
Main Circuit 4.0 ... 4.5 N?Ã’ƒÂºm |
| Wire Stripping Length: |
Main Circuit 17 mm |
| Recommended Screw Driver: |
Pozidriv 2M6 |
| Mounting Position: |
1 ... 6 |
| Suitable For: |
TF65 |
| Technical UL/CSA |
|---|
| Maximum Operating Voltage UL/CSA: |
Main Circuit 600 V AC |
| Ampere Rating UL/CSA: |
67 A |
| Connecting Capacity Main Circuit UL/CSA: |
Flexible 1x 12-2 AWGFlexible 2x 12-6 AWGStranded 1x 12-2 AWGStranded 2x 12-6 AWG |
| Tightening Torque UL/CSA: |
Main Circuit 35 ... 40 in?Ã’ƒÂºlb |
| Environmental |
|---|
| Resistance to Shock acc. to IEC 60068-2-27: |
11 ms Pulse 25g |
| Resistance to Vibrations acc. to IEC 60068-2-6: |
5g / 3 ... 150 Hz |
| RoHS Status: |
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Certificates and Declarations (Document Number) |
|---|
| Declaration of Conformity - CE: |
1SAD938512-0187 |
| Declaration of Conformity - UKCA: |
1SAD938501-1187 |
| Instructions and Manuals: |
2CDC106087M6802 |
| RoHS Information: |
1SAD938512-0187 |
| UL Certificate: |
E48139-20130329 |
| Container Information |
|---|
| Package Level 1 Units: |
box 1 piece |
| Package Level 1 Width: |
60 mm |
| Package Level 1 Height: |
106 mm |
| Package Level 1 Depth / Length: |
142 mm |
| Package Level 1 Gross Weight: |
0.174 kg |
| Package Level 1 EAN: |
4013614501722 |
| Classifications |
|---|
| ETIM 5: |
EC002498 - Accessories for low-voltage switch technology |
| ETIM 6: |
EC002498 - Accessories for low-voltage switch technology |
| ETIM 7: |
EC002498 - Accessories for low-voltage switch technology |
| ETIM 8: |
EC002498 - Accessories/spare parts for low-voltage switch technology |
| eClass: |
V11.0 : 27371392 |
| UNSPSC: |
39122221 |
| IDEA Granular Category Code (IGCC): |
5219 >> Switch part or accessory |
| E-Number (Sweden): |
3210250 |
