ABB AF09-30-10K-11 24-60V50/60HZ 20-60VDC Contactor 1SBL137005R1110
ABB AF09-30-10K-11 24-60V50/60HZ 20-60VDC Contactor 1SBL137005R1110
Regular price
R 394.34 ZAR
Regular price
R 716.99 ZAR
Sale price
R 394.34 ZAR
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability

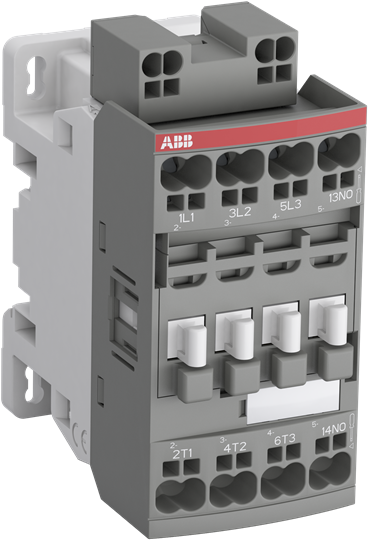

The AF09-30-10K-11 is a 3 pole - 690 V IEC or 600 UL contactor with 1 built-in auxiliary contact and push-in spring terminals, controlling motors up to 4 kW / 400 V AC (AC-3) or 5 hp / 480 V UL and switching power circuits up to 25 A (AC-1) or 25 A UL general use. Thanks to the AF technology, the contactor has a wide control voltage range (24-60 V 50/60 Hz and 20-60 V DC), managing large control voltage variations, reducing panel energy consumptions and ensuring distinct operations in unstable networks. Furthermore, surge protection is built-in, offering a compact solution. AF contactors have a block type design, can be easily extended with add-on auxiliary contact blocks and an additional wide range of accessories.
Specifications
| Ordering | |
|---|---|
| Minimum Order Quantity: | 1 piece |
| Customs Tariff Number: | 85364900 |
| Popular Downloads | |
| Instructions and Manuals: | 1SBC101054M6801 |
| Dimension Diagram: | DNV_TAE00001AF-4 |
| Dimensions | |
| Product Net Width: | 45 mm |
| Product Net Depth / Length: | 77 mm |
| Product Net Height: | 92.3 mm |
| Product Net Weight: | 0.285 kg |
| Technical | |
| Number of Main Contacts NO: | 3 |
| Number of Main Contacts NC: | 0 |
| Number of Auxiliary Contacts NO: | 1 |
| Number of Auxiliary Contacts NC: | 0 |
| Rated Operational Voltage: | Auxiliary Circuit 690 VMain Circuit 690 V |
| Rated Frequency (f): | Auxiliary Circuit 50 / 60 HzMain Circuit 50 / 60 Hz |
| Conventional Free-air Thermal Current (Ith): | acc. to IEC 60947-4-1, Open Contactors q = 40 °C 35 Aacc. to IEC 60947-5-1, q = 40 °C 16 A |
| Rated Operational Current AC-1 (Ie): | (690 V) 40 °C 25 A(690 V) 60 °C 25 A(690 V) 70 °C 22 A |
| Rated Operational Current AC-3 (Ie): | (415 V) 60 °C 9 A(440 V) 60 °C 9 A(500 V) 60 °C 9.5 A(690 V) 60 °C 7 A(380 / 400 V) 60 °C 9 A(220 / 230 / 240 V) 60 °C 9 A |
| Rated Operational Current AC-3e (Ie): | (415 V) 60 °C 9 A(440 V) 60 °C 9 A(500 V) 60 °C 9.5 A(690 V) 60 °C 7 A(380 / 400 V) 60 °C 9 A(220 / 230 / 240 V) 60 °C 9 A |
| Rated Operational Power AC-3 (Pe): | (415 V) 4 kW(440 V) 4 kW(500 V) 5.5 kW(690 V) 5.5 kW(380 / 400 V) 4 kW(220 / 230 / 240 V) 2.2 kW |
| Rated Operational Power AC-3e (Pe): | (415 V) 4 kW(440 V) 4 kW(500 V) 5.5 kW(690 V) 5.5 kW(380 / 400 V) 4 kW(220 / 230 / 240 V) 2.2 kW |
| Rated Operational Current AC-15 (Ie): | (500 V) 2 A(690 V) 2 A(24 / 127 V) 6 A(220 / 240 V) 4 A(400 / 440 V) 3 A |
| Rated Short-time Withstand Current Low Voltage (Icw): | at 40 °C Ambient Temp, in Free Air, from a Cold State 10 s 150 Aat 40 °C Ambient Temp, in Free Air, from a Cold State 15 min 35 Aat 40 °C Ambient Temp, in Free Air, from a Cold State 1 min 60 Aat 40 °C Ambient Temp, in Free Air, from a Cold State 1 s 300 Aat 40 °C Ambient Temp, in Free Air, from a Cold State 30 s 80 Afor 0.1 s 140 Afor 1 s 100 A |
| Maximum Breaking Capacity: | cos phi=0.45 (cos phi=0.35 for Ie > 100 A) at 440 V 250 Acos phi=0.45 (cos phi=0.35 for Ie > 100 A) at 690 V 106 A |
| Maximum Electrical Switching Frequency: | (AC-1) 600 cycles per hour(AC-15) 1200 cycles per hour(AC-2 / AC-4) 300 cycles per hour(AC-3) 1200 cycles per hour(DC-13) 900 cycles per hour |
| Rated Operational Current DC-13 (Ie): | (24 V) 6 A / 144 W(48 V) 2.8 A / 134 W(72 V) 1 A / 72 W(110 V) 0.55 A / 60 W(125 V) 0.55 A / 69 W(220 V) 0.27 A / 60 W(250 V) 0.27 A / 68 W(400 V) 0.15 A / 60 W(500 V) 0.13 A / 65 W(600 V) 0.1 A / 60 W |
| Rated Insulation Voltage (Ui): | acc. to IEC 60947-4-1 and VDE 0110 (Gr. C) 690 Vacc. to UL/CSA 600 V |
| Rated Impulse Withstand Voltage (Uimp): | 6 kV |
| Maximum Mechanical Switching Frequency: | 3600 cycles per hour |
| Rated Control Circuit Voltage (Uc): | 50 Hz 24 ... 60 V60 Hz 24 ... 60 VDC Operation 20 ... 60 V |
| Operate Time: | Between Coil De-energization and NC Contact Closing 13 ... 98 msBetween Coil De-energization and NO Contact Opening 11 ... 95 msBetween Coil Energization and NC Contact Opening 38 ... 90 msBetween Coil Energization and NO Contact Closing 40 ... 95 ms |
| Mounting on DIN Rail: | TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715 |
| Mounting by Screws (not supplied): | 2 x M4 screws placed diagonally |
| Connecting Capacity Main Circuit: | Flexible with Ferrule 1/2x 0.5 ... 4 mm²Flexible with Insulated Ferrule 1x 0.5 ... 4 mm²Flexible with Insulated Ferrule 2x 0.5 ... 2.5 mm²Flexible 1/2x 0.5 ... 4 mm²Rigid 1/2x 1 ... 6 mm² |
| Connecting Capacity Auxiliary Circuit: | Flexible with Ferrule 1/2x 0.5 ... 2.5 mm²Flexible with Insulated Ferrule 1/2x 0.5 ... 1.5 mm²Flexible 1/2x 0.5 ... 2.5 mm²Rigid 1/2x 1 ... 2.5 mm² |
| Connecting Capacity Control Circuit: | Flexible with Ferrule 1/2x 0.5 ... 2.5 mm²Flexible with Insulated Ferrule 1/2x 0.5 ... 1.5 mm²Flexible 1/2x 0.5 ... 2.5 mm²Rigid 1/2x 1 ... 2.5 mm² |
| Wire Stripping Length: | Auxiliary Circuit 10 mmControl Circuit 10 mmMain Circuit 12 mm |
| Degree of Protection: | acc. to IEC 60529, IEC 60947-1, EN 60529 Auxiliary Terminals IP20acc. to IEC 60529, IEC 60947-1, EN 60529 Coil Terminals IP20acc. to IEC 60529, IEC 60947-1, EN 60529 Main Terminals IP20 |
| Terminal Type: | Push-in Spring Terminals |
| Technical UL/CSA | |
| NEMA Size: | 00 |
| Continuous Current Rating NEMA: | 9 A |
| Horsepower Rating NEMA: | (115 V AC) Single Phase 1/3 Hp(200 V AC) Three Phase 1-1/2 Hp(230 V AC) Single Phase 1 Hp(230 V AC) Three Phase 1-1/2 Hp(460 V AC) Three Phase 2 Hp(575 V AC) Three Phase 2 Hp |
| General Use Rating UL/CSA: | (600 V AC) 25 A |
| Horsepower Rating UL/CSA: | (120 V AC) Single Phase 3/4 hp(200 ... 208 V AC) Three Phase 2 hp(220 ... 240 V AC) Three Phase 2 hp(240 V AC) Single Phase 1-1/2 hp(440 ... 480 V AC) Three Phase 5 hp(550 ... 600 V AC) Three Phase 7-1/2 hp |
| Environmental | |
| Ambient Air Temperature: | Close to Contactor without Thermal O/L Relay -40 ... 70 °CClose to Contactor for Storage -60 ... +80 °C |
| Climatic Withstand: | Category B according to IEC 60947-1 Annex Q |
| Maximum Operating Altitude Permissible: | Without Derating 3000 m |
| Resistance to Vibrations acc. to IEC 60068-2-6: | 5 ... 300 Hz 4 g closed position / 2 g open position |
| RoHS Status: | Following EU Directive 2011/65/EU |
| Certificates and Declarations (Document Number) | |
| ABS Certificate: | ABS_20-2060694-PDA |
| CB Certificate: | CB_SE-96551M1 |
| CCC Certificate: | CCC_2010010304445624 |
| CQC Certificate: | CQC2010010304445624CQC2020010304298240 |
| cUL Certificate: | UL_20180227_E312527_7_1 |
| Declaration of Conformity - CCC: | 20209803040012532020980304001082 |
| Declaration of Conformity - CE: | 1SBD250000U1000 |
| Declaration of Conformity - UKCA: | 1SBD250031U1000 |
| GL Certificate: | DNV-GL_TAE00001AF-3 |
| Instructions and Manuals: | 1SBC101054M6801 |
| RINA Certificate: | RINA_ELE240318XG |
| RMRS Certificate: | RMRS_1802705280 |
| RoHS Information: | 1SBD250000U1000 |
| Container Information | |
| Package Level 1 Units: | box 1 piece |
| Package Level 1 Width: | 93 mm |
| Package Level 1 Depth / Length: | 86 mm |
| Package Level 1 Height: | 45 mm |
| Package Level 1 Gross Weight: | 0.3 kg |
| Package Level 1 EAN: | 3471523154018 |
| Package Level 2 Units: | box 21 piece |
| Package Level 2 Width: | 250 mm |
| Package Level 2 Depth / Length: | 300 mm |
| Package Level 2 Height: | 315 mm |
| Package Level 2 Gross Weight: | 13.5 kg |
| Package Level 3 Units: | 1080 piece |
| Classifications | |
| Object Classification Code: | Q |
| ETIM 4: | EC000066 - Magnet contactor, AC-switching |
| ETIM 5: | EC000066 - Magnet contactor, AC-switching |
| ETIM 6: | EC000066 - Power contactor, AC switching |
| ETIM 7: | EC000066 - Power contactor, AC switching |
| ETIM 8: | EC000066 - Power contactor, AC switching |
| eClass: | V11.0 : 27371003 |
| UNSPSC: | 39121529 |
| E-Number (Finland): | 3707849 |
| E-Number (Sweden): | 3210579 |
