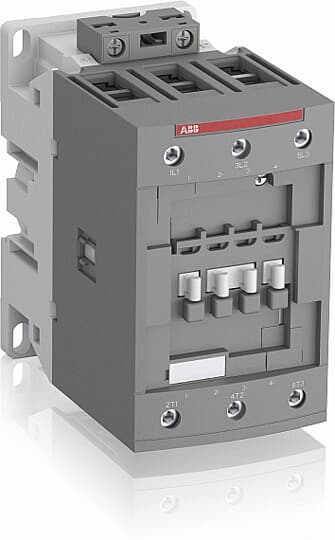

ABB AF96-30-00-12 48-130V50/60HZ-DC Contactor 1SBL407001R1200
ABB AF96-30-00-12 48-130V50/60HZ-DC Contactor 1SBL407001R1200
Regular price
R 3,201.47 ZAR
Regular price
R 5,995.48 ZAR
Sale price
R 3,201.47 ZAR
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
The AF96-30-00-12 is a 3 pole - 1000 V IEC or 600 UL contactor with screw terminals, controlling motors up to 45 kW / 400 V AC (AC-3) or 60 hp / 480 V UL and switching power circuits up to 130 A (AC-1) or 115 A UL general use. Thanks to the AF technology, the contactor has a wide control voltage range (48-130 V 50/60 Hz and DC), managing large control voltage variations, reducing panel energy consumptions and ensuring distinct operations in unstable networks. Furthermore, surge protection is built-in, offering a compact solution. AF contactors have a block type design, can be easily extended with add-on auxiliary contact blocks and an additional wide range of accessories.
Specifications
| Ordering | |
|---|---|
| Minimum Order Quantity: | 1 piece |
| Customs Tariff Number: | 85364900 |
| Popular Downloads | |
| Instructions and Manuals: | 1SBC101036M6801 |
| Dimension Diagram: | DNV_TAE00001AF-4 |
| Dimensions | |
| Product Net Width: | 70 mm |
| Product Net Depth / Length: | 116 mm |
| Product Net Height: | 125.5 mm |
| Product Net Weight: | 1.22 kg |
| Technical | |
| Number of Main Contacts NO: | 3 |
| Number of Main Contacts NC: | 0 |
| Number of Auxiliary Contacts NO: | 0 |
| Number of Auxiliary Contacts NC: | 0 |
| Rated Operational Voltage: | Main Circuit 1000 V |
| Rated Frequency (f): | Main Circuit 50 / 60 Hz |
| Conventional Free-air Thermal Current (Ith): | acc. to IEC 60947-4-1, Open Contactors q = 40 °C 130 A |
| Rated Operational Current AC-1 (Ie): | (690 V) 40 °C 130 A(690 V) 60 °C 105 A(690 V) 70 °C 90 A |
| Rated Operational Current AC-3 (Ie): | (415 V) 60 °C 96 A(440 V) 60 °C 96 A(500 V) 60 °C 80 A(690 V) 60 °C 57 A(1000 V) 60 °C 30 A(380 / 400 V) 60 °C 105 A(220 / 230 / 240 V) 60 °C 105 A |
| Rated Operational Current AC-3e (Ie): | (415 V) 60 °C 96 A(440 V) 60 °C 96 A(500 V) 60 °C 80 A(690 V) 60 °C 57 A(380 / 400 V) 60 °C 105 A(220 / 230 / 240 V) 60 °C 105 A |
| Rated Operational Power AC-3 (Pe): | (415 V) 55 kW(440 V) 55 kW(500 V) 55 kW(690 V) 55 kW(1000 V) 40 kW(380 / 400 V) 45 kW(380 / 400 V) 55 kW(220 / 230 / 240 V) 25 kW(220 / 230 / 240 V) 30 kW |
| Rated Operational Power AC-3e (Pe): | (415 V) 55 kW(440 V) 55 kW(500 V) 55 kW(690 V) 55 kW(380 / 400 V) 45 kW(380 / 400 V) 55 kW(220 / 230 / 240 V) 25 kW(220 / 230 / 240 V) 30 kW |
| Rated Short-time Withstand Current Low Voltage (Icw): | at 40 °C Ambient Temp, in Free Air, from a Cold State 10 s 840 Aat 40 °C Ambient Temp, in Free Air, from a Cold State 15 min 140 Aat 40 °C Ambient Temp, in Free Air, from a Cold State 1 min 300 Aat 40 °C Ambient Temp, in Free Air, from a Cold State 1 s 1200 Aat 40 °C Ambient Temp, in Free Air, from a Cold State 30 s 450 Afor 1 s -empty- A |
| Maximum Breaking Capacity: | cos phi=0.45 (cos phi=0.35 for Ie > 100 A) at 440 V 1150 Acos phi=0.45 (cos phi=0.35 for Ie > 100 A) at 690 V 750 A |
| Maximum Electrical Switching Frequency: | (AC-1) 600 cycles per hour(AC-2 / AC-4) 150 cycles per hour(AC-3) 1200 cycles per hour |
| Rated Insulation Voltage (Ui): | acc. to IEC 60947-4-1 and VDE 0110 (Gr. C) 1000 Vacc. to UL/CSA 600 V |
| Rated Impulse Withstand Voltage (Uimp): | 8 kV |
| Maximum Mechanical Switching Frequency: | 3600 cycles per hour |
| Rated Control Circuit Voltage (Uc): | 50 Hz 48 ... 130 V60 Hz 48 ... 130 VDC Operation 48 ... 130 V |
| Operate Time: | Between Coil De-energization and NC Contact Closing 19 ... 105 msBetween Coil De-energization and NO Contact Opening 17 ... 100 msBetween Coil Energization and NC Contact Opening 38 ... 95 msBetween Coil Energization and NO Contact Closing 42 ... 100 ms |
| Mounting on DIN Rail: | TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715 |
| Mounting by Screws (not supplied): | 2 x M4 or 2 x M6 screws placed diagonally |
| Connecting Capacity Main Circuit: | Flexible with Ferrule 1/2x 6 ... 50 mm²Flexible with Insulated Ferrule 1/2x 6 ... 50 mm²Rigid 1x 6 ... 70 mm²Rigid 2x 6 ... 50 mm² |
| Connecting Capacity Control Circuit: | Flexible with Ferrule 1/2x 0.75 ... 2.5 mm²Flexible with Insulated Ferrule 1x 0.75 ... 2.5 mm²Flexible with Insulated Ferrule 2x 0.75 ... 1.5 mm²Rigid 1/2x 1 ... 2.5 mm² |
| Wire Stripping Length: | Main Circuit 17 mm |
| Degree of Protection: | acc. to IEC 60529, IEC 60947-1, EN 60529 Coil Terminals IP20acc. to IEC 60529, IEC 60947-1, EN 60529 Main Terminals IP10 |
| Terminal Type: | Screw Terminals |
| Technical UL/CSA | |
| General Use Rating UL/CSA: | (600 V AC) 115 A |
| Horsepower Rating UL/CSA: | (120 V AC) Single Phase 7-1/2 hp(200 ... 208 V AC) Three Phase 30 hp(220 ... 240 V AC) Three Phase 40 hp(240 V AC) Single Phase 20 hp(440 ... 480 V AC) Three Phase 75 hp(550 ... 600 V AC) Three Phase 75 hp |
| Tightening Torque UL/CSA: | Control Circuit 11 in·lbMain Circuit 53 in·lb |
| Environmental | |
| Ambient Air Temperature: | Close to Contactor Fitted with Thermal O/L Relay -40 ... 70 °CClose to Contactor without Thermal O/L Relay -40 ... 70 °CClose to Contactor for Storage -60 ... +80 °C |
| Climatic Withstand: | Category B according to IEC 60947-1 Annex Q |
| Maximum Operating Altitude Permissible: | Without Derating 3000 m |
| Resistance to Vibrations acc. to IEC 60068-2-6: | 5 ... 300 Hz 3 g closed position / 3 g open position |
| Resistance to Shock acc. to IEC 60068-2-27: | Closed, Shock Direction: A 25 gClosed, Shock Direction: B1 25 gClosed, Shock Direction: B2 15 gClosed, Shock Direction: C1 25 gClosed, Shock Direction: C2 25 gOpen, Shock Direction: B1 5 g |
| RoHS Status: | Following EU Directive 2011/65/EU |
| Certificates and Declarations (Document Number) | |
| ABS Certificate: | ABS_20-2060694-PDA |
| BV Certificate: | BV_2634H36994A |
| CB Certificate: | CB_SE-96557M2 |
| CCC Certificate: | CCC_2013010304646569 |
| CQC Certificate: | CQC2013010304646569 |
| Declaration of Conformity - CCC: | 2020980304001255 |
| Declaration of Conformity - CE: | 1SBD250000U1000 |
| Declaration of Conformity - UKCA: | 1SBD250031U1000 |
| EAC Certificate: | EAC_RU_FRME77B03447 |
| Environmental Information: | 1SBD250168E10001SBC100222M0201 |
| GL Certificate: | DNV-GL_TAE00001AF-3 |
| Instructions and Manuals: | 1SBC101036M6801 |
| KC Certificate: | KC_HW02016-15011C |
| LR Certificate: | LRS_1300087E1 |
| RINA Certificate: | RINA_ELE084013XG |
| RMRS Certificate: | RMRS_1802705280 |
| RoHS Information: | 1SBD250000U1000 |
| UL Certificate: | UL_20130926-E312527_14_1 |
| UL Listing Card: | UL_E312527 |
| Container Information | |
| Package Level 1 Units: | box 1 piece |
| Package Level 1 Width: | 150 mm |
| Package Level 1 Depth / Length: | 150 mm |
| Package Level 1 Height: | 103 mm |
| Package Level 1 Gross Weight: | 1.34 kg |
| Package Level 1 EAN: | 3471523133228 |
| Package Level 2 Units: | box 8 piece |
| Package Level 2 Width: | 250 mm |
| Package Level 2 Depth / Length: | 300 mm |
| Package Level 2 Height: | 300 mm |
| Package Level 2 Gross Weight: | 10.72 kg |
| Package Level 3 Units: | 192 piece |
| Classifications | |
| Object Classification Code: | Q |
| ETIM 4: | EC000066 - Magnet contactor, AC-switching |
| ETIM 5: | EC000066 - Magnet contactor, AC-switching |
| ETIM 6: | EC000066 - Power contactor, AC switching |
| ETIM 7: | EC000066 - Power contactor, AC switching |
| ETIM 8: | EC000066 - Power contactor, AC switching |
| eClass: | V11.0 : 27371003 |
| UNSPSC: | 39121529 |
| E-Number (Finland): | 3707136 |
| E-Number (Sweden): | 3210056 |
