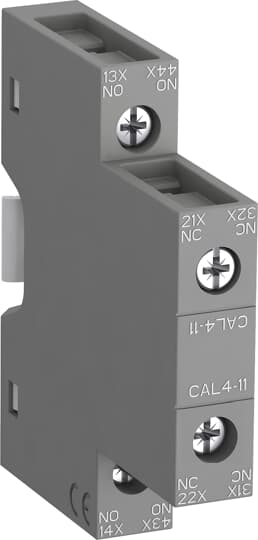

ABB CAL4-11-T Auxiliary Contact Block 1SBN010120T1011
ABB CAL4-11-T Auxiliary Contact Block 1SBN010120T1011
Regular price
R 116.01 ZAR
Regular price
R 217.26 ZAR
Sale price
R 116.01 ZAR
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
The auxiliary contact blocks are used for the operation of auxiliary circuits and control circuits for standard industrial environments.Types of auxiliary contact blocks for front mounting:• CA4 1 or 4-pole block, with instantaneous N.O., N.C. contacts• CC4 1-pole block, with N.O. leading contact or N.C. lagging contact• CAT4 2-pole block, with instantaneous N.O. + N.C. contacts and A1 / A2 coil terminal connection on front face.Select the 4-pole auxiliary contact blocks CA4-..E, CA4-..M, CA4-..U or CA4-..N type, according to the contactor or contactor relay type for compliance with the standard requirements (see "Terminal marking and positioning").Types of auxiliary contact blocks for side mounting:• CAL4 2-pole block, with instantaneous N.O. + N.C. contacts.For clipping onto the right- and/or left-hand side of the contactors. The auxiliary contact blocks are equipped with screw type connecting terminals delivered open, protected against accidental direct contact and bear the corresponding function marking.
Specifications
| Technical | |
|---|---|
| Suitable For: | AF09AF09ZAF12AF12ZAF16AF16ZAF26AF26ZAF30AF30ZAF38AF38ZAF40AF52AF65AF80AF96AFC09AFC12AFC16AFC26AFC30AFC38AFS09AFS12AFS16AFS26AFS30AFS38AFS40AFS52AFS65AFS80AFS96AF09BAF09ZBAF12BAF12ZBAF16BAF16ZBAF26BAF26ZBAF30BAF30ZBAF38BAF38ZBNF22ENFZ22ENF31ENFZ31ENF40ENFZ40ENF44ENFZ44ENF53ENFZ53ENF62ENFZ62ENF71ENFZ71ENF80ENFZ80ENF33/11NF51/11NFC22ENFC31ENFC40ENFC44ENFC53ENFC62ENFC71ENFC80ENFZB22ENFB22ENFZB31ENFB31ENFZB40ENFB40ENFZB44ENFB44ENFZB62ENFB62ENFZB80ENFB80E |
| Rated Operational Voltage: | Auxiliary Circuit 690 V |
| Rated Insulation Voltage (Ui): | acc. to IEC 60947-5-1 and VDE 0110 (Gr. C) 690 Vacc. to UL/CSA 600 V |
| Rated Impulse Withstand Voltage (Uimp): | 6 kV |
| Rated Operational Current AC-15 (Ie): | (500 V) 2 A(690 V) 2 A(24 / 127 V) 6 A(220 / 240 V) 4 A(400 / 440 V) 3 A |
| Rated Short-time Withstand Current Low Voltage (Icw): | for 0.1 s 140 Afor 1 s 100 A |
| Rated Frequency (f): | Auxiliary Circuit 50 / 60 Hz |
| Number of Auxiliary Contacts NC: | 1 |
| Number of Auxiliary Contacts NO: | 1 |
| Low Coil Consumption: | No |
| Tightening Torque: | Auxiliary Circuit 1.2 N·m |
| Mounted Auxiliary Contacts: | 1 NO, 1 NC |
| Mounting Type: | Side Mounting |
| Wire Stripping Length: | Auxiliary Circuit 10 mm |
| Terminal Type: | Screw Terminals |
| Environmental | |
| Degree of Protection: | acc. to IEC 60529, IEC 60947-1, EN 60529 Auxiliary Terminals IP20 |
| RoHS Status: | Following EU Directive 2011/65/EU |
| Environmental Information: | 1SBD250145E1000 |
| Technical UL/CSA | |
| Tightening Torque UL/CSA: | Auxiliary Circuit 11 in·lb |
| Pilot Duty UL/CSA: | A600Q600 |
| Dimensions | |
| Product Net Width: | 12 mm |
| Product Net Height: | 69.4 mm |
| Product Net Depth / Length: | 60 mm |
| Product Net Weight: | 0.04 kg |
| Container Information | |
| Package Level 1 Units: | box 10 piece |
| Package Level 1 Width: | 76 mm |
| Package Level 1 Height: | 68 mm |
| Package Level 1 Depth / Length: | 160 mm |
| Package Level 1 Gross Weight: | 0.4 kg |
| Package Level 1 EAN: | 3471523130418 |
| Package Level 2 Units: | box 420 piece |
| Package Level 2 Gross Weight: | 16.8 kg |
| Package Level 3 Units: | 7560 piece |
| Ordering | |
| Minimum Order Quantity: | 10 piece |
| Customs Tariff Number: | 85389099 |
| E-Number (Finland): | 3706507 |
| E-Number (Sweden): | 3211436 |
| Certificates and Declarations (Document Number) | |
| ABS Certificate: | ABS_20-2060694-PDA |
| BV Certificate: | BV_2634H24900B0 |
| CB Certificate: | CB_SE-93052A1 |
| CQC Certificate: | CQC2011010304496319CQC2019010304264779 |
| cUL Certificate: | UL_20180227_E252354_3_1 |
| Declaration of Conformity - CCC: | 20209803040012582020980304001053 |
| Declaration of Conformity - CE: | 1SBD250007U1000 |
| Declaration of Conformity - UKCA: | 1SBD250038U1000 |
| DNV Certificate: | DNV-GL_TAE00001BV-3 |
| DNV GL Certificate: | DNV-GL_TAE00001BV-3 |
| EAC Certificate: | EAC_RU C-FR ME77 B03391 |
| Environmental Information: | 1SBD250145E1000 |
| GL Certificate: | DNV-GL_TAE00001BV-3 |
| GOST Certificate: | GOST_POCCFR.ME77.B07175.pdf |
| Instructions and Manuals: | 1SBC101041M6801 |
| LR Certificate: | LRS_1300087E1 |
| RINA Certificate: | RINA_ELE084013XG |
| RMRS Certificate: | RMRS_1802703280 |
| RoHS Information: | 1SBD250007U1000 |
| UL Certificate: | UL_20091128-E252354-3-1 |
| UL Listing Card: | UL_E252354 |
| Popular Downloads | |
| Instructions and Manuals: | 1SBC101041M6801 |
| UL Listing Card: | UL_E252354 |
| Classifications | |
| ETIM 7: | EC000041 - Auxiliary contact block |
| ETIM 8: | EC000041 - Auxiliary contact block |
| WEEE Category: | 5. Small Equipment (No External Dimension More Than 50 cm) |
| WEEE B2C / B2B: | Business To Business |
| CN8: | 8538 90 99 |
| UNSPSC: | 39121500 |
| eClass: | V11.0 : 27371302 |
| Object Classification Code: | K |
