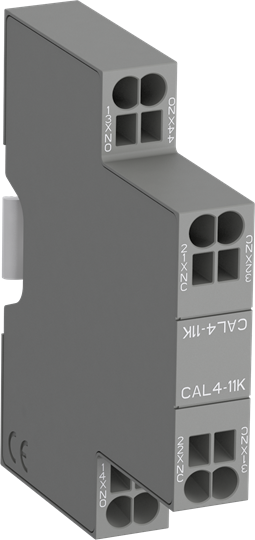

ABB CAL4-11K Auxiliary Contact Block 1SBN010134R1011

The auxiliary contact blocks are used for the operation of auxiliary circuits and control circuits for standard industrial environments.Types of auxiliary contact blocks for front mounting:• CA4..K 1 or 4-pole block, with instantaneous N.O., N.C. contactsSelect the 4-pole auxiliary contact blocks CA4-..EK, CA4-..MK or CA4-..NK type, according to the contactor or contactor relay type for compliance with the standard requirements (see "Terminal marking and positioning").Types of auxiliary contact blocks for side mounting:• CAL4..K 2-pole block, with instantaneous N.O. + N.C. contacts.For clipping onto the right- and/or left-hand side of the contactors.The auxiliary contact blocks are equipped with push-in spring terminals protected against accidental direct contact and bear the corresponding function marking.

Specifications

Technical
Suitable For:	AF09AF09ZAF12AF12ZAF16AF16ZAF26AF26ZAF30AF30ZAF38AF38ZAF40AF52AF65AF80AF96AFC09AFC12AFC16AFC26AFC30AFC38AF09BAF09ZBAF12BAF12ZBAF16BAF16ZBAF26BAF26ZBAF30BAF30ZBAF38BAF38ZBNF22ENFZ22ENF31ENFZ31ENF40ENFZ40ENF44ENFZ44ENF53ENFZ53ENF62ENFZ62ENF71ENFZ71ENF80ENFZ80ENF33/11NF51/11NFC22ENFC31ENFC40ENFC44ENFC53ENFC62ENFC71ENFC80ENFC33/11NFC51/11NFZB22ENFB22ENFZB31ENFB31ENFZB40ENFB40ENFZB44ENFB44ENFZB62ENFB62ENFZB80ENFB80E
Rated Operational Voltage:	Auxiliary Circuit 690 V
Rated Insulation Voltage (Ui):	acc. to IEC 60947-5-1 and VDE 0110 (Gr. C) 690 Vacc. to UL/CSA 600 V
Rated Impulse Withstand Voltage (Uimp):	6 kV
Rated Operational Current AC-15 (Ie):	(500 V) 2 A(690 V) 2 A(24 / 127 V) 6 A(220 / 240 V) 4 A(400 / 440 V) 3 A
Rated Short-time Withstand Current Low Voltage (Icw):	for 0.1 s 140 Afor 1 s 100 A
Rated Frequency (f):	Auxiliary Circuit 50 / 60 Hz
Number of Auxiliary Contacts NC:	1
Number of Auxiliary Contacts NO:	1
Low Coil Consumption:	No
Mounted Auxiliary Contacts:	1 NO, 1 NC
Mounting Type:	Side Mounting
Wire Stripping Length:	Auxiliary Circuit 10 mm
Terminal Type:	Push-in Spring Terminals
Environmental
Degree of Protection:	acc. to IEC 60529, IEC 60947-1, EN 60529 Auxiliary Terminals IP20
RoHS Status:	Following EU Directive 2011/65/EU
Technical UL/CSA
Pilot Duty UL/CSA:	A600Q600
Dimensions
Product Net Width:	12 mm
Product Net Height:	72 mm
Product Net Depth / Length:	60 mm
Product Net Weight:	0.03 kg
Container Information
Package Level 1 Units:	bag 1 piece
Package Level 1 Width:	125 mm
Package Level 1 Height:	20 mm
Package Level 1 Depth / Length:	125 mm
Package Level 1 Gross Weight:	0.03 kg
Package Level 1 EAN:	3471523131262
Ordering
Minimum Order Quantity:	1 piece
Customs Tariff Number:	85389099
E-Number (Finland):	3708031
E-Number (Sweden):	3210647
Certificates and Declarations (Document Number)
ABS Certificate:	ABS_20-2060694-PDA
CB Certificate:	CB_SE-93052A1
CQC Certificate:	CQC2011010304496319CQC2019010304264779
cUL Certificate:	UL_20180227_E252354_3_1
Declaration of Conformity - CCC:	20209803040012582020980304001053
Declaration of Conformity - CE:	1SBD250007U1000
Declaration of Conformity - UKCA:	1SBD250038U1000
DNV Certificate:	DNV-GL_TAE00001BV-3
DNV GL Certificate:	DNV-GL_TAE00001BV-3
GL Certificate:	DNV-GL_TAE00001BV-3
Instructions and Manuals:	1SBC101054M6801
RMRS Certificate:	RMRS_1802703280
RoHS Information:	1SBD250007U1000
Popular Downloads
Instructions and Manuals:	1SBC101054M6801
Classifications
ETIM 7:	EC000041 - Auxiliary contact block
ETIM 8:	EC000041 - Auxiliary contact block
EPLAN Catalog Tree:	Electrical engineering / Relays, contactors / Auxiliary block
WEEE Category:	5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B:	Business To Business
CN8:	8538 90 99
UNSPSC:	39121500
eClass:	V11.0 : 27371302
Object Classification Code:	K
