ABB VEM4 Mechanical and Electrical Interlock Unit 1SBN030111R1000
ABB VEM4 Mechanical and Electrical Interlock Unit 1SBN030111R1000
Regular price
R 207.01 ZAR
Regular price
R 387.68 ZAR
Sale price
R 207.01 ZAR
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability

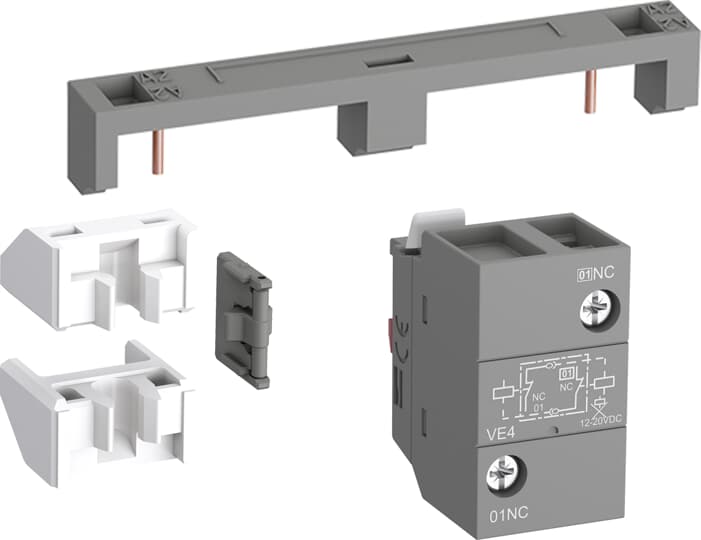

The VEM4 is a mechanical and electrical interlock set for the interlocking of two AF(C) contactors.VEM4 set includes a mechanical interlock unit VM4 with 2 fixing clips (BB4) and a VE4 electrical interlock block with A2-A2 connection.Fixing the electrical interlock block to the contactor front face connects the 2 built-in N.C. interlocking contacts with the two coils. VE4 block must be used with A2-A2 connection to respect the electrical connection diagram.
Specifications
| Technical | |
|---|---|
| Suitable For: | AF09AF09ZAF12AF12ZAF16AF16ZAF26AF26ZAF30AF30ZAF38AF38ZAFC09AFC12AFC16AFC26AFC30AFC38AF09BAF09ZBAF12BAF12ZBAF16BAF16ZBAF26BAF26ZBAF30BAF30ZBAF38BAF38ZB |
| Rated Insulation Voltage (Ui): | acc. to IEC 60947-5-1 and VDE 0110 (Gr. C) 690 V |
| Rated Impulse Withstand Voltage (Uimp): | 6 kV |
| Mechanical Durability: | 5 million |
| Number of Auxiliary Contacts NC: | 2 |
| Number of Auxiliary Contacts NO: | 0 |
| Tightening Torque: | Auxiliary Circuit 1.2 N·m |
| Wire Stripping Length: | Auxiliary Circuit 10 mm |
| Terminal Type: | Screw Terminals |
| Environmental | |
| Degree of Protection: | acc. to IEC 60529, IEC 60947-1, EN 60529 Auxiliary Terminals IP20 |
| RoHS Status: | Following EU Directive 2011/65/EU |
| Environmental Information: | 1SBD250142E1000 |
| Technical UL/CSA | |
| Maximum Operating Voltage UL/CSA: | Auxiliary Circuit 500 V AC/DC |
| Tightening Torque UL/CSA: | Auxiliary Circuit 11 in·lb |
| Dimensions | |
| Product Net Width: | 25 mm |
| Product Net Height: | 43 mm |
| Product Net Depth / Length: | 31.6 mm |
| Product Net Weight: | 0.035 kg |
| Container Information | |
| Package Level 1 Units: | box 1 piece |
| Package Level 1 Width: | 92 mm |
| Package Level 1 Height: | 46 mm |
| Package Level 1 Depth / Length: | 35 mm |
| Package Level 1 Gross Weight: | 0.035 kg |
| Package Level 1 EAN: | 3471523130616 |
| Package Level 2 Units: | box 132 piece |
| Package Level 2 Gross Weight: | 4.62 kg |
| Package Level 3 Units: | 3168 piece |
| Ordering | |
| Minimum Order Quantity: | 1 piece |
| Customs Tariff Number: | 85389099 |
| E-Number (Finland): | 3706551 |
| E-Number (Sweden): | 3210004 |
| Certificates and Declarations (Document Number) | |
| ABS Certificate: | ABS_20-2060694-PDA |
| CB Certificate: | CB_SE-93053 |
| CQC Certificate: | CQC2013010304651497 |
| Declaration of Conformity - CCC: | 2020980304001259 |
| Declaration of Conformity - CE: | 1SBD250007U1000 |
| Declaration of Conformity - UKCA: | 1SBD250038U1000 |
| Environmental Information: | 1SBD250142E1000 |
| GOST Certificate: | GOST_POCCFR.ME77.B07175.pdf |
| Instructions and Manuals: | 1SBC101028M6801 |
| RINA Certificate: | RINA_ELE084013XG |
| RoHS Information: | 1SBD250007U1000 |
| UL Certificate: | UL_20091124-E312527-6-1 |
| UL Listing Card: | UL_E312527 |
| Popular Downloads | |
| Instructions and Manuals: | 1SBC101028M6801 |
| UL Listing Card: | UL_E312527 |
| Classifications | |
| ETIM 7: | EC001044 - Mechanic interlock for switch |
| ETIM 8: | EC001044 - Mechanic interlock for switch |
| WEEE Category: | 5. Small Equipment (No External Dimension More Than 50 cm) |
| WEEE B2C / B2B: | Business To Business |
| CN8: | 8538 90 99 |
| UNSPSC: | 39120000 |
