ABB
Regular price
R 241.98 ZAR
Regular price
R 439.97 ZAR
Sale price
R 241.98 ZAR
Unit price
/
per
Sale
Sold out
SKU:
Part Number: 1SBN030113R1000
Couldn't load pickup availability
Refresh

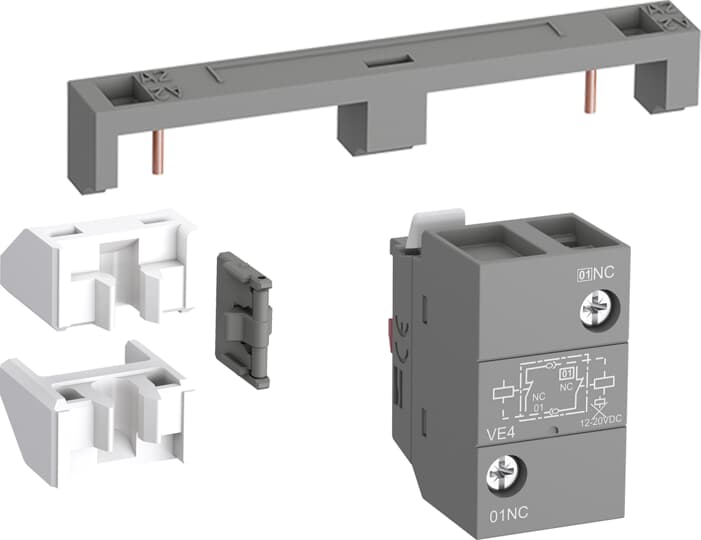

The VEM4K is a mechanical and electrical interlock set for the interlocking of two AF(C)..K contactors.VEM4 set includes a mechanical interlock unit VM4 with 2 fixing clips (BB4) and a VE4K electrical interlock block with A2-A2 connection.Fixing the electrical interlock block to the contactor front face connects the 2 built-in N.C. interlocking contacts with the two coils. VE4K block must be used with A2-A2 connection to respect the electrical connection diagram.
Specifications
Technical
Suitable For:
AF09AF09ZAF12AF12ZAF16AF16ZAF26AF26ZAF30AF30ZAF38AF38ZAFC09AFC12AFC16AFC26AFC30AFC38AF09BAF09ZBAF12BAF12ZBAF16BAF16ZBAF26BAF26ZBAF30BAF30ZBAF38BAF38ZB
Rated Insulation Voltage (Ui):
acc. to IEC 60947-5-1 and VDE 0110 (Gr. C) 690 V
Rated Impulse Withstand Voltage (Uimp):
6 kV
Mechanical Durability:
5 million
Number of Auxiliary Contacts NC:
2
Number of Auxiliary Contacts NO:
0
Wire Stripping Length:
Auxiliary Circuit 10 mm
Terminal Type:
Push-in Spring Terminals
Environmental
Degree of Protection:
acc. to IEC 60529, IEC 60947-1, EN 60529 Auxiliary Terminals IP20
RoHS Status:
Following EU Directive 2011/65/EU
Technical UL/CSA
Maximum Operating Voltage UL/CSA:
Auxiliary Circuit 500 V AC/DC
Dimensions
Product Net Width:
25 mm
Product Net Height:
43 mm
Product Net Depth / Length:
31.6 mm
Product Net Weight:
0.03 kg
Container Information
Package Level 1 Units:
box 1 piece
Package Level 1 Width:
45 mm
Package Level 1 Height:
91 mm
Package Level 1 Depth / Length:
34 mm
Package Level 1 Gross Weight:
0.043 kg
Package Level 1 EAN:
3471523131392
Ordering
Minimum Order Quantity:
1 piece
Customs Tariff Number:
85389099
E-Number (Finland):
3708089
Certificates and Declarations (Document Number)
ABS Certificate:
ABS_20-2060694-PDA
CB Certificate:
CB_SE-93053
CQC Certificate:
CQC2013010304651497
Declaration of Conformity - CCC:
2020980304001259
Declaration of Conformity - CE:
1SBD250007U1000
Declaration of Conformity - UKCA:
1SBD250038U1000
Instructions and Manuals:
1SBC101028M6801
RoHS Information:
1SBD250007U1000
Popular Downloads
Instructions and Manuals:
1SBC101028M6801
Classifications
ETIM 7:
EC001044 - Mechanic interlock for switch
ETIM 8:
EC001044 - Mechanic interlock for switch
EPLAN Catalog Tree:
Electrical engineering / Electrically-operated mechanical devices / General
WEEE Category:
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B:
Business To Business
CN8:
8538 90 99
UNSPSC:
39120000
