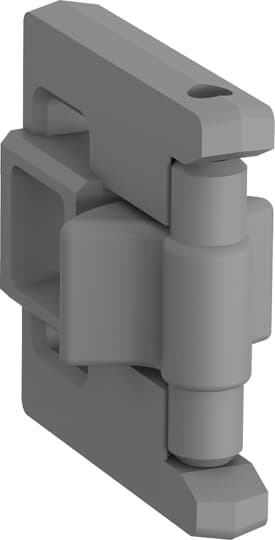

ABB VM96-4 Mechanical Interlock Unit 1SBN033405T1000

Mechanical interlock unitsThe VM mechanical interlock units are designed for the interlocking of two AF contactors.When mounted between two contactors, the VM mechanical interlock unit prevents one of the contactors from closing as long as the other contactor is closed.The mechanical interlock units VM4 and VM96-4 include 2 fixing clips (BB4).

Specifications

Technical
Suitable For:	AF40AF52AF65AF80AF96AFS40AFS52AFS65AFS80AFS96
Environmental
RoHS Status:	Following EU Directive 2011/65/EU
Environmental Information:	1SBD250187E1000
Dimensions
Product Net Width:	20 mm
Product Net Height:	19.8 mm
Product Net Depth / Length:	10 mm
Product Net Weight:	0.006 kg
Container Information
Package Level 1 Units:	bag 10 piece
Package Level 1 Width:	120 mm
Package Level 1 Height:	10 mm
Package Level 1 Depth / Length:	180 mm
Package Level 1 Gross Weight:	0.07 kg
Package Level 1 EAN:	3471523130937
Ordering
Minimum Order Quantity:	10 piece
Customs Tariff Number:	85389099
E-Number (Finland):	3707149
E-Number (Sweden):	3210175
Certificates and Declarations (Document Number)
ABS Certificate:	ABS_20-2060694-PDA
Declaration of Conformity - CE:	1SBD250007U1000
Declaration of Conformity - UKCA:	1SBD250038U1000
Environmental Information:	1SBD250187E1000
Instructions and Manuals:	1SBC101040M6801
RINA Certificate:	RINA_ELE084013XG
RoHS Information:	1SBD251028E1001
Popular Downloads
Instructions and Manuals:	1SBC101040M6801
Classifications
ETIM 7:	EC001044 - Mechanic interlock for switch
ETIM 8:	EC001044 - Mechanic interlock for switch
WEEE Category:	5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B:	Business To Business
CN8:	8538 90 99
UNSPSC:	39120000
