ABB BER16-4 Connection Set for Reversing Contactors 1SBN081311R1000

Name: ABB BER16-4 Connection Set for Reversing Contactors 1SBN081311R1000
Brand: ABB
SKU: 1SBN081311R1000
Price: 366.78 ZAR
Availability: In Stock subject to prior of sale

R 366.78 ZAR

Sale Sold out

SKU: Part Number:1SBN081311R1000

Shipping calculated at checkout.

Product variants

Quantity

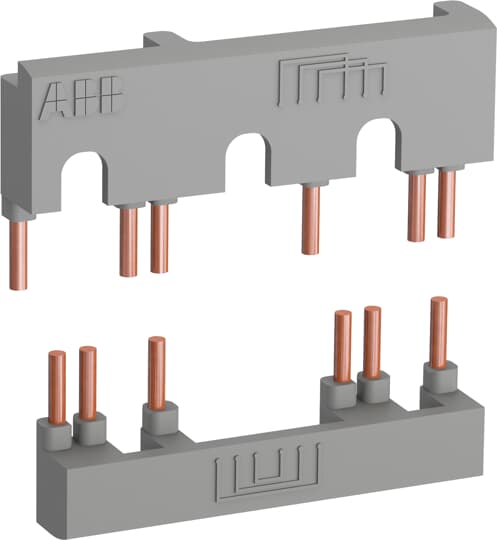

Connection sets for reversing contactorsThe BER and BEM connection sets are used to connect the main poles of two 3-pole contactors mounted side by side. The BER connection sets are made up of 1 upstream and 1 downstream connections. The BEM connection sets are made up of 3 upstream and 3 downstream connections.BER and BEM connection sets are insulated and made of solid copper bars.

Specifications

Technical
Suitable For:	AF09AF09ZAF12AF12ZAF16AF16ZAFC09AFC12AFC16AFS09AFS09ZAFS12AFS12ZAFS16AFS16ZAF09BAF09ZBAF12BAF12ZBAF16BAF16ZB
Rated Operational Voltage:	Main Circuit 690 V AC
Terminal Type:	Screw Terminals
Environmental
RoHS Status:	Following EU Directive 2011/65/EU
Environmental Information:	1SBD250141E1000
Dimensions
Product Net Width:	72 mm
Product Net Height:	33 mm
Product Net Depth / Length:	14.55 mm
Product Net Weight:	0.045 kg
Container Information
Package Level 1 Units:	bag 1 piece
Package Level 1 Width:	120 mm
Package Level 1 Height:	15 mm
Package Level 1 Depth / Length:	150 mm
Package Level 1 Gross Weight:	0.045 kg
Package Level 1 EAN:	3471523130777
Package Level 2 Units:	box 100 piece
Package Level 2 Gross Weight:	5 kg
Package Level 3 Units:	840 piece
Ordering
Minimum Order Quantity:	1 piece
Customs Tariff Number:	85389099
E-Number (Finland):	3706558
E-Number (Sweden):	3211441
Certificates and Declarations (Document Number)
Declaration of Conformity - CE:	1SBD250021U1000
Declaration of Conformity - UKCA:	1SBD250043U1000
Environmental Information:	1SBD250141E1000
GOST Certificate:	GOST_POCCFR.ME77.B07175.pdf
Instructions and Manuals:	1SBC101029M6801
RINA Certificate:	RINA_ELE084013XG
RoHS Information:	1SBD250021U1000
UL Certificate:	UL_20091121-E312527
UL Listing Card:	UL_E312527
Popular Downloads
Instructions and Manuals:	1SBC101029M6801
UL Listing Card:	UL_E312527
Classifications
ETIM 7:	EC002498 - Accessories for low-voltage switch technology
ETIM 8:	EC002498 - Accessories/spare parts for low-voltage switch technology
WEEE Category:	5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B:	Business To Business
CN8:	8538 90 99
UNSPSC:	39120000
eClass:	V11.0 : 27371392
