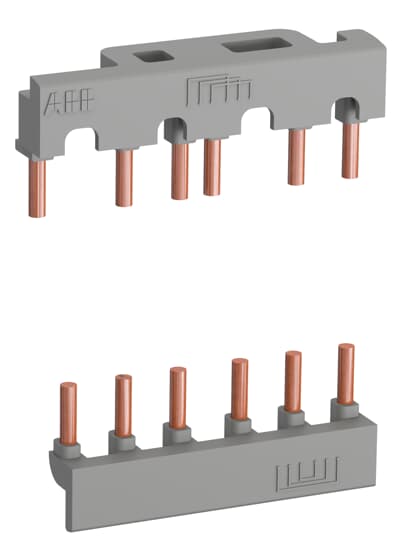

ABB BER38-4 Connection Set for Reversing Contactors 1SBN082311R1000
ABB BER38-4 Connection Set for Reversing Contactors 1SBN082311R1000
Regular price
R 246.36 ZAR
Regular price
R 461.37 ZAR
Sale price
R 246.36 ZAR
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Connection sets for reversing contactorsThe BER and BEM connection sets are used to connect the main poles of two 3-pole contactors mounted side by side. The BER connection sets are made up of 1 upstream and 1 downstream connections. The BEM connection sets are made up of 3 upstream and 3 downstream connections.BER and BEM connection sets are insulated and made of solid copper bars.
Specifications
| Technical | |
|---|---|
| Suitable For: | AF26AF26ZAF30AF30ZAF38AF38ZAFC26AFC30AFC38AFS26AFS26ZAFS30AFS30ZAFS38AFS38ZAF26BAF26ZBAF30BAF30ZBAF38BAF38ZB |
| Rated Operational Voltage: | Main Circuit 690 V AC |
| Terminal Type: | Screw Terminals |
| Environmental | |
| RoHS Status: | Following EU Directive 2011/65/EU |
| Environmental Information: | 1SBD250141E1000 |
| Dimensions | |
| Product Net Width: | 87.2 mm |
| Product Net Height: | 36.5 mm |
| Product Net Depth / Length: | 23.05 mm |
| Product Net Weight: | 0.1 kg |
| Container Information | |
| Package Level 1 Units: | bag 1 piece |
| Package Level 1 Width: | 120 mm |
| Package Level 1 Height: | 22 mm |
| Package Level 1 Depth / Length: | 150 mm |
| Package Level 1 Gross Weight: | 0.1 kg |
| Package Level 1 EAN: | 3471523130784 |
| Package Level 2 Units: | crate 100 piece |
| Package Level 2 Gross Weight: | 10 kg |
| Package Level 3 Units: | 504 piece |
| Ordering | |
| Minimum Order Quantity: | 1 piece |
| Customs Tariff Number: | 85389099 |
| E-Number (Finland): | 3706559 |
| E-Number (Sweden): | 3211442 |
| Certificates and Declarations (Document Number) | |
| Declaration of Conformity - CE: | 1SBD250021U1000 |
| Declaration of Conformity - UKCA: | 1SBD250043U1000 |
| Environmental Information: | 1SBD250141E1000 |
| GOST Certificate: | GOST_POCCFR.ME77.B07175.pdf |
| Instructions and Manuals: | 1SBC101029M6801 |
| RINA Certificate: | RINA_ELE084013XG |
| RoHS Information: | 1SBD250021U1000 |
| UL Certificate: | UL_20120730-E312527 |
| UL Listing Card: | UL_E312527 |
| Popular Downloads | |
| Instructions and Manuals: | 1SBC101029M6801 |
| UL Listing Card: | UL_E312527 |
| Classifications | |
| ETIM 7: | EC002498 - Accessories for low-voltage switch technology |
| ETIM 8: | EC002498 - Accessories/spare parts for low-voltage switch technology |
| WEEE Category: | 5. Small Equipment (No External Dimension More Than 50 cm) |
| WEEE B2C / B2B: | Business To Business |
| CN8: | 8538 90 99 |
| UNSPSC: | 39120000 |
| eClass: | V11.0 : 27371392 |
