ABB

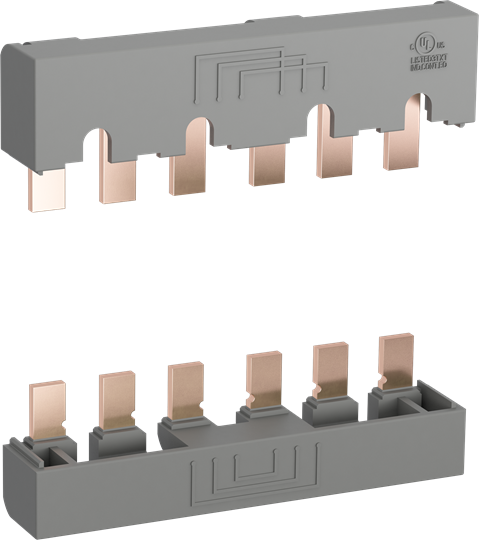

ABB BER65-4 Connection Set for Reversing Contactors 1SBN083411R1000
ABB BER65-4 Connection Set for Reversing Contactors 1SBN083411R1000
Regular price
R 299.83 ZAR
Regular price
R 561.51 ZAR
Sale price
R 299.83 ZAR
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Connection sets for reversing contactorsThe BER and BEM connection sets are used to connect the main poles of two 3-pole contactors mounted side by side. The BER connection sets are made up of 1 upstream and 1 downstream connections. The BEM connection sets are made up of 3 upstream and 3 downstream connections.BER and BEM connection sets are insulated and made of solid copper bars.
Specifications
| Technical | |
|---|---|
| Suitable For: | AF40AF52AF65AFS40AFS52AFS65 |
| Rated Operational Voltage: | Main Circuit 690 V AC |
| Terminal Type: | Screw Terminals |
| Environmental | |
| RoHS Status: | Following EU Directive 2011/65/EU |
| Environmental Information: | 1SBD250190E1000 |
| Dimensions | |
| Product Net Width: | 110 mm |
| Product Net Height: | 40 mm |
| Product Net Depth / Length: | 20.2 mm |
| Product Net Weight: | 0.175 kg |
| Container Information | |
| Package Level 1 Units: | bag 1 piece |
| Package Level 1 Width: | 150 mm |
| Package Level 1 Height: | 20 mm |
| Package Level 1 Depth / Length: | 200 mm |
| Package Level 1 Gross Weight: | 0.18 kg |
| Package Level 1 EAN: | 3471523130944 |
| Package Level 2 Units: | box 20 piece |
| Package Level 2 Gross Weight: | 3.6 kg |
| Package Level 3 Units: | 840 piece |
| Ordering | |
| Minimum Order Quantity: | 1 piece |
| Customs Tariff Number: | 85389099 |
| E-Number (Finland): | 3707150 |
| E-Number (Sweden): | 3210214 |
| Certificates and Declarations (Document Number) | |
| Declaration of Conformity - CE: | 1SBD250021U1000 |
| Declaration of Conformity - UKCA: | 1SBD250043U1000 |
| Environmental Information: | 1SBD250190E1000 |
| Instructions and Manuals: | 1SBC101038M6801 |
| RINA Certificate: | RINA_ELE084013XG |
| RoHS Information: | 1SBD250021U1000 |
| UL Certificate: | UL_20150520-E312527_5_2 |
| UL Listing Card: | UL_E312527 |
| Popular Downloads | |
| Instructions and Manuals: | 1SBC101038M6801 |
| UL Listing Card: | UL_E312527 |
| Classifications | |
| ETIM 7: | EC002498 - Accessories for low-voltage switch technology |
| ETIM 8: | EC002498 - Accessories/spare parts for low-voltage switch technology |
| WEEE Category: | 5. Small Equipment (No External Dimension More Than 50 cm) |
| WEEE B2C / B2B: | Business To Business |
| CN8: | 8538 90 99 |
| UNSPSC: | 39120000 |
| eClass: | V11.0 : 27371392 |
