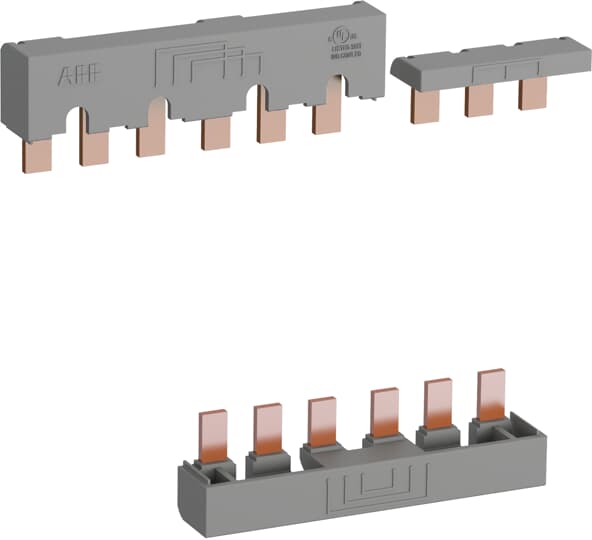

ABB BEY65-4 Connection Set for Star-Delta Starter 1SBN083413R2000
ABB BEY65-4 Connection Set for Star-Delta Starter 1SBN083413R2000
Regular price
R 495.34 ZAR
Regular price
R 927.64 ZAR
Sale price
R 495.34 ZAR
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
The BEY and BED connection sets are used to connect the main poles of the Line, Delta and Starcontactors of a star-delta starter.The connection sets are made up of:• Line contactor / delta contactor:-- BEY: upstream phase-to-phase connection-- BED: upstream connection in parallel• Delta contactor / star contactor: downstream connection in parallel• Star contactor: star point upstream• Insulated, solid copper bar.
Specifications
| Technical | |
|---|---|
| Suitable For: | AF40AF52AF65AFS40AFS52AFS65 |
| Rated Operational Voltage: | Main Circuit 690 V AC |
| Terminal Type: | Screw Terminals |
| Environmental | |
| RoHS Status: | Following EU Directive 2011/65/EU |
| Environmental Information: | 1SBD250191E1000 |
| Dimensions | |
| Product Net Width: | 110 mm |
| Product Net Height: | 40 mm |
| Product Net Depth / Length: | 20.2 mm |
| Product Net Weight: | 0.2 kg |
| Container Information | |
| Package Level 1 Units: | bag 1 piece |
| Package Level 1 Width: | 150 mm |
| Package Level 1 Height: | 20 mm |
| Package Level 1 Depth / Length: | 200 mm |
| Package Level 1 Gross Weight: | 0.21 kg |
| Package Level 1 EAN: | 3471523130968 |
| Package Level 2 Units: | box 20 piece |
| Package Level 2 Gross Weight: | 4.2 kg |
| Package Level 3 Units: | 840 piece |
| Ordering | |
| Minimum Order Quantity: | 1 piece |
| Customs Tariff Number: | 85389099 |
| E-Number (Finland): | 3707152 |
| E-Number (Sweden): | 3210219 |
| Certificates and Declarations (Document Number) | |
| Declaration of Conformity - CE: | 1SBD250021U1000 |
| Declaration of Conformity - UKCA: | 1SBD250043U1000 |
| Environmental Information: | 1SBD250191E1000 |
| Instructions and Manuals: | 1SBC101039M6801 |
| RINA Certificate: | RINA_ELE084013XG |
| RoHS Information: | 1SBD250021U1000 |
| UL Certificate: | UL_20150520-E312527_5_2 |
| UL Listing Card: | UL_E312527 |
| Popular Downloads | |
| Instructions and Manuals: | 1SBC101039M6801 |
| UL Listing Card: | UL_E312527 |
| Classifications | |
| ETIM 7: | EC002498 - Accessories for low-voltage switch technology |
| ETIM 8: | EC002498 - Accessories/spare parts for low-voltage switch technology |
| WEEE Category: | 5. Small Equipment (No External Dimension More Than 50 cm) |
| WEEE B2C / B2B: | Business To Business |
| CN8: | 8538 90 99 |
| UNSPSC: | 39120000 |
| eClass: | V11.0 : 27371392 |
