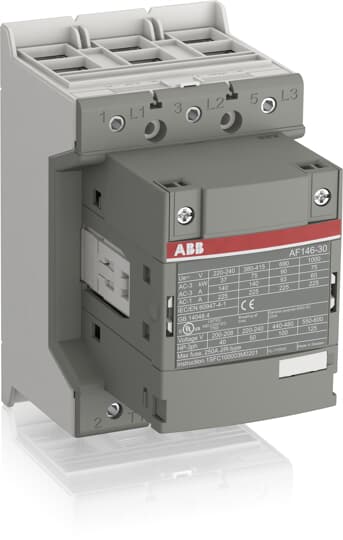

ABB AF140-30-00-14 Contactor 1SFL447001R1400
ABB AF140-30-00-14 Contactor 1SFL447001R1400
Regular price
R 4,275.91 ZAR
Regular price
R 8,007.62 ZAR
Sale price
R 4,275.91 ZAR
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
The AF140-30-00-14 is a 3 pole - 690 V IEC or 600 V UL contactor with double clamp, controlling motors up to 75 kW / 400 V AC (AC-3) or 100 hp / 480 V UL and switching power circuits up to 200 A (AC-1) or 200 A UL general use. Thanks to the AF technology, the contactor has a wide control voltage range (250-500 V 50/60 Hz and DC), managing large control voltage variations, reducing panel energy consumptions and ensuring distinct operations in unstable networks. Furthermore, surge protection is built-in, offering a compact solution. AF contactors have a block type design, can be easily extended with add-on auxiliary contact blocks and an additional wide range of accessories.
Specifications
| Ordering | |
|---|---|
| Minimum Order Quantity: | 1 piece |
| Customs Tariff Number: | 85364900 |
| Popular Downloads | |
| Data Sheet, Technical Information: | 1SBC100192C0206 |
| Instructions and Manuals: | 1SFC100003M0201 |
| Dimension Diagram: | 1SFB535001G1051 |
| Dimensions | |
| Product Net Width: | 90 mm |
| Product Net Depth / Length: | 126 mm |
| Product Net Height: | 150 mm |
| Product Net Weight: | 1.55 kg |
| Technical | |
| Number of Main Contacts NO: | 3 |
| Number of Main Contacts NC: | 0 |
| Number of Auxiliary Contacts NO: | 0 |
| Number of Auxiliary Contacts NC: | 0 |
| Rated Operational Voltage: | Main Circuit 690 V |
| Rated Frequency (f): | Main Circuit 50 / 60 Hz |
| Conventional Free-air Thermal Current (Ith): | acc. to IEC 60947-4-1, Open Contactors q = 40 °C 200 A |
| Rated Operational Current AC-1 (Ie): | (690 V) 40 °C 200 A(690 V) 70 °C 160 A |
| Rated Operational Current AC-3 (Ie): | (415 V) 55 °C 140 A(440 V) 55 °C 140 A(500 V) 55 °C 130 A(690 V) 55 °C 80 A(380 / 400 V) 55 °C 140 A(220 / 230 / 240 V) 55 °C 140 |
| Rated Operational Current AC-3e (Ie): | (415 V) 60 °C 140 A(440 V) 60 °C 140 A(500 V) 60 °C 130 A(690 V) 60 °C 80 A(380 / 400 V) 60 °C 140 A(220 / 230 / 240 V) 60 °C 140 A |
| Rated Operational Power AC-3 (Pe): | (415 V) 75 kW(440 V) 90 kW(500 V) 90 kW(690 V) 75 kW(380 / 400 V) 75 kW(220 / 230 / 240 V) 37 kW |
| Rated Operational Power AC-3e (Pe): | (415 V) 75 kW(440 V) 90 kW(500 V) 90 kW(690 V) 75 kW(380 / 400 V) 75 kW(220 / 230 / 240 V) 37 kW |
| Rated Breaking Capacity AC-3: | 8 x Ie AC-3 |
| Rated Breaking Capacity AC-3e: | 8.5 x Ie AC-3e |
| Rated Making Capacity AC-3: | 10 x Ie AC-3 |
| Rated Making Capacity AC-3e: | 12 x Ie AC-3e |
| Short-Circuit Protective Devices: | gG Type Fuses 315 A |
| Rated Short-time Withstand Current Low Voltage (Icw): | at 40 °C Ambient Temp, in Free Air, from a Cold State 10 s 1168 Aat 40 °C Ambient Temp, in Free Air, from a Cold State 15 min 200 Aat 40 °C Ambient Temp, in Free Air, from a Cold State 1 min 477 Aat 40 °C Ambient Temp, in Free Air, from a Cold State 1 s 1460 Aat 40 °C Ambient Temp, in Free Air, from a Cold State 30 s 674 A |
| Maximum Breaking Capacity: | cos phi=0.45 (cos phi=0.35 for Ie > 100 A) at 440 V 3000 Acos phi=0.45 (cos phi=0.35 for Ie > 100 A) at 690 V 1500 A |
| Maximum Electrical Switching Frequency: | (AC-1) 300 cycles per hour(AC-2 / AC-4) 150 cycles per hour(AC-3) 300 cycles per hour |
| Rated Operational Current DC-1 (Ie): | (110 V) 2 Poles in Series, 40 °C 160 A(220 V) 3 Poles in Series, 40 °C 160 A |
| Rated Operational Current DC-3 (Ie): | (110 V) 2 Poles in Series, 40 °C 160 A(220 V) 3 Poles in Series, 40 °C 160 A |
| Rated Operational Current DC-5 (Ie): | (110 V) 2 Poles in Series, 40 °C 160 A(220 V) 3 Poles in Series, 40 °C 160 A |
| Rated Insulation Voltage (Ui): | acc. to IEC 60947-4-1 and VDE 0110 (Gr. C) 1000 Vacc. to UL/CSA 600 V |
| Rated Impulse Withstand Voltage (Uimp): | Main Circuit 8 kV |
| Mechanical Durability: | 5 million |
| Maximum Mechanical Switching Frequency: | 300 cycles per hour |
| Coil Operating Limits: | (acc. to IEC 60947-4-1) 0.85 x Uc Min. ... 1.1 x Uc Max. (at θ ≤ 70 °C) |
| Rated Control Circuit Voltage (Uc): | 50 Hz 250 ... 500 V60 Hz 250 ... 500 VDC Operation 250 ... 500 V |
| Coil Consumption: | Average Pull-in Value 50 Hz 260 V·AAverage Pull-in Value 60 Hz 260 V·AHolding at Max. Rated Control Circuit Voltage 50 Hz 16.1 V·AHolding at Max. Rated Control Circuit Voltage 60 Hz 16.1 V·AHolding at Max. Rated Control Circuit Voltage DC 4 WPull-in at Max. Rated Control Circuit Voltage 50 Hz 205 V·APull-in at Max. Rated Control Circuit Voltage 60 Hz 205 V·APull-in at Max. Rated Control Circuit Voltage DC 230 W |
| Operate Time: | Between Coil De-energization and NO Contact Opening 37 ... 47 msBetween Coil Energization and NO Contact Closing 25 ... 55 ms |
| Connecting Capacity Main Circuit: | Flexible 1 x 10 ... 70 mm²Rigid Cu-Cable 2 x 10 ... 95 mm² |
| Connecting Capacity Auxiliary Circuit: | Flexible with Ferrule 2x 0.75 ... 2.5 mm²Flexible with Insulated Ferrule 1x 0.75 ... 2.5 mm²Flexible 2x0.75 ... 2.5 mm²Solid 2 x 1 ... 4 mm²Stranded 2 x 1 .... 4 mm² |
| Degree of Protection: | acc. to IEC 60529, IEC 60947-1, EN 60529 Coil Terminals IP20acc. to IEC 60529, IEC 60947-1, EN 60529 Main Terminals IP00 |
| Terminal Type: | Double Clamp |
| Technical UL/CSA | |
| NEMA Size: | 4 |
| Continuous Current Rating NEMA: | 135 A |
| Horsepower Rating NEMA: | (200 V AC) Three Phase 40 Hp(230 V AC) Three Phase 50 Hp(460 V AC) Three Phase 100 Hp(575 V AC) Three Phase 100 Hp |
| Maximum Operating Voltage UL/CSA: | Main Circuit 600 V |
| General Use Rating UL/CSA: | (600 V AC) 200 A |
| Horsepower Rating UL/CSA: | (200 V AC) Three Phase 40 hp(208 V AC) Three Phase 40 hp(220 ... 240 V AC) Three Phase 50 hp(440 ... 480 V AC) Three Phase 100 hp(550 ... 600 V AC) Three Phase 125 hp |
| Environmental | |
| Ambient Air Temperature: | Close to Contactor Fitted with Thermal O/L Relay (0.85 ... 1.1 Uc) -25 ... 50 °CClose to Contactor without Thermal O/L Relay (0.85 ... 1.1 Uc) -40 ... 70 °CClose to Contactor for Storage -40 ... +70 °C |
| Maximum Operating Altitude Permissible: | Without Derating 3000 m |
| RoHS Status: | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Certificates and Declarations (Document Number) | |
| ABS Certificate: | 14-LD1092198-PDA |
| BV Certificate: | BV_36353_A0BV |
| CB Certificate: | SEMKO_SE-70479M1 |
| CCS Certificate: | GB14T00030 |
| CQC Certificate: | CQC2013010304604055 |
| cUL Certificate: | 20120925-E36588 |
| Declaration of Conformity - CCC: | 2020980304001304 |
| Declaration of Conformity - CE: | 2CMT2015-005439 |
| Declaration of Conformity - UKCA: | 2CMT2020-006118 |
| DNV Certificate: | DNV_E-14043 |
| DNV GL Certificate: | DNV_E-14043 |
| EAC Certificate: | 9AKK107046A8618 |
| Environmental Information: | 2CMT0047321SAC200032H0002 |
| GL Certificate: | DNV_E-14043 |
| Instructions and Manuals: | 1SFC100003M0201 |
| LR Certificate: | LR_14_70011(E1) |
| PRS Certificate: | TE_2092_880423_16 |
| RINA Certificate: | ELE060313XG_002 |
| RMRS Certificate: | 9AKK107045A6978 |
| RoHS Information: | 2CMT2015-005439 |
| UL Listing Card: | UL_E36588 |
| Container Information | |
| Package Level 1 Units: | box 1 piece |
| Package Level 1 Width: | 207 mm |
| Package Level 1 Depth / Length: | 216 mm |
| Package Level 1 Height: | 150 mm |
| Package Level 1 Gross Weight: | 1.75 kg |
| Package Level 1 EAN: | 7320500477052 |
| Classifications | |
| Object Classification Code: | Q |
| ETIM 4: | EC000066 - Magnet contactor, AC-switching |
| ETIM 5: | EC000066 - Magnet contactor, AC-switching |
| ETIM 6: | EC000066 - Power contactor, AC switching |
| ETIM 7: | EC000066 - Power contactor, AC switching |
| ETIM 8: | EC000066 - Power contactor, AC switching |
| eClass: | V11.0 : 27371003 |
| UNSPSC: | 39121529 |
| IDEA Granular Category Code (IGCC): | 4755 >> Contactors |
| E-Number (Finland): | 3706194 |
