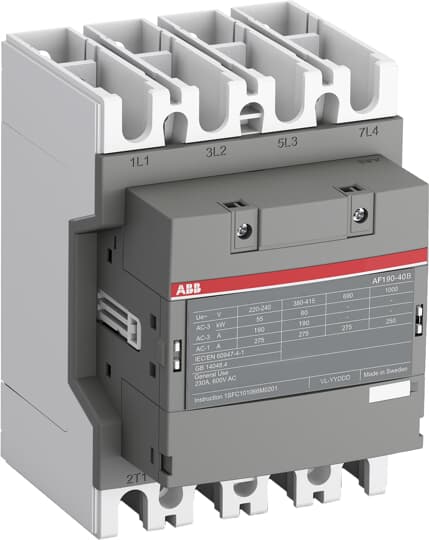

| Dimensions |
|---|
| Product Net Width: |
140 mm |
| Product Net Depth / Length: |
153 mm |
| Product Net Height: |
196 mm |
| Product Net Weight: |
3.3 kg |
| Technical |
|---|
| Number of Main Contacts NO: |
4 |
| Number of Main Contacts NC: |
0 |
| Number of Auxiliary Contacts NO: |
0 |
| Number of Auxiliary Contacts NC: |
0 |
| Rated Operational Voltage: |
Main Circuit 1000 V |
| Rated Frequency (f): |
Main Circuit 60 Hz |
| Conventional Free-air Thermal Current (Ith): |
acc. to IEC 60947-4-1, Open Contactors q = 40 ?øC 275 A |
| Rated Operational Current AC-1 (Ie): |
(1000 V) 40 ?øC 250 A(1000 V) 55 ?øC 225 A(1000 V) 60 ?øC 225 A(1000 V) 70 ?øC 185 A(690 V) 40 ?øC 275 A(690 V) 55 ?øC 250 A(690 V) 60 ?øC 250 A(690 V) 70 ?øC 200 A |
| Rated Operational Current AC-3 (Ie): |
(415 V) 55 ?øC 190 A(440 V) 55 ?øC 190 A(380 / 400 V) 55 ?øC 190 A(220 / 230 / 240 V) 55 ?øC 190 |
| Rated Operational Power AC-3 (Pe): |
(415 V) 90 kW(440 V) 110 kW(380 / 400 V) 90 kW(220 / 230 / 240 V) 55 kW |
| Rated Breaking Capacity AC-3: |
8 x Ie AC-3 |
| Rated Making Capacity AC-3: |
10 x Ie AC-3 |
| Short-Circuit Protective Devices: |
gG Type Fuses 355 A |
| Rated Short-time Withstand Current Low Voltage (Icw): |
at 40 ?øC Ambient Temp, in Free Air, from a Cold State 10 s 1520 Aat 40 ?øC Ambient Temp, in Free Air, from a Cold State 15 min 275 Aat 40 ?øC Ambient Temp, in Free Air, from a Cold State 1 min 621 Aat 40 ?øC Ambient Temp, in Free Air, from a Cold State 1 s 1900 Aat 40 ?øC Ambient Temp, in Free Air, from a Cold State 30 s 878 A |
| Maximum Breaking Capacity: |
cos phi=0.45 (cos phi=0.35 for Ie > 100 A) at 440 V 3300 A |
| Maximum Electrical Switching Frequency: |
(AC-1) 300 cycles per hour |
| Rated Insulation Voltage (Ui): |
acc. to IEC 60947-4-1 and VDE 0110 (Gr. C) 1000 Vacc. to UL/CSA 600 V |
| Rated Impulse Withstand Voltage (Uimp): |
Main Circuit 8 kV |
| Mechanical Durability: |
5 million |
| Maximum Mechanical Switching Frequency: |
300 cycles per hour |
| Coil Operating Limits: |
(acc. to IEC 60947-4-1) 0.85 x Uc Min. ... 1.1 x Uc Max. (at ’ 70 ?øC) |
| Rated Control Circuit Voltage (Uc): |
50 Hz 250 ... 500 V60 Hz 250 ... 500 VDC Operation 250 ... 500 V |
| Coil Consumption: |
Holding at Max. Rated Control Circuit Voltage 50 Hz 16.1 V?úAHolding at Max. Rated Control Circuit Voltage 60 Hz 16.1 V?úAHolding at Max. Rated Control Circuit Voltage DC 3.9 WPull-in at Max. Rated Control Circuit Voltage 50 Hz 260 V?úAPull-in at Max. Rated Control Circuit Voltage 60 Hz 260 V?úAPull-in at Max. Rated Control Circuit Voltage DC 230 W |
| Operate Time: |
Between Coil De-energization and NO Contact Opening 45 ... 80 msBetween Coil Energization and NO Contact Closing 25 ... 60 ms |
| Connecting Capacity Main Circuit: |
Flexible 2 x 50 ... 95 mm?ýRigid Al-Cable 1 x 95 ... 185 mm?ýRigid Cu-Cable 2 x 50 ... 120 mm?ý |
| Connecting Capacity Auxiliary Circuit: |
Flexible with Ferrule 1x 0.75 ... 2.5 mm?ýFlexible with Insulated Ferrule 2x 0.75 ... 2.5 mm?ýFlexible 1x0.75 ... 2.5 mm?ýSolid 2 x 1 ... 4 mm?ýStranded 1 x 1 .... 4 mm?ý |
| Degree of Protection: |
acc. to IEC 60529, IEC 60947-1, EN 60529 Coil Terminals IP20acc. to IEC 60529, IEC 60947-1, EN 60529 Main Terminals IP00 |
| Terminal Type: |
Main Circuit: Bars |
| Technical UL/CSA |
|---|
| Maximum Operating Voltage UL/CSA: |
Main Circuit 1000 V |
| General Use Rating UL/CSA: |
(600 V AC) 230 A |
| Environmental |
|---|
| Ambient Air Temperature: |
Close to Contactor Fitted with Thermal O/L Relay (0.85 ... 1.1 Uc) -25 ... 50 ?øCClose to Contactor without Thermal O/L Relay (0.85 ... 1.1 Uc) -40 ... 70 ?øCClose to Contactor for Storage -40 ... +70 ?øC |
| Maximum Operating Altitude Permissible: |
Without Derating 3000 m |
| RoHS Status: |
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
