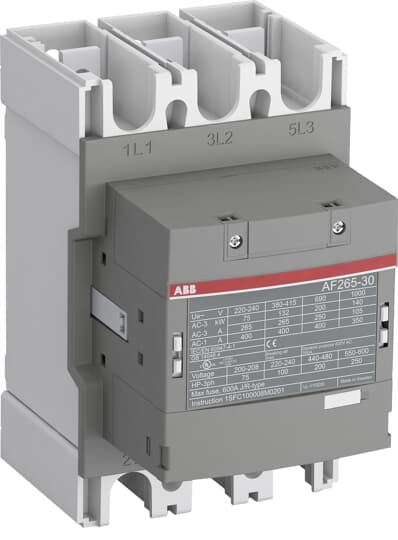

| Ordering |
|---|
| Minimum Order Quantity: |
1 piece |
| Customs Tariff Number: |
85364900 |
| Popular Downloads |
|---|
| Data Sheet, Technical Information: |
1SBC100192C0206 |
| Instructions and Manuals: |
1SFC100008M0201 |
| Dimension Diagram: |
1SFB535001G1060 |
| Dimensions |
|---|
| Product Net Width: |
140 mm |
| Product Net Depth / Length: |
180 mm |
| Product Net Height: |
225 mm |
| Product Net Weight: |
3.9 kg |
| Technical |
|---|
| Number of Main Contacts NO: |
3 |
| Number of Main Contacts NC: |
0 |
| Number of Auxiliary Contacts NO: |
0 |
| Number of Auxiliary Contacts NC: |
0 |
| Rated Operational Voltage: |
Main Circuit 1000 V |
| Rated Frequency (f): |
Main Circuit 50 / 60 Hz |
| Conventional Free-air Thermal Current (Ith): |
acc. to IEC 60947-4-1, Open Contactors q = 40 ?Ã’ƒÂ¸C 400 A |
| Rated Operational Current AC-1 (Ie): |
(1000 V) 40 ?Ã’ƒÂ¸C 350 A(1000 V) 55 ?Ã’ƒÂ¸C 300 A(1000 V) 60 ?Ã’ƒÂ¸C 300 A(1000 V) 70 ?Ã’ƒÂ¸C 240 A(690 V) 40 ?Ã’ƒÂ¸C 400 A(690 V) 55 ?Ã’ƒÂ¸C 350 A(690 V) 70 ?Ã’ƒÂ¸C 290 A |
| Rated Operational Current AC-3 (Ie): |
(415 V) 55 ?Ã’ƒÂ¸C 265 A(440 V) 55 ?Ã’ƒÂ¸C 265 A(500 V) 55 ?Ã’ƒÂ¸C 250 A(690 V) 55 ?Ã’ƒÂ¸C 250 A(1000 V) 55 ?Ã’ƒÂ¸C 113 A(380 / 400 V) 55 ?Ã’ƒÂ¸C 265 A(220 / 230 / 240 V) 55 ?Ã’ƒÂ¸C 265 |
| Rated Operational Power AC-3 (Pe): |
(415 V) 132 kW(440 V) 160 kW(500 V) 160 kW(690 V) 200 kW(1000 V) 160 kW(380 / 400 V) 132 kW(220 / 230 / 240 V) 75 kW |
| Rated Breaking Capacity AC-3: |
8 x Ie AC-3 |
| Rated Making Capacity AC-3: |
10 x Ie AC-3 |
| Short-Circuit Protective Devices: |
gG Type Fuses 500 A |
| Rated Short-time Withstand Current Low Voltage (Icw): |
at 40 ?Ã’ƒÂ¸C Ambient Temp, in Free Air, from a Cold State 10 s 2120 Aat 40 ?Ã’ƒÂ¸C Ambient Temp, in Free Air, from a Cold State 15 min 400 Aat 40 ?Ã’ƒÂ¸C Ambient Temp, in Free Air, from a Cold State 1 min 865 Aat 40 ?Ã’ƒÂ¸C Ambient Temp, in Free Air, from a Cold State 1 s 2650 Aat 40 ?Ã’ƒÂ¸C Ambient Temp, in Free Air, from a Cold State 30 s 1224 A |
| Maximum Breaking Capacity: |
cos phi=0.45 (cos phi=0.35 for Ie > 100 A) at 440 V 3800 Acos phi=0.45 (cos phi=0.35 for Ie > 100 A) at 690 V 3300 A |
| Maximum Electrical Switching Frequency: |
(AC-1) 300 cycles per hour(AC-2 / AC-4) 150 cycles per hour(AC-3) 300 cycles per hour |
| Rated Operational Current DC-1 (Ie): |
(110 V) 2 Poles in Series, 40 ?Ã’ƒÂ¸C 350 A(220 V) 3 Poles in Series, 40 ?Ã’ƒÂ¸C 350 A |
| Rated Operational Current DC-3 (Ie): |
(110 V) 2 Poles in Series, 40 ?Ã’ƒÂ¸C 350 A(220 V) 3 Poles in Series, 40 ?Ã’ƒÂ¸C 350 A |
| Rated Operational Current DC-5 (Ie): |
(110 V) 2 Poles in Series, 40 ?Ã’ƒÂ¸C 350 A(220 V) 3 Poles in Series, 40 ?Ã’ƒÂ¸C 350 A |
| Rated Insulation Voltage (Ui): |
acc. to IEC 60947-4-1 and VDE 0110 (Gr. C) 1000 Vacc. to UL/CSA 600 V |
| Rated Impulse Withstand Voltage (Uimp): |
Main Circuit 8 kV |
| Mechanical Durability: |
5 million |
| Maximum Mechanical Switching Frequency: |
300 cycles per hour |
| Coil Operating Limits: |
(acc. to IEC 60947-4-1) 0.85 x Uc Min. ... 1.1 x Uc Max. (at Ã’†â€™ 70 ?Ã’ƒÂ¸C) |
| Rated Control Circuit Voltage (Uc): |
50 Hz 250 ... 500 V60 Hz 250 ... 500 VDC Operation 250 ... 500 V |
| Coil Consumption: |
Holding at Max. Rated Control Circuit Voltage 50 Hz 20.4 V?Ã’ƒÂºAHolding at Max. Rated Control Circuit Voltage 60 Hz 20.4 V?Ã’ƒÂºAHolding at Max. Rated Control Circuit Voltage DC 4.7 WPull-in at Max. Rated Control Circuit Voltage 50 Hz 550 V?Ã’ƒÂºAPull-in at Max. Rated Control Circuit Voltage 60 Hz 550 V?Ã’ƒÂºAPull-in at Max. Rated Control Circuit Voltage DC 650 W |
| Operate Time: |
Between Coil De-energization and NO Contact Opening 37 ... 47 msBetween Coil Energization and NO Contact Closing 25 ... 55 ms |
| Connecting Capacity Main Circuit: |
Flexible 2 x 70 ... 185 mm?Ã’ƒÂ½Rigid Al-Cable 1 x 185 ... 240 mm?Ã’ƒÂ½Rigid Cu-Cable 2 x 70 ... 185 mm?Ã’ƒÂ½ |
| Connecting Capacity Auxiliary Circuit: |
Flexible with Ferrule 2x 0.75 ... 2.5 mm?Ã’ƒÂ½Flexible with Insulated Ferrule 2x 0.75 ... 2.5 mm?Ã’ƒÂ½Flexible 1x0.75 ... 2.5 mm?Ã’ƒÂ½Solid 2 x 1 ... 4 mm?Ã’ƒÂ½Stranded 1 x 1 .... 4 mm?Ã’ƒÂ½ |
| Degree of Protection: |
acc. to IEC 60529, IEC 60947-1, EN 60529 Coil Terminals IP20acc. to IEC 60529, IEC 60947-1, EN 60529 Main Terminals IP00 |
| Terminal Type: |
Main Circuit: Bars |
| Technical UL/CSA |
|---|
| NEMA Size: |
5 |
| Continuous Current Rating NEMA: |
270 A |
| Horsepower Rating NEMA: |
(200 V AC) Three Phase 75 Hp(230 V AC) Three Phase 100 Hp(460 V AC) Three Phase 200 Hp(575 V AC) Three Phase 200 Hp |
| Maximum Operating Voltage UL/CSA: |
Main Circuit 1000 V |
| General Use Rating UL/CSA: |
(600 V AC) 350 A |
| Horsepower Rating UL/CSA: |
(200 V AC) Three Phase 75 hp(208 V AC) Three Phase 75 hp(220 ... 240 V AC) Three Phase 100 hp(440 ... 480 V AC) Three Phase 200 hp(550 ... 600 V AC) Three Phase 250 hp |
| Environmental |
|---|
| Ambient Air Temperature: |
Close to Contactor Fitted with Thermal O/L Relay (0.85 ... 1.1 Uc) -25 ... 50 ?Ã’ƒÂ¸CClose to Contactor without Thermal O/L Relay (0.85 ... 1.1 Uc) -40 ... 70 ?Ã’ƒÂ¸CClose to Contactor for Storage -40 ... +70 ?Ã’ƒÂ¸C |
| Maximum Operating Altitude Permissible: |
Without Derating 3000 m |
| RoHS Status: |
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Certificates and Declarations (Document Number) |
|---|
| ABS Certificate: |
14-LD1092198-PDA |
| BV Certificate: |
BV_36353_A0BV |
| CB Certificate: |
SE-89316 |
| CCS Certificate: |
GB14T00030 |
| CQC Certificate: |
CQC2014010304676670CQC2014010304673866
|
| cUL Certificate: |
20121217-E36588 |
| Declaration of Conformity - CCC: |
20209803040013052020980304001068
|
| Declaration of Conformity - CE: |
2CMT2015-005439 |
| Declaration of Conformity - UKCA: |
2CMT2020-006118 |
| DNV Certificate: |
DNV_E-14043 |
| DNV GL Certificate: |
DNV_E-14043 |
| EAC Certificate: |
9AKK107046A8618 |
| Environmental Information: |
2CMT0047321SAC200043H0005
|
| GL Certificate: |
GL_95073-14HH |
| Instructions and Manuals: |
1SFC100008M0201 |
| LR Certificate: |
LR_14_70011(E1) |
| PRS Certificate: |
TE_2092_880423_16 |
| RINA Certificate: |
ELE060313XG_002 |
| RMRS Certificate: |
9AKK107045A6978 |
| RoHS Information: |
2CMT2015-005439 |
| UL Listing Card: |
UL_E36588 |
