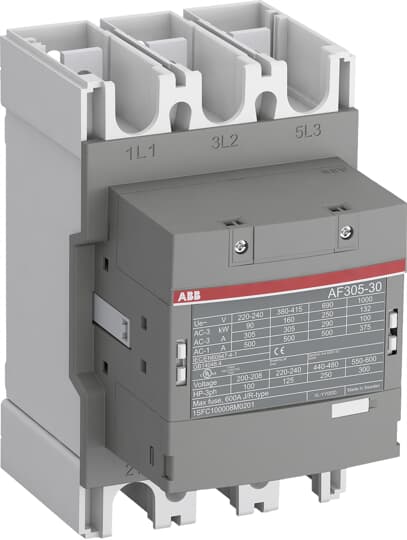

ABB AF305-30-00-12 Contactor 1SFL587002R1200
ABB AF305-30-00-12 Contactor 1SFL587002R1200
Regular price
R 13,033.65 ZAR
Regular price
R 24,408.47 ZAR
Sale price
R 13,033.65 ZAR
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
The AF305-30-00-12 is a 3 pole - 1000 V IEC or 600 V UL contactor with Main Circuit Bars, controlling motors up to 160 kW / 400 V AC (AC-3) or 250 hp / 480 V UL and switching power circuits up to 500 A (AC-1) or 400 A UL general use. Thanks to the AF technology, the contactor has a wide control voltage range (48-130 V 50/60 Hz and DC), managing large control voltage variations, reducing panel energy consumptions and ensuring distinct operations in unstable networks. Furthermore, surge protection is built-in, offering a compact solution. AF contactors have a block type design, can be easily extended with add-on auxiliary contact blocks and an additional wide range of accessories.
Specifications
| Ordering | |
|---|---|
| Minimum Order Quantity: | 1 piece |
| Customs Tariff Number: | 85364900 |
| Popular Downloads | |
| Data Sheet, Technical Information: | 1SBC100192C0206 |
| Instructions and Manuals: | 1SFC100008M0201 |
| Dimension Diagram: | 1SFB535001G1060 |
| Dimensions | |
| Product Net Width: | 140 mm |
| Product Net Depth / Length: | 180 mm |
| Product Net Height: | 225 mm |
| Product Net Weight: | 3.9 kg |
| Technical | |
| Number of Main Contacts NO: | 3 |
| Number of Main Contacts NC: | 0 |
| Number of Auxiliary Contacts NO: | 0 |
| Number of Auxiliary Contacts NC: | 0 |
| Rated Operational Voltage: | Main Circuit 1000 V |
| Rated Frequency (f): | Main Circuit 50 / 60 Hz |
| Conventional Free-air Thermal Current (Ith): | acc. to IEC 60947-4-1, Open Contactors q = 40 °C 500 A |
| Rated Operational Current AC-1 (Ie): | (1000 V) 40 °C 375 A(1000 V) 55 °C 325 A(1000 V) 60 °C 325 A(1000 V) 70 °C 260 A(690 V) 40 °C 500 A(690 V) 55 °C 400 A(690 V) 70 °C 325 A |
| Rated Operational Current AC-3 (Ie): | (415 V) 55 °C 305 A(440 V) 55 °C 305 A(500 V) 55 °C 290 A(690 V) 55 °C 290 A(1000 V) 55 °C 131 A(380 / 400 V) 55 °C 305 A(220 / 230 / 240 V) 55 °C 305 |
| Rated Operational Power AC-3 (Pe): | (415 V) 160 kW(440 V) 160 kW(500 V) 200 kW(690 V) 250 kW(1000 V) 185 kW(380 / 400 V) 160 kW(220 / 230 / 240 V) 90 kW |
| Rated Breaking Capacity AC-3: | 8 x Ie AC-3 |
| Rated Making Capacity AC-3: | 10 x Ie AC-3 |
| Short-Circuit Protective Devices: | gG Type Fuses 500 A |
| Rated Short-time Withstand Current Low Voltage (Icw): | at 40 °C Ambient Temp, in Free Air, from a Cold State 10 s 2440 Aat 40 °C Ambient Temp, in Free Air, from a Cold State 15 min 500 Aat 40 °C Ambient Temp, in Free Air, from a Cold State 1 min 996 Aat 40 °C Ambient Temp, in Free Air, from a Cold State 1 s 3050 Aat 40 °C Ambient Temp, in Free Air, from a Cold State 30 s 1409 A |
| Maximum Breaking Capacity: | cos phi=0.45 (cos phi=0.35 for Ie > 100 A) at 440 V 4600 Acos phi=0.45 (cos phi=0.35 for Ie > 100 A) at 690 V 3800 A |
| Maximum Electrical Switching Frequency: | (AC-1) 300 cycles per hour(AC-2 / AC-4) 150 cycles per hour(AC-3) 300 cycles per hour |
| Rated Operational Current DC-1 (Ie): | (110 V) 1-Pole, 40 °C 500 A(220 V) 2 Poles in Series, 40 °C 500 A(220 V) 3 Poles in Series, 40 °C 500 A |
| Rated Operational Current DC-3 (Ie): | (110 V) 2 Poles in Series, 40 °C 400 A(220 V) 3 Poles in Series, 40 °C 400 A |
| Rated Operational Current DC-5 (Ie): | (110 V) 2 Poles in Series, 40 °C 400 A(220 V) 3 Poles in Series, 40 °C 400 A |
| Rated Insulation Voltage (Ui): | acc. to IEC 60947-4-1 and VDE 0110 (Gr. C) 1000 Vacc. to UL/CSA 600 V |
| Rated Impulse Withstand Voltage (Uimp): | Main Circuit 8 kV |
| Mechanical Durability: | 5 million |
| Maximum Mechanical Switching Frequency: | 300 cycles per hour |
| Coil Operating Limits: | (acc. to IEC 60947-4-1) 0.85 x Uc Min. ... 1.1 x Uc Max. (at θ ≤ 70 °C) |
| Rated Control Circuit Voltage (Uc): | 50 Hz 48 ... 130 V60 Hz 48 ... 130 VDC Operation 48 ... 130 V |
| Coil Consumption: | Holding at Max. Rated Control Circuit Voltage 50 Hz 17 V·AHolding at Max. Rated Control Circuit Voltage 60 Hz 17 V·AHolding at Max. Rated Control Circuit Voltage DC 2.5 WPull-in at Max. Rated Control Circuit Voltage 50 Hz 340 V·APull-in at Max. Rated Control Circuit Voltage 60 Hz 340 V·APull-in at Max. Rated Control Circuit Voltage DC 360 W |
| Operate Time: | Between Coil De-energization and NO Contact Opening 37 ... 47 msBetween Coil Energization and NO Contact Closing 25 ... 55 ms |
| Connecting Capacity Main Circuit: | Flexible 2 x 70 ... 185 mm²Rigid Al-Cable 1 x 185 ... 240 mm²Rigid Cu-Cable 2 x 70 ... 185 mm² |
| Connecting Capacity Auxiliary Circuit: | Flexible with Ferrule 2x 0.75 ... 2.5 mm²Flexible with Insulated Ferrule 2x 0.75 ... 2.5 mm²Flexible 1x0.75 ... 2.5 mm²Solid 2 x 1 ... 4 mm²Stranded 1 x 1 .... 4 mm² |
| Degree of Protection: | acc. to IEC 60529, IEC 60947-1, EN 60529 Coil Terminals IP20acc. to IEC 60529, IEC 60947-1, EN 60529 Main Terminals IP00 |
| Terminal Type: | Main Circuit: Bars |
| Technical UL/CSA | |
| Maximum Operating Voltage UL/CSA: | Main Circuit 1000 V |
| General Use Rating UL/CSA: | (600 V AC) 400 A |
| Horsepower Rating UL/CSA: | (200 V AC) Three Phase 100 hp(208 V AC) Three Phase 100 hp(220 ... 240 V AC) Three Phase 125 hp(440 ... 480 V AC) Three Phase 250 hp(550 ... 600 V AC) Three Phase 300 hp |
| Environmental | |
| Ambient Air Temperature: | Close to Contactor Fitted with Thermal O/L Relay (0.85 ... 1.1 Uc) -25 ... 50 °CClose to Contactor without Thermal O/L Relay (0.85 ... 1.1 Uc) -40 ... 70 °CClose to Contactor for Storage -40 ... +70 °C |
| Maximum Operating Altitude Permissible: | Without Derating 3000 m |
| RoHS Status: | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Certificates and Declarations (Document Number) | |
| ABS Certificate: | 14-LD1092198-PDA |
| BV Certificate: | BV_36353_A0BV |
| CB Certificate: | SE-89316 |
| CCS Certificate: | GB14T00030 |
| CQC Certificate: | CQC2014010304676670CQC2014010304673866 |
| cUL Certificate: | 20121217-E36588 |
| Declaration of Conformity - CCC: | 20209803040013052020980304001068 |
| Declaration of Conformity - CE: | 2CMT2015-005439 |
| Declaration of Conformity - UKCA: | 2CMT2020-006118 |
| DNV Certificate: | DNV_E-14043 |
| DNV GL Certificate: | DNV_E-14043 |
| EAC Certificate: | 9AKK107046A8618 |
| Environmental Information: | 2CMT0047321SAC200043H0005 |
| GL Certificate: | GL_95073-14HH |
| Instructions and Manuals: | 1SFC100008M0201 |
| LR Certificate: | LR_14_70011(E1) |
| PRS Certificate: | TE_2092_880423_16 |
| RINA Certificate: | ELE060313XG_002 |
| RMRS Certificate: | 9AKK107045A6978 |
| RoHS Information: | 2CMT2015-005439 |
| UL Listing Card: | UL_E36588 |
| Container Information | |
| Package Level 1 Units: | box 1 piece |
| Package Level 1 Width: | 263 mm |
| Package Level 1 Depth / Length: | 203 mm |
| Package Level 1 Height: | 289 mm |
| Package Level 1 Gross Weight: | 4.6 kg |
| Package Level 1 EAN: | 7320500481738 |
| Classifications | |
| Object Classification Code: | Q |
| ETIM 4: | EC000066 - Magnet contactor, AC-switching |
| ETIM 5: | EC000066 - Magnet contactor, AC-switching |
| ETIM 6: | EC000066 - Power contactor, AC switching |
| ETIM 7: | EC000066 - Power contactor, AC switching |
| ETIM 8: | EC000066 - Power contactor, AC switching |
| eClass: | V11.0 : 27371003 |
| UNSPSC: | 39121529 |
| IDEA Granular Category Code (IGCC): | 4755 >> Contactors |
| E-Number (Finland): | 3706482 |
| E-Number (Norway): | 3210158 |
| E-Number (Sweden): | 3210158 |
