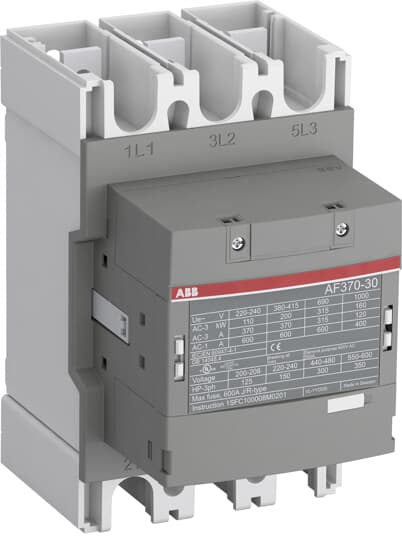

| Ordering |
|---|
| Minimum Order Quantity: |
1 piece |
| Customs Tariff Number: |
85364900 |
| Popular Downloads |
|---|
| Data Sheet, Technical Information: |
1SBC100192C0206 |
| Instructions and Manuals: |
1SFC100008M0201 |
| Dimension Diagram: |
1SFB535001G1060 |
| Dimensions |
|---|
| Product Net Width: |
140 mm |
| Product Net Depth / Length: |
180 mm |
| Product Net Height: |
225 mm |
| Product Net Weight: |
3.9 kg |
| Technical |
|---|
| Number of Main Contacts NO: |
3 |
| Number of Main Contacts NC: |
0 |
| Number of Auxiliary Contacts NO: |
0 |
| Number of Auxiliary Contacts NC: |
0 |
| Rated Operational Voltage: |
Main Circuit 1000 V |
| Rated Frequency (f): |
Main Circuit 50 / 60 Hz |
| Conventional Free-air Thermal Current (Ith): |
acc. to IEC 60947-4-1, Open Contactors q = 40 ?øC 600 A |
| Rated Operational Current AC-1 (Ie): |
(1000 V) 40 ?øC 400 A(1000 V) 55 ?øC 350 A(1000 V) 60 ?øC 350 A(1000 V) 70 ?øC 290 A(690 V) 40 ?øC 600 A(690 V) 55 ?øC 500 A(690 V) 70 ?øC 400 A |
| Rated Operational Current AC-3 (Ie): |
(415 V) 55 ?øC 370 A(440 V) 55 ?øC 370 A(500 V) 55 ?øC 350 A(690 V) 55 ?øC 315 A(1000 V) 55 ?øC 141 A(380 / 400 V) 55 ?øC 370 A(220 / 230 / 240 V) 55 ?øC 370 |
| Rated Operational Power AC-3 (Pe): |
(415 V) 200 kW(440 V) 200 kW(500 V) 250 kW(690 V) 315 kW(1000 V) 200 kW(380 / 400 V) 200 kW(220 / 230 / 240 V) 110 kW |
| Rated Breaking Capacity AC-3: |
8 x Ie AC-3 |
| Rated Making Capacity AC-3: |
10 x Ie AC-3 |
| Short-Circuit Protective Devices: |
gG Type Fuses 630 A |
| Rated Short-time Withstand Current Low Voltage (Icw): |
at 40 ?øC Ambient Temp, in Free Air, from a Cold State 10 s 2960 Aat 40 ?øC Ambient Temp, in Free Air, from a Cold State 15 min 600 Aat 40 ?øC Ambient Temp, in Free Air, from a Cold State 1 min 1208 Aat 40 ?øC Ambient Temp, in Free Air, from a Cold State 1 s 3700 Aat 40 ?øC Ambient Temp, in Free Air, from a Cold State 30 s 1709 A |
| Maximum Breaking Capacity: |
cos phi=0.45 (cos phi=0.35 for Ie > 100 A) at 440 V 5000 Acos phi=0.45 (cos phi=0.35 for Ie > 100 A) at 690 V 4000 A |
| Maximum Electrical Switching Frequency: |
(AC-1) 300 cycles per hour(AC-2 / AC-4) 150 cycles per hour(AC-3) 300 cycles per hour |
| Rated Operational Current DC-1 (Ie): |
(110 V) 2 Poles in Series, 40 ?øC 450 A(220 V) 3 Poles in Series, 40 ?øC 450 A |
| Rated Operational Current DC-3 (Ie): |
(110 V) 2 Poles in Series, 40 ?øC 450 A(220 V) 3 Poles in Series, 40 ?øC 450 A |
| Rated Operational Current DC-5 (Ie): |
(110 V) 2 Poles in Series, 40 ?øC 450 A(220 V) 3 Poles in Series, 40 ?øC 450 A |
| Rated Insulation Voltage (Ui): |
acc. to IEC 60947-4-1 and VDE 0110 (Gr. C) 1000 Vacc. to UL/CSA 600 V |
| Rated Impulse Withstand Voltage (Uimp): |
Main Circuit 8 kV |
| Mechanical Durability: |
5 million |
| Maximum Mechanical Switching Frequency: |
300 cycles per hour |
| Coil Operating Limits: |
(acc. to IEC 60947-4-1) 0.85 x Uc Min. ... 1.1 x Uc Max. (at ’ 70 ?øC) |
| Rated Control Circuit Voltage (Uc): |
50 Hz 100 ... 250 V60 Hz 100 ... 250 VDC Operation 100 ... 250 V |
| Coil Consumption: |
Holding at Max. Rated Control Circuit Voltage 50 Hz 17.5 V?úAHolding at Max. Rated Control Circuit Voltage 60 Hz 17.5 V?úAHolding at Max. Rated Control Circuit Voltage DC 4.5 WPull-in at Max. Rated Control Circuit Voltage 50 Hz 385 V?úAPull-in at Max. Rated Control Circuit Voltage 60 Hz 385 V?úAPull-in at Max. Rated Control Circuit Voltage DC 410 W |
| Operate Time: |
Between Coil De-energization and NO Contact Opening 37 ... 47 msBetween Coil Energization and NO Contact Closing 25 ... 55 ms |
| Connecting Capacity Main Circuit: |
Flexible 2 x 70 ... 185 mm?ýRigid Al-Cable 1 x 185 ... 240 mm?ýRigid Cu-Cable 1 x 6 ... 300 mm?ý |
| Connecting Capacity Auxiliary Circuit: |
Flexible with Ferrule 1x 0.75 ... 2.5 mm?ýFlexible with Insulated Ferrule 1x 0.75 ... 2.5 mm?ýFlexible 2x0.75 ... 2.5 mm?ýSolid 2 x 1 ... 4 mm?ýStranded 2 x 1 .... 4 mm?ý |
| Degree of Protection: |
acc. to IEC 60529, IEC 60947-1, EN 60529 Coil Terminals IP20acc. to IEC 60529, IEC 60947-1, EN 60529 Main Terminals IP00 |
| Terminal Type: |
Main Circuit: Bars |
| Technical UL/CSA |
|---|
| Maximum Operating Voltage UL/CSA: |
Main Circuit 1000 V |
| General Use Rating UL/CSA: |
(600 V AC) 520 A |
| Horsepower Rating UL/CSA: |
(200 V AC) Three Phase 125 hp(208 V AC) Three Phase 125 hp(220 ... 240 V AC) Three Phase 150 hp(440 ... 480 V AC) Three Phase 300 hp(550 ... 600 V AC) Three Phase 350 hp |
| Environmental |
|---|
| Ambient Air Temperature: |
Close to Contactor Fitted with Thermal O/L Relay (0.85 ... 1.1 Uc) -25 ... 50 ?øCClose to Contactor without Thermal O/L Relay (0.85 ... 1.1 Uc) -40 ... 70 ?øCClose to Contactor for Storage -40 ... +70 ?øC |
| Maximum Operating Altitude Permissible: |
Without Derating 3000 m |
| RoHS Status: |
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
