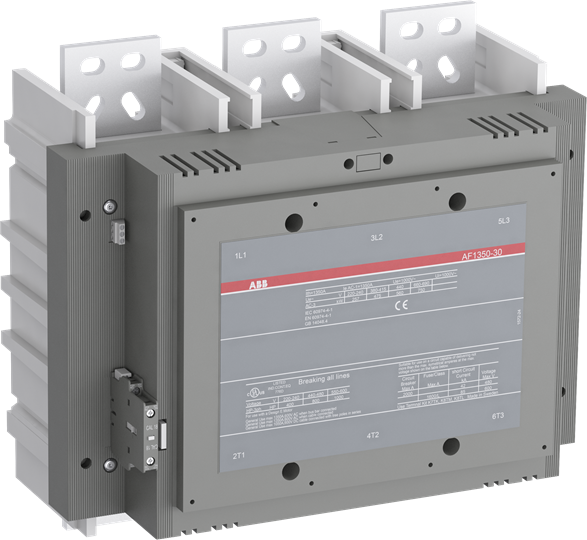

ABB AF1350-30-11 100-250V 50/60Hz / 100-250V DC Contactor 1SFL657001R7011

The AF1350-30-11-70 is a 3 pole - 1000 V IEC or 1000 V UL contactor with pre-mounted auxiliary contacts and Main Circuit Bars, controlling motors up to 475 kW / 400 V AC (AC-3) or 800 hp / 480 V UL and switching power circuits up to 1350 A (AC-1) or 1350 A UL general use. Thanks to the AF technology, the contactor has a wide control voltage range (100-250 V 50/60 Hz and DC), managing large control voltage variations, reducing panel energy consumptions and ensuring distinct operations in unstable networks. Furthermore, surge protection is built-in, offering a compact solution. AF contactors have a block type design, can be easily extended with add-on auxiliary contact blocks and an additional wide range of accessories.

Specifications

Ordering
Minimum Order Quantity:	1 piece
Customs Tariff Number:	85364900
Popular Downloads
Data Sheet, Technical Information:	1SBC100192C0206
Instructions and Manuals:	1SFC101002M5501
Dimension Diagram:	53540930-7
Dimensions
Product Net Width:	438 mm
Product Net Depth / Length:	244 mm
Product Net Height:	392 mm
Product Net Weight:	32 kg
Technical
Number of Main Contacts NO:	3
Number of Main Contacts NC:	0
Number of Auxiliary Contacts NO:	1
Number of Auxiliary Contacts NC:	1
Rated Operational Voltage:	Main Circuit 1000 V
Rated Frequency (f):	Main Circuit 50 / 60 Hz
Conventional Free-air Thermal Current (Ith):	acc. to IEC 60947-4-1, Open Contactors q = 40 °C 1350 A
Rated Operational Current AC-1 (Ie):	(1000 V) 40 °C 1350 A(1000 V) 55 °C 1150 A(1000 V) 70 °C 1000 A(690 V) 40 °C 1350 A(690 V) 55 °C 1150 A(690 V) 70 °C 1000 A
Rated Operational Current AC-3 (Ie):	(415 V) 55 °C 860 A(440 V) 55 °C 860 A(500 V) 55 °C 800 A(690 V) 55 °C 800 A(1000 V) 55 °C 375 A(380 / 400 V) 55 °C 860 A(220 / 230 / 240 V) 55 °C 860
Rated Operational Power AC-3 (Pe):	(415 V) 500 kW(440 V) 560 kW(500 V) 560 kW(690 V) 800 kW(1000 V) 560 kW(380 / 400 V) 475 kW(220 / 230 / 240 V) 257 kW
Rated Making Capacity AC-3:	10 x Ie AC-3
Rated Short-time Withstand Current Low Voltage (Icw):	at 40 °C Ambient Temp, in Free Air, from a Cold State 10 s 8000 Aat 40 °C Ambient Temp, in Free Air, from a Cold State 15 min 1600 Aat 40 °C Ambient Temp, in Free Air, from a Cold State 1 min 4500 Aat 40 °C Ambient Temp, in Free Air, from a Cold State 1 s 10000 Aat 40 °C Ambient Temp, in Free Air, from a Cold State 30 s 6000 A
Maximum Breaking Capacity:	cos phi=0.45 (cos phi=0.35 for Ie > 100 A) at 440 V 10000 A
Maximum Electrical Switching Frequency:	(AC-1) 60 cycles per hour(AC-2 / AC-4) 60 cycles per hour(AC-3) 60 cycles per hour
Rated Operational Current DC-1 (Ie):	(220 V) 3 Poles in Series, 40 °C 1350 A(600 V) 3 Poles in Series, 40 °C 1350 A(850 V) 3 Poles in Series, 40 °C 1350 A
Rated Operational Current DC-3 (Ie):	(220 V) 3 Poles in Series, 40 °C 1350 A(600 V) 3 Poles in Series, 40 °C 1350 A(850 V) 3 Poles in Series, 40 °C 1350 A
Rated Operational Current DC-5 (Ie):	(220 V) 3 Poles in Series, 40 °C 1350 A(600 V) 3 Poles in Series, 40 °C 1350 A(850 V) 3 Poles in Series, 40 °C 1350 A
Rated Insulation Voltage (Ui):	acc. to IEC 60947-4-1 and VDE 0110 (Gr. C) 1000 Vacc. to UL/CSA 1000 V
Rated Impulse Withstand Voltage (Uimp):	Main Circuit 8 kV
Mechanical Durability:	0.5 million
Maximum Mechanical Switching Frequency:	300 cycles per hour
Coil Operating Limits:	(acc. to IEC 60947-4-1) 0.85 x Uc Min. ... 1.1 x Uc Max. (at θ ≤ 70 °C)
Rated Control Circuit Voltage (Uc):	50 Hz 100 ... 250 V60 Hz 100 ... 250 VDC Operation 100 ... 250 V
Coil Consumption:	Holding at Max. Rated Control Circuit Voltage 50 Hz 48 V·AHolding at Max. Rated Control Circuit Voltage 60 Hz 48 V·AHolding at Max. Rated Control Circuit Voltage DC 20.5 V·APull-in at Max. Rated Control Circuit Voltage 50 Hz 2450 V·APull-in at Max. Rated Control Circuit Voltage 60 Hz 2450 V·APull-in at Max. Rated Control Circuit Voltage DC 2290 V·A
Operate Time:	Between Coil De-energization and NC Contact Closing 35 ... 55 msBetween Coil De-energization and NO Contact Opening 35 ... 55 msBetween Coil Energization and NC Contact Opening 50 ... 80 msBetween Coil Energization and NO Contact Closing 50 ... 80 ms
Connecting Capacity Main Circuit:	Bar 100 mm²
Connecting Capacity Auxiliary Circuit:	Flexible with Ferrule 1x 0.75 ... 2.5 mm²Flexible with Insulated Ferrule 1x 0.75 ... 2.5 mm²Flexible 2x0.75 ... 2.5 mm²Solid 2 x 1 ... 4 mm²Stranded 1 x 1 .... 4 mm²
Degree of Protection:	acc. to IEC 60529, IEC 60947-1, EN 60529 Coil Terminals IP20acc. to IEC 60529, IEC 60947-1, EN 60529 Main Terminals IP00
Terminal Type:	Main Circuit: Bars
Technical UL/CSA
Maximum Operating Voltage UL/CSA:	Main Circuit 1000 V
General Use Rating UL/CSA:	(1000 V AC) 1350 A(600 V AC) 1350 A
Horsepower Rating UL/CSA:	(220 ... 240 V AC) Three Phase 400 hp(440 ... 480 V AC) Three Phase 800 hp(550 ... 600 V AC) Three Phase 1000 hp
Environmental
Ambient Air Temperature:	Close to Contactor Fitted with Thermal O/L Relay (0.85 ... 1.1 Uc) -25 ... 50 °CClose to Contactor without Thermal O/L Relay (0.85 ... 1.1 Uc) -40 ... 70 °CClose to Contactor for Storage -40 ... +70 °C
Maximum Operating Altitude Permissible:	Without Derating 3000 m
RoHS Status:	Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Certificates and Declarations (Document Number)
ABS Certificate:	15-LD1408622-PDA
BV Certificate:	BV_13409-C0BV
CB Certificate:	SEMKO_SE-74013
CCS Certificate:	GB14T00030
CQC Certificate:	CQC2003010304101933CQC2015010304752548
cUL Certificate:	UL_20130904-E73397
Declaration of Conformity - CCC:	20209803040013032020980304001043
Declaration of Conformity - CE:	2CMT2019-005796
Declaration of Conformity - UKCA:	2CMT2020-006118
DNV GL Certificate:	TAE00001W1
EAC Certificate:	9AKK107046A8618
Environmental Information:	1SFC101014D02011SAC200046H0008
GL Certificate:	GL_20263-04HH
Instructions and Manuals:	1SFC101002M5501
LOVAG Certificate:	SE-202726
LR Certificate:	16-20064
PRS Certificate:	TE_2092_880423_16
RINA Certificate:	ELE060313XG_002
RMRS Certificate:	9AKK107045A6978
RoHS Information:	2CMT2019-005796
UL Listing Card:	UL_E73397
Container Information
Package Level 1 Units:	box 1 piece
Package Level 1 Width:	555 mm
Package Level 1 Depth / Length:	365 mm
Package Level 1 Height:	500 mm
Package Level 1 Gross Weight:	34 kg
Package Level 1 EAN:	7320500250143
Package Level 2 Units:	1 piece
Classifications
Object Classification Code:	Q
ETIM 4:	EC000066 - Magnet contactor, AC-switching
ETIM 5:	EC000066 - Magnet contactor, AC-switching
ETIM 6:	EC000066 - Power contactor, AC switching
ETIM 7:	EC000066 - Power contactor, AC switching
ETIM 8:	EC000066 - Power contactor, AC switching
eClass:	V11.0 : 27371003
UNSPSC:	39121529
IDEA Granular Category Code (IGCC):	4755 >> Contactors
E-Number (Finland):	3709257
E-Number (Norway):	4115388
E-Number (Sweden):	4115388
