ABB

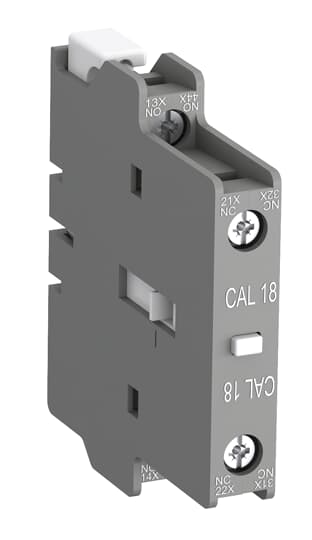

ABB CAL18-11B Auxiliary Contact Block 1SFN010720R3311
ABB CAL18-11B Auxiliary Contact Block 1SFN010720R3311
Regular price
R 161.93 ZAR
Regular price
R 303.24 ZAR
Sale price
R 161.93 ZAR
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
2 pole screw type side mounted auxilliary contact block fitted outside CAL18-11, instantaneous N.O. and N.C. contacts, suitable for standard industrial environments
Specifications
| Technical | |
|---|---|
| Suitable For: | AF400AF460AF580AF750AF1250AF1350AF1650AF2050AF2650AF2850A145A185A210A260A300AF145AF185AF210AF260AF300 |
| Suitable for Product Class: | Block Contactors |
| Rated Operational Voltage: | Auxiliary Circuit 24 ... 690 V |
| Power Loss: | at Rated Operating Conditions per Pole 0.15 W |
| Number of Auxiliary Contacts NC: | 1 |
| Number of Auxiliary Contacts NO: | 1 |
| Tightening Torque: | Auxiliary Circuit 1 N·m |
| Recommended Screw Driver: | Auxiliary Circuit 1 x 5.5Auxiliary Circuit Pozidriv 2 |
| Wire Stripping Length: | Auxiliary Circuit 9 mm |
| Terminal Type: | Screw Terminals |
| Environmental | |
| Degree of Protection: | IP20 |
| RoHS Status: | Following EU Directive 2011/65/EU |
| Dimensions | |
| Product Net Width: | 64.5 mm |
| Product Net Height: | 74 mm |
| Product Net Depth / Length: | 17.1 mm |
| Product Net Weight: | 0.04 kg |
| Container Information | |
| Package Level 1 Units: | bag 1 piece |
| Package Level 1 Width: | 64.5 mm |
| Package Level 1 Height: | 34.2 mm |
| Package Level 1 Depth / Length: | 74 mm |
| Package Level 1 Gross Weight: | 0.05 kg |
| Package Level 1 EAN: | 7320500256312 |
| Ordering | |
| Minimum Order Quantity: | 2 piece |
| Customs Tariff Number: | 85369010 |
| E-Number (Finland): | 3709264 |
| E-Number (Norway): | 4116023 |
| E-Number (Sweden): | 3228822 |
| Certificates and Declarations (Document Number) | |
| CB Certificate: | SE-85989 |
| CQC Certificate: | CQC2003010304088244CQC2009010304365509 |
| cUL Certificate: | 20120925-E36588 |
| Declaration of Conformity - CCC: | 20209803040013072020980304001060 |
| Declaration of Conformity - CE: | 2CMT2015-005448 |
| Declaration of Conformity - UKCA: | 2CMT2020-006119 |
| Instructions and Manuals: | 1SFC101009M5501 |
| RoHS Information: | 2CMT2015-005448 |
| Popular Downloads | |
| Data Sheet, Technical Information: | 1SBC100122C0202 |
| Instructions and Manuals: | 1SFC101009M5501 |
| Classifications | |
| ETIM 7: | EC000041 - Auxiliary contact block |
| ETIM 8: | EC000041 - Auxiliary contact block |
| EPLAN Catalog Tree: | Electrical engineering / Relays, contactors / Auxiliary block |
| WEEE Category: | 5. Small Equipment (No External Dimension More Than 50 cm) |
| WEEE B2C / B2B: | Business To Business |
| CN8: | 8536 90 10 |
| UNSPSC: | 39121529 |
| Object Classification Code: | K |
