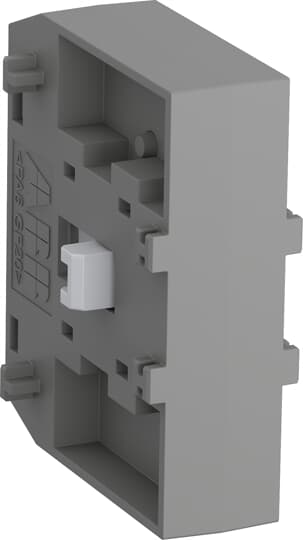

ABB VM19 Mechanical Interlock Unit 1SFN030300R1000

Mechanical interlock for use with contactors AF116…AF370. For interlocking two contactors of equal frame size

Specifications

Technical
Fire and Smoke Standards:	EN 45545 (Hazard levels HL2, HL3)
Suitable For:	AF116AF140AF146AF190AF205AF265AF305AF370AF116BAF140BAF146BAF190BAF205BAF265BAF305BAF370BAX260AX300AX370
Suitable for Product Class:	Block Contactors
Terminal Type:	Screw Terminals
Environmental
RoHS Status:	Following EU Directive 2011/65/EU
Environmental Information:	2CMT004732
Dimensions
Product Net Width:	70 mm
Product Net Height:	58.7 mm
Product Net Depth / Length:	31.9 mm
Product Net Weight:	0.05 kg
Container Information
Package Level 1 Units:	bag 1 piece
Package Level 1 Width:	70 mm
Package Level 1 Height:	31.9 mm
Package Level 1 Depth / Length:	58.7 mm
Package Level 1 Gross Weight:	0.07 kg
Package Level 1 EAN:	7320500492574
Ordering
Minimum Order Quantity:	1 piece
Customs Tariff Number:	85389099
E-Number (Finland):	3707469
E-Number (Norway):	4117833
E-Number (Sweden):	3210176
Certificates and Declarations (Document Number)
cUL Certificate:	20120925-E36588
cULus Certificate:	20180302-E36588
Declaration of Conformity - CE:	2CMT004895
Declaration of Conformity - UKCA:	2CMT2020-006120
Environmental Information:	2CMT004732
Instructions and Manuals:	N/A
RoHS Information:	2CMT004895
Popular Downloads
Data Sheet, Technical Information:	1SBC100173C0201
Instructions and Manuals:	N/A
Classifications
ETIM 7:	EC001044 - Mechanic interlock for switch
ETIM 8:	EC001044 - Mechanic interlock for switch
EPLAN Catalog Tree:	Electrical engineering / Connections / General
WEEE Category:	Product Not in WEEE Scope
WEEE B2C / B2B:	Business To Business
CN8:	8538 90 99
UNSPSC:	39121529
eClass:	V11.0 : 27371003
Object Classification Code:	R
