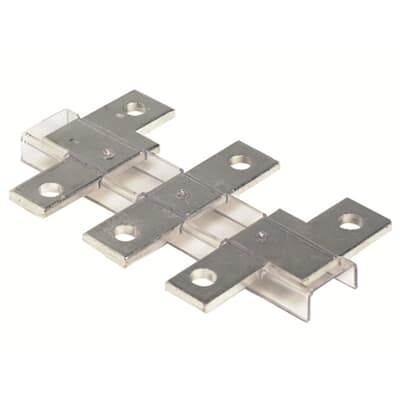

ABB LW1250 Terminal Enlargement 1SFN076407R1000

3 pole enlargement kit designed to increase the width of the contactor terminals to allow for larger connectors to be mounted

Specifications

Technical
Suitable For:	AF1250
Suitable for Product Class:	Block Contactors
Terminal Type:	Screw Terminals
Environmental
RoHS Status:	Following EU Directive 2011/65/EU
Environmental Information:	1SFC101009D0201
Dimensions
Product Net Width:	53.8 mm
Product Net Height:	126 mm
Product Net Depth / Length:	10 mm
Product Net Weight:	1.95 kg
Container Information
Package Level 1 Units:	bag 1 piece
Package Level 1 Width:	75 mm
Package Level 1 Height:	30 mm
Package Level 1 Depth / Length:	126 mm
Package Level 1 Gross Weight:	2 kg
Package Level 1 EAN:	7320500356265
Ordering
Minimum Order Quantity:	1 piece
Customs Tariff Number:	85389099
E-Number (Finland):	3709326
E-Number (Norway):	4120563
E-Number (Sweden):	4120563
Certificates and Declarations (Document Number)
cUL Certificate:	UL_20130930-E73397
Declaration of Conformity - CE:	2CMT005309
Declaration of Conformity - UKCA:	2CMT2020-006120
Environmental Information:	1SFC101009D0201
Instructions and Manuals:	N/A
RoHS Information:	2CMT2016-005489
Popular Downloads
Data Sheet, Technical Information:	1SBC100122C0202
Instructions and Manuals:	N/A
Classifications
ETIM 7:	EC002498 - Accessories for low-voltage switch technology
ETIM 8:	EC002498 - Accessories/spare parts for low-voltage switch technology
EPLAN Catalog Tree:	Electrical engineering / Terminals / General
WEEE Category:	5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B:	Business To Business
CN8:	8538 90 99
Object Classification Code:	X
