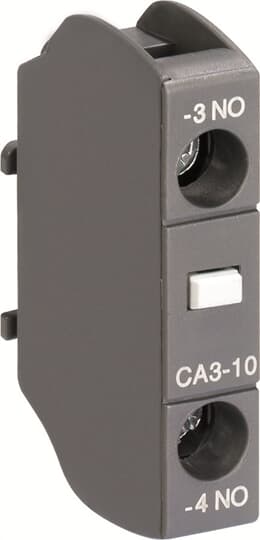

ABB CA3-10 Auxiliary Contact Block 1SBN011010T1010
ABB CA3-10 Auxiliary Contact Block 1SBN011010T1010
Regular price
R 27.96 ZAR
Regular price
R 52.36 ZAR
Sale price
R 27.96 ZAR
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
CA3-10 Auxiliary Contact Block
Specifications
| Technical | |
|---|---|
| Suitable For: | AS09AS12AS16ASL09ASL12ASL16VAS09VAS12VAS16VASL09VASL12VASL16NSNSL |
| Rated Operational Voltage: | Auxiliary Circuit 690 VMain Circuit 690 V |
| Rated Insulation Voltage (Ui): | acc. to IEC 60947-5-1 and VDE 0110 (Gr. C) 690 Vacc. to UL/CSA 600 V |
| Rated Operational Current AC-15 (Ie): | (500 V) NC 2(500 V) 2 A(690 V) 2 A(24 / 127 V) 6 A(220 / 240 V) 4 A(400 / 440 V) 3 A |
| Rated Short-time Withstand Current Low Voltage (Icw): | for 0.1 s 140 Afor 1 s 100 A |
| Rated Frequency (f): | Auxiliary Circuit 50 / 60 Hz |
| Number of Auxiliary Contacts NC: | 0 |
| Number of Auxiliary Contacts NO: | 1 |
| Low Coil Consumption: | No |
| Tightening Torque: | Auxiliary Circuit 1 N·m |
| Wire Stripping Length: | Auxiliary Circuit 9 mm |
| Terminal Type: | Screw Terminals |
| Environmental | |
| Degree of Protection: | acc. to IEC 60529, IEC 60947-1, EN 60529 Auxiliary Terminals IP20 |
| RoHS Status: | Following EU Directive 2011/65/EU |
| Environmental Information: | 1SBD250133E1001 |
| Technical UL/CSA | |
| Tightening Torque UL/CSA: | Auxiliary Circuit 9 in·lb |
| Dimensions | |
| Product Net Width: | 44.2 mm |
| Product Net Height: | 33.5 mm |
| Product Net Depth / Length: | 9.5 mm |
| Product Net Weight: | 0.011 kg |
| Container Information | |
| Package Level 1 Units: | 10 piece |
| Package Level 1 Width: | 130 mm |
| Package Level 1 Height: | 64 mm |
| Package Level 1 Depth / Length: | 45 mm |
| Package Level 1 Gross Weight: | 0.11 kg |
| Package Level 1 EAN: | 3471523095007 |
| Package Level 2 Units: | 400 piece |
| Package Level 2 Width: | 270 mm |
| Package Level 2 Height: | 220 mm |
| Package Level 2 Depth / Length: | 360 mm |
| Package Level 2 Gross Weight: | 4.6 kg |
| Ordering | |
| Minimum Order Quantity: | 10 piece |
| Customs Tariff Number: | 85389099 |
| E-Number (Sweden): | 3210519 |
| Certificates and Declarations (Document Number) | |
| CB Certificate: | CB_CN_32922 |
| CCC Certificate: | CCC_2007010305252103 |
| CQC Certificate: | CQC2007010305252103 |
| Declaration of Conformity - CCC: | 2020980305001186 |
| Declaration of Conformity - CE: | 1SBD250017U1000 |
| Declaration of Conformity - UKCA: | 1SBD250052U1000 |
| Environmental Information: | 1SBD250133E1001 |
| GOST Certificate: | GOST_POCCCNME77B07822.pdf |
| Instructions and Manuals: | 1SBC101020M9701 |
| RoHS Information: | 1SBD251004E1001 |
| UL Certificate: | UL_220108-E312527A |
| UL Listing Card: | NOA_E312527.pdf |
| Popular Downloads | |
| Instructions and Manuals: | 1SBC101020M9701 |
| UL Listing Card: | NOA_E312527.pdf |
| Classifications | |
| ETIM 7: | EC000041 - Auxiliary contact block |
| ETIM 8: | EC000041 - Auxiliary contact block |
| WEEE Category: | 5. Small Equipment (No External Dimension More Than 50 cm) |
| WEEE B2C / B2B: | Business To Business |
| CN8: | 8538 90 99 |
| UNSPSC: | 39121522 |
| IDEA Granular Category Code (IGCC): | 4743 >> Auxiliary contact block |
| Object Classification Code: | K |
