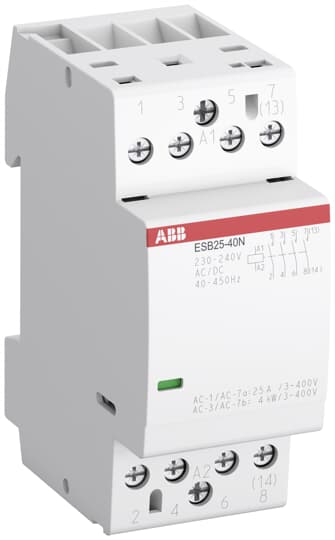

ABB ESB25-31N-01 Installation Contactor 1SAE231111R0131
ABB ESB25-31N-01 Installation Contactor 1SAE231111R0131
Regular price
R 365.59 ZAR
Regular price
R 684.64 ZAR
Sale price
R 365.59 ZAR
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
The ESB25..N installation contactors are used to control single and three-phase loads up to 25 A and can be operated by AC or DC. These contactors are made for use in household applications as well as in industrial environments.The following benefits are provided: Hum-free operation, low power consumption and integrated overvoltage protection. Various contact combinations and accessories are available.
Specifications
| Ordering | |
|---|---|
| Package Level 1 EAN: | 4013614523960 |
| Minimum Order Quantity: | 1 piece |
| Customs Tariff Number: | 85365080 |
| Popular Downloads | |
| Instructions and Manuals: | 2CDC103043M6801 |
| Dimensions | |
| Product Net Width: | 36 mm |
| Product Net Height: | 85 mm |
| Product Net Depth / Length: | 65 mm |
| Product Net Weight: | 0.245 kg |
| Technical | |
| Rated Operational Voltage: | Main Circuit 220 V DCMain Circuit 400 V AC |
| Rated Control Circuit Voltage (Uc): | 24 V |
| Rated Frequency (f): | Control Circuit 400 HzControl Circuit 50 HzControl Circuit 60 HzControl Circuit DCMain Circuit 50 HzMain Circuit 60 HzMain Circuit DC |
| Rated Operational Current AC-1 (Ie): | (NC) 25 A(NO) 25 A |
| Rated Operational Current AC-3 (Ie): | (230 V) Single Phase, NC 6 A(230 V) Single Phase, NO 9 A(400 V) Three Phase, NO 9 A |
| Rated Operational Power AC-1 (Pe): | (230 V) Single Phase, NC 5.8 kW(230 V) Single Phase, NO 5.8 kW(400 V) Three Phase, NO 17.3 kW |
| Rated Operational Power AC-3 (Pe): | (230 V) Single Phase, NC 1.3 kW(230 V) Single Phase, NO 1.3 kW(400 V) Three Phase, NO 4 kW |
| Rated Operational Current AC-7a (Ie): | (NC) 25 A(NO) 25 A |
| Rated Operational Power AC-7a (Pe): | (230 V) Single Phase, NC 5.8 kW(230 V) Single Phase, NO 5.8 kW(400 V) Three Phase, NO 17.3 kW |
| Rated Operational Current AC-7b (Ie): | (230 V) Single Phase, NC 6 A(230 V) Single Phase, NO 9 A(400 V) Three Phase, NO 9 A |
| Rated Operational Power AC-7b (Pe): | (230 V) Single Phase, NC 0.9 kW(230 V) Single Phase, NO 1.3 kW(400 V) Three Phase, NO 4 kW |
| Recommended Screw Driver: | Control Circuit Pozidriv 1Main Circuit Pozidriv 1 |
| Rated Impulse Withstand Voltage (Uimp): | 6 kV |
| Rated Insulation Voltage (Ui): | 500 V |
| Connecting Capacity Main Circuit: | Flexible with Ferrule 1x 1.5 ... 10 mm²Flexible with Ferrule 2x 1.5 ... 2.5 mm²Flexible with Insulated Ferrule 1x 1.5 ... 10 mm²Flexible with Insulated Ferrule 2x 1.5 mm²Flexible 1x 1.5 ... 10 mm²Flexible 2x 1.5 ... 4 mm²Rigid 1x 1.5 ... 10 mm²Rigid 2x 1.5 ... 4 mm² |
| Connecting Capacity Control Circuit: | Flexible with Ferrule 1x 1 ... 2.5 mm²Flexible with Ferrule 2x 0.75 ... 1 mm²Flexible with Insulated Ferrule 1x 1 ... 2.5 mm²Flexible with Insulated Ferrule 2x 0.75 ... 1 mm²Flexible 1x 1 ... 4.0 mm²Flexible 2x 1 ... 2.5 mm²Rigid 1x 1 ... 4 mm²Rigid 2x 1 ... 2.5 mm² |
| Tightening Torque: | Control Circuit 0.9 N·mMain Circuit 1 N·m |
| Wire Stripping Length: | Control Circuit 7 mmMain Circuit 10 mm |
| Degree of Protection: | IP20 |
| Electrical Durability: | AC-1 (NO) 130000 cycleAC-3 (NO) 500000 cycleAC-7a (NO) 130000 cycleAC-7b (NO) 500000 cycle |
| Mechanical Durability: | 1000000 cycle |
| Number of Poles: | 4 |
| Number of Auxiliary Contacts NC: | 0 |
| Number of Auxiliary Contacts NO: | 0 |
| Number of Main Contacts NC: | 1 |
| Number of Main Contacts NO: | 3 |
| Width in Number of Modular Spacings: | 2 |
| Pollution Degree: | 3 |
| Standards: | IEC/EN 60947-1IEC/EN 60947-4-1IEC/EN 61095UL 60947-1UL 60947-4-1 |
| Technical UL/CSA | |
| Maximum Operating Voltage UL/CSA: | Main Circuit 480 V AC |
| Horsepower Rating UL/CSA: | (220 ... 240 V AC) Single Phase, NC 1 Hp(220 ... 240 V AC) Single Phase, NO 1 Hp(220 ... 240 V AC) Three Phase, NO 3 Hp(440 ... 480 V AC) Single Phase, NC 2 Hp(440 ... 480 V AC) Single Phase, NO 2 Hp(440 ... 480 V AC) Three Phase, NO 5 Hp |
| Connecting Capacity Main Circuit UL/CSA: | Solid 16-8 AWGStranded 16-8 AWG |
| Connecting Capacity Control Circuit UL/CSA: | Solid 16-10 AWGStranded 16-10 AWG |
| Tightening Torque UL/CSA: | Control Circuit 8 in·lbMain Circuit 9 in·lb |
| Environmental | |
| Ambient Air Temperature: | Operation -25 ... +55 °CStorage -40 ... +80 °C |
| Maximum Operating Altitude Permissible: | 2000 m |
| Resistance to Shock acc. to IEC 60068-2-27: | 11 ms Pulse 15g |
| RoHS Status: | Following EU Directive 2011/65/EU |
| Certificates and Declarations (Document Number) | |
| ABS Certificate: | 1SAA920000-0101 |
| CB Certificate: | 1SAA920004-2001 |
| CQC Certificate: | CQC2017010304993564CQC2017010304993565 |
| cULus Certificate: | cUL_E191658 |
| Declaration of Conformity - CCC: | 20209803040013122020980304001314 |
| Declaration of Conformity - CE: | 1SAD938506-0302 |
| Declaration of Conformity - UKCA: | 1SAD938501-1302 |
| DNV Certificate: | 1SAA920000-0306 |
| EAC Certificate: | 1SAA920001-2702 |
| Environmental Information: | 1SAC200063H0009 |
| Instructions and Manuals: | 2CDC103043M6801 |
| RINA Certificate: | 1SAA920000-0801 |
| RMRS Certificate: | 1SAA920000-0705 |
| RoHS Information: | 1SAD938506-0302 |
| Container Information | |
| Package Level 1 Units: | 1 piece |
| Package Level 1 Width: | 92 mm |
| Package Level 1 Height: | 69.5 mm |
| Package Level 1 Depth / Length: | 39 mm |
| Package Level 1 Gross Weight: | 0.245 kg |
| Package Level 1 EAN: | 4013614523960 |
| Package Level 2 Units: | 48 piece |
| Package Level 2 Width: | 280 mm |
| Package Level 2 Height: | 210 mm |
| Package Level 2 Depth / Length: | 395 mm |
| Package Level 2 Gross Weight: | 12.3 kg |
| Package Level 2 EAN: | 4013614538360 |
| Classifications | |
| Object Classification Code: | Q |
| ETIM 5: | EC001653 - Installation contactor for distribution board |
| ETIM 6: | EC001653 - Installation contactor for distribution board |
| ETIM 7: | EC001653 - Installation contactor for distribution board |
| eClass: | V11.0 : 27142308 |
| UNSPSC: | 39121529 |
| IDEA Granular Category Code (IGCC): | 4759 >> Installation contactor for distribution board |
| E-Number (Finland): | 3707576 |
| E-Number (Sweden): | 3210566 |
| ETIM 8: | EC001653 - Installation contactor for distribution board |
