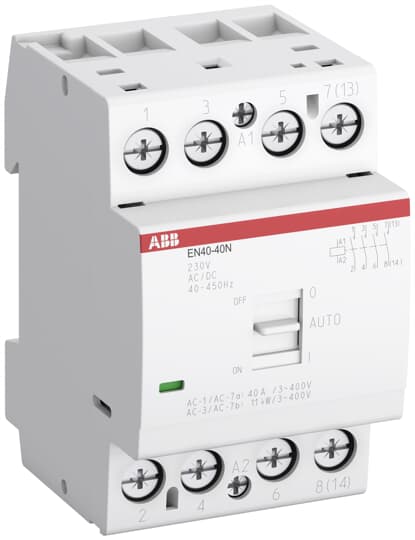

| Ordering |
| Package Level 1 EAN: |
4013614525117 |
| Minimum Order Quantity: |
1 piece |
| Customs Tariff Number: |
85365080 |
| Popular Downloads |
| Instructions and Manuals: |
2CDC103043M6801 |
| Dimensions |
| Product Net Width: |
54 mm |
| Product Net Height: |
85 mm |
| Product Net Depth / Length: |
65 mm |
| Product Net Weight: |
0.375 kg |
| Technical |
| Rated Operational Voltage: |
Main Circuit 220 V DCMain Circuit 400 V AC |
| Rated Control Circuit Voltage (Uc): |
230 V |
| Rated Frequency (f): |
Control Circuit 400 HzControl Circuit 50 HzControl Circuit 60 HzControl Circuit DCMain Circuit 50 HzMain Circuit 60 HzMain Circuit DC |
| Rated Operational Current AC-1 (Ie): |
(NO) 40 A |
| Rated Operational Current AC-3 (Ie): |
(230 V) Single Phase, NO 22 A |
| Rated Operational Power AC-1 (Pe): |
(230 V) Single Phase, NO 9.2 kW |
| Rated Operational Power AC-3 (Pe): |
(230 V) Single Phase, NO 3.7 kW |
| Rated Operational Current AC-7a (Ie): |
(NO) 40 A |
| Rated Operational Power AC-7a (Pe): |
(230 V) Single Phase, NO 9.2 kW |
| Rated Operational Current AC-7b (Ie): |
(230 V) Single Phase, NO 22 A |
| Rated Operational Power AC-7b (Pe): |
(230 V) Single Phase, NO 3.7 kW |
| Recommended Screw Driver: |
Control Circuit Pozidriv 1Main Circuit Pozidriv 2 |
| Rated Impulse Withstand Voltage (Uimp): |
4 kV |
| Rated Insulation Voltage (Ui): |
500 V |
| Connecting Capacity Main Circuit: |
Flexible with Ferrule 1x 1.5 ... 16 mm?ýFlexible with Ferrule 2x 1.5 ... 10 mm?ýFlexible with Insulated Ferrule 1x 1.5 ... 16 mm?ýFlexible with Insulated Ferrule 2x 1.5 ... 10 mm?ýFlexible 1x 1.5 ... 16 mm?ýFlexible 2x 1.5 ... 10 mm?ýRigid 1x 1.5 ... 25 mm?ýRigid 2x 1.5 ... 10 mm?ý |
| Connecting Capacity Control Circuit: |
Flexible with Ferrule 1x 1 ... 2.5 mm?ýFlexible with Ferrule 2x 0.75 ... 1.5 mm?ýFlexible with Insulated Ferrule 1x 1 ... 2.5 mm?ýFlexible with Insulated Ferrule 2x 0.75 ... 1 mm?ýFlexible 1x 1 ... 2.5 mm?ýFlexible 2x 1 ... 1.5 mm?ýRigid 1x 1 ... 4 mm?ýRigid 2x 1 ... 2.5 mm?ý |
| Tightening Torque: |
Control Circuit 0.9 N?úmMain Circuit 2.5 N?úm |
| Wire Stripping Length: |
Control Circuit 7 mmMain Circuit 13 mm |
| Degree of Protection: |
IP20 |
| Electrical Durability: |
AC-1 (NO) 150000 cycleAC-3 (NO) 150000 cycleAC-7a (NO) 150000 cycleAC-7b (NO) 150000 cycle |
| Mechanical Durability: |
1000000 cycle |
| Number of Poles: |
2 |
| Number of Auxiliary Contacts NC: |
0 |
| Number of Auxiliary Contacts NO: |
0 |
| Number of Main Contacts NC: |
0 |
| Number of Main Contacts NO: |
2 |
| Width in Number of Modular Spacings: |
3 |
| Pollution Degree: |
3 |
| Standards: |
IEC/EN 60947-1IEC/EN 60947-4-1IEC/EN 61095UL 60947-1UL 60947-4-1 |
| Environmental |
| Ambient Air Temperature: |
Operation -25 ... +55 ?øCStorage -40 ... +80 ?øC |
| Maximum Operating Altitude Permissible: |
2000 m |
| Resistance to Shock acc. to IEC 60068-2-27: |
11 ms Pulse 15g |
| RoHS Status: |
Following EU Directive 2011/65/EU |
| Certificates and Declarations (Document Number) |
| CB Certificate: |
1SAA920005-2001 |
| CQC Certificate: |
CQC2017010304993562 |
| Declaration of Conformity - CCC: |
2020980304001310 |
| Declaration of Conformity - CE: |
1SAD938506-0302 |
| Declaration of Conformity - UKCA: |
1SAD938501-1302 |
| EAC Certificate: |
1SAA920001-2702 |
| Environmental Information: |
1SAC200064H0009 |
| Instructions and Manuals: |
2CDC103043M6801 |
| RMRS Certificate: |
1SAA920000-0705 |
| RoHS Information: |
1SAD938506-0302 |
| Container Information |
| Package Level 1 Units: |
1 piece |
| Package Level 1 Width: |
92 mm |
| Package Level 1 Height: |
69.5 mm |
| Package Level 1 Depth / Length: |
57 mm |
| Package Level 1 Gross Weight: |
0.375 kg |
| Package Level 1 EAN: |
4013614525117 |
| Package Level 2 Units: |
34 piece |
| Package Level 2 Width: |
280 mm |
| Package Level 2 Height: |
210 mm |
| Package Level 2 Depth / Length: |
395 mm |
| Package Level 2 Gross Weight: |
13.3 kg |
| Package Level 2 EAN: |
4013614539510 |
| Classifications |
| Object Classification Code: |
Q |
| ETIM 5: |
EC001653 - Installation contactor for distribution board |
| ETIM 6: |
EC001653 - Installation contactor for distribution board |
| ETIM 7: |
EC001653 - Installation contactor for distribution board |
| eClass: |
V11.0 : 27142308 |
| UNSPSC: |
39121529 |
| IDEA Granular Category Code (IGCC): |
4759 >> Installation contactor for distribution board |
| E-Number (Finland): |
3707815 |
| ETIM 8: |
EC001653 - Installation contactor for distribution board |
