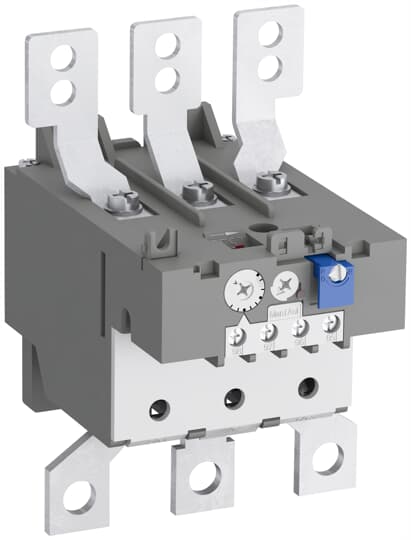

ABB TA200DU-90 Thermal Overload Relay 1SAZ421201R1001
ABB TA200DU-90 Thermal Overload Relay 1SAZ421201R1001
Regular price
R 1,539.18 ZAR
Regular price
R 2,882.47 ZAR
Sale price
R 1,539.18 ZAR
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
The TA200DU-90 thermal overload relay is an economic electromechanical protection device for the main circuit. It offers reliable and fast protection for motors in the event of overload or phase failure. The device has trip class 10A. Further features are the temperature compensation, trip contact (NC), signal contact (NO), automatic- or manual reset selectable, trip-free mechanism, STOP- and Test function and a trip indication. The overload relays are connected directly to the block contactors. Single mounting kits are available as accessory.
Specifications
| Ordering | |
|---|---|
| Popular Downloads | |
| Minimum Order Quantity: | 1 piece |
| Customs Tariff Number: | 85364900 |
| Dimensions | |
| Data Sheet, Technical Information: | 1SBC100214C0202 |
| Instructions and Manuals: | 2CDC106028M6802 |
| Time-Current Characteristic Curve: | 1SAZ400502F0001 |
| Dimension Diagram: | 1SAZ400401F0001 |
| Technical | |
| Product Net Width: | 104 mm |
| Product Net Height: | 151 mm |
| Product Net Depth / Length: | 126 mm |
| Product Net Weight: | 0.755 kg |
| Technical UL/CSA | |
| Setting Range: | 66 ... 90 A |
| Rated Operational Voltage: | Auxiliary Circuit 440 V DCAuxiliary Circuit 500 V ACMain Circuit 690 V ACMain Circuit 440 V DC |
| Rated Operational Current (Ie): | 90 A |
| Rated Frequency (f): | Auxiliary Circuit 50 HzAuxiliary Circuit 60 HzAuxiliary Circuit DCMain Circuit 60 HzMain Circuit 50 HzMain Circuit DC |
| Rated Impulse Withstand Voltage (Uimp): | Auxiliary Circuit 6 kVMain Circuit 6 kV |
| Rated Insulation Voltage (Ui): | 690 V |
| Number of Poles: | 3 |
| Number of Auxiliary Contacts NC: | 1 |
| Number of Auxiliary Contacts NO: | 1 |
| Number of Protected Poles: | 3 |
| Conventional Free-air Thermal Current (Ith): | Auxiliary Circuit NC 5 AAuxiliary Circuit NO 5 A |
| Rated Operational Current AC-15 (Ie): | (120 V) NC 3 A(120 V) NO 1.5 A(240 V) NC 3 A(240 V) NO 1.5 A(400 V) NC 1.9 A(400 V) NO 1 A(440 V) NC 1 A(440 V) NO 1 A(500 V) NC 1 A(500 V) NO 1 A |
| Rated Operational Current DC-13 (Ie): | (125 V) NC 0.25 A(125 V) NO 0.25 A(24 V) NC 1.25 A(24 V) NO 1.25 A(250 V) NC 0.12 A(250 V) NO 0.04 A(60 V) NC 0.25 A(60 V) NO 0.25 A |
| Degree of Protection: | Housing IP20Main Circuit Terminals IP00 |
| Pollution Degree: | 3 |
| Connecting Capacity Auxiliary Circuit: | Flexible with Ferrule 1/2x 0.75 ... 2.5 mm²Flexible 1/2x 0.75 ... 2.5 mm²Rigid 1/2x 0.75 ... 4 mm² |
| Connecting Capacity Main Circuit: | Hole Diameter > 10 mm²Rigid or Flexible with Cable Lug 1x 25 ... 120 mm² |
| Tightening Torque: | Auxiliary Circuit 1 ... 1.3 N·mMain Circuit 25 N·m |
| Wire Stripping Length: | Auxiliary Circuit 9 mm |
| Recommended Screw Driver: | Auxiliary Circuit Pozidriv 1Main Circuit Open Bars |
| Mounting Position: | 1 ... 6 |
| Power Loss: | at Rated Operating Conditions per Pole 2.4 ... 4.5 W |
| Suitable For: | A145A185AF145AF185AF190AF205 |
| Standards: | IEC/EN 60947-1IEC/EN 60947-4-1IEC/EN 60947-5-1UL 60947-1UL 60947-4-1 |
| Environmental | |
| Maximum Operating Voltage UL/CSA: | Main Circuit 600 V AC |
| Ampere Rating UL/CSA: | 90 A |
| Contact Rating UL/CSA: | (NC:) B600(NO:) C600 |
| Connecting Capacity Main Circuit UL/CSA: | Flexible 1x 4-0000 AWGStranded 1x 4-0000 AWG |
| Connecting Capacity Auxiliary Circuit UL/CSA: | Flexible 1/2x 18-14 AWGStranded 1/2x 18-14 AWG |
| Tightening Torque UL/CSA: | Auxiliary Circuit 12 in·lbMain Circuit 220 in·lb |
| Certificates and Declarations (Document Number) | |
| Ambient Air Temperature: | |
| Ambient Air Temperature Compensation: | |
| Maximum Operating Altitude Permissible: | |
| Resistance to Shock acc. to IEC 60068-2-27: | |
| RoHS Status: | |
| Container Information | |
| ABS Certificate: | 1SAA941000-0102 |
| BV Certificate: | 1SAA941000-0201 |
| CB Certificate: | 1SAA941004-2003 |
| CQC Certificate: | CQC2016010309922936 |
| Declaration of Conformity - CCC: | 2020980304001321 |
| Declaration of Conformity - CE: | 1SAD938518-0043 |
| Declaration of Conformity - UKCA: | 1SAD938501-1043 |
| DNV Certificate: | 1SAA941000-0304 |
| DNV GL Certificate: | 1SAA941000-0304 |
| EAC Certificate: | 1SAA941002-2702 |
| Environmental Information: | 1SAC200056H0009 |
| GL Certificate: | 1SAA941000-0304 |
| Instructions and Manuals: | 2CDC106028M6802 |
| LR Certificate: | 1SAA941000-0504 |
| RMRS Certificate: | 1SAA941000-0704 |
| RoHS Information: | 1SAD938518-0043 |
| Time-Current Characteristic Curve: | 1SAZ400502F0001 |
| UL Certificate: | E48139-19910930 |
| Classifications | |
| Package Level 1 Units: | 1 piece |
| Package Level 1 Width: | 165 mm |
| Package Level 1 Height: | 133 mm |
| Package Level 1 Depth / Length: | 151 mm |
| Package Level 1 Gross Weight: | 1.005 kg |
| Package Level 1 EAN: | 4013614285868 |
| Package Level 2 Units: | 4 piece |
| Package Level 2 Width: | 280 mm |
| Package Level 2 Height: | 210 mm |
| Package Level 2 Depth / Length: | 395 mm |
| Package Level 2 Gross Weight: | 8.786 kg |
| Package Level 2 EAN: | 4013614494239 |
