ABB AF12Z-30-01-21 24-60V50/60HZ 20-60VDC Contactor 1SBL156001R2201

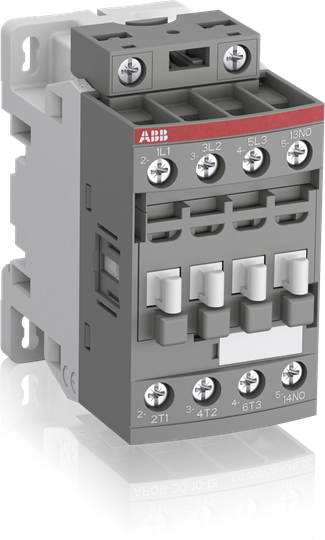

The AF12Z-30-01-22 is a 3 pole - 690 V IEC or 600 UL contactor with 1 built-in auxiliary contact and screw terminals, controlling motors up to 5.5 kW / 400 V AC (AC-3) or 7-1/2 hp / 480 V UL and switching power circuits up to 28 A (AC-1) or 28 A UL general use. Thanks to the AF technology, the contactor has a wide control voltage range (48-130 V 50/60 Hz and DC), managing large control voltage variations, reducing panel energy consumptions and ensuring distinct operations in unstable networks. Furthermore, surge protection is built-in, offering a compact solution. AF contactors have a block type design, can be easily extended with add-on auxiliary contact blocks and an additional wide range of accessories.

Specifications

Ordering
Minimum Order Quantity:	1 piece
Customs Tariff Number:	85364900
Popular Downloads
Instructions and Manuals:	1SBC101027M6801
Dimension Diagram:	DNV_TAE00001AF-4
Dimensions
Product Net Width:	45 mm
Product Net Depth / Length:	77 mm
Product Net Height:	86 mm
Product Net Weight:	0.31 kg
Technical
Number of Main Contacts NO:	3
Number of Main Contacts NC:	0
Number of Auxiliary Contacts NO:	0
Number of Auxiliary Contacts NC:	1
Standards:	IEC 60947-1 / 60947-4-1 and EN 60947-1 / 60947-4-1, UL 508, CSA C22.2 N°14
Rated Operational Voltage:	Auxiliary Circuit 690 VMain Circuit 690 V
Rated Frequency (f):	Auxiliary Circuit 50 / 60 HzMain Circuit 50 / 60 Hz
Conventional Free-air Thermal Current (Ith):	acc. to IEC 60947-4-1, Open Contactors q = 40 °C 35 Aacc. to IEC 60947-5-1, q = 40 °C 16 A
Rated Operational Current AC-1 (Ie):	(690 V) 40 °C 28 A(690 V) 60 °C 28 A(690 V) 70 °C 24 A
Rated Operational Current AC-3 (Ie):	(415 V) 60 °C 12 A(440 V) 60 °C 12 A(500 V) 60 °C 12.5 A(690 V) 60 °C 9 A(380 / 400 V) 60 °C 12 A(220 / 230 / 240 V) 60 °C 12 A
Rated Operational Current AC-3e (Ie):	(415 V) 60 °C 12 A(440 V) 60 °C 12 A(500 V) 60 °C 12.5 A(690 V) 60 °C 9 A(380 / 400 V) 60 °C 12 A(220 / 230 / 240 V) 60 °C 12 A
Rated Operational Power AC-3 (Pe):	(400 V) 5.5 kW(415 V) 5.5 kW(440 V) 5.5 kW(500 V) 7.5 kW(690 V) 7.5 kW(380 / 400 V) 5.5 kW(220 / 230 / 240 V) 3 kW
Rated Operational Power AC-3e (Pe):	(415 V) 5.5 kW(440 V) 5.5 kW(500 V) 7.5 kW(690 V) 7.5 kW(380 / 400 V) 5.5 kW(220 / 230 / 240 V) 3 kW
Rated Operational Current AC-15 (Ie):	(500 V) 2 A(690 V) 2 A(24 / 127 V) 6 A(220 / 240 V) 4 A(400 / 440 V) 3 A
Rated Short-time Withstand Current Low Voltage (Icw):	at 40 °C Ambient Temp, in Free Air, from a Cold State 10 s 150 Aat 40 °C Ambient Temp, in Free Air, from a Cold State 15 min 35 Aat 40 °C Ambient Temp, in Free Air, from a Cold State 1 min 60 Aat 40 °C Ambient Temp, in Free Air, from a Cold State 1 s 300 Aat 40 °C Ambient Temp, in Free Air, from a Cold State 30 s 80 Afor 0.1 s 140 Afor 1 s 100 A
Maximum Breaking Capacity:	cos phi=0.45 (cos phi=0.35 for Ie > 100 A) at 440 V 250 Acos phi=0.45 (cos phi=0.35 for Ie > 100 A) at 690 V 106 A
Maximum Electrical Switching Frequency:	(AC-1) 600 cycles per hour(AC-15) 1200 cycles per hour(AC-2 / AC-4) 300 cycles per hour(AC-3) 1200 cycles per hour(DC-13) 900 cycles per hour
Rated Operational Current DC-13 (Ie):	(24 V) 6 A / 144 W(48 V) 2.8 A / 134 W(72 V) 1 A / 72 W(110 V) 0.55 A / 60 W(125 V) 0.55 A / 69 W(220 V) 0.27 A / 60 W(250 V) 0.27 A / 68 W(400 V) 0.15 A / 60 W(500 V) 0.13 A / 65 W(600 V) 0.1 A / 60 W
Rated Insulation Voltage (Ui):	acc. to IEC 60947-4-1 and VDE 0110 (Gr. C) 690 Vacc. to UL/CSA 600 V
Rated Impulse Withstand Voltage (Uimp):	6 kV
Maximum Mechanical Switching Frequency:	3600 cycles per hour
Rated Control Circuit Voltage (Uc):	50 Hz 48 ... 130 V60 Hz 48 ... 130 VDC Operation 48 ... 130 V
Operate Time:	Between Coil De-energization and NC Contact Closing 13 ... 98 msBetween Coil De-energization and NO Contact Opening 11 ... 95 msBetween Coil Energization and NC Contact Opening 38 ... 90 msBetween Coil Energization and NO Contact Closing 40 ... 95 ms
Mounting on DIN Rail:	TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715
Mounting by Screws (not supplied):	2 x M4 screws placed diagonally
Connecting Capacity Main Circuit:	Flexible with Ferrule 1/2x 0.75 ... 6 mm²Flexible with Insulated Ferrule 1x 0.75 ... 4 mm²Flexible with Insulated Ferrule 2x 0.75 ... 2.5 mm²Rigid 1/2x 1 ... 6 mm²
Connecting Capacity Auxiliary Circuit:	Flexible with Ferrule 1/2x 0.75 ... 2.5 mm²Flexible with Insulated Ferrule 2x 0.75 ... 1.5 mm²Flexible with Insulated Ferrule 1x 0.75 ... 2.5 mm²Rigid 1/2x 1 ... 2.5 mm²
Connecting Capacity Control Circuit:	Flexible with Ferrule 1/2x 0.75 ... 2.5 mm²Flexible with Insulated Ferrule 1x 0.75 ... 2.5 mm²Flexible with Insulated Ferrule 2x 0.75 ... 1.5 mm²Rigid 1/2x 1 ... 2.5 mm²
Wire Stripping Length:	Auxiliary Circuit 10 mmControl Circuit 10 mmMain Circuit 10 mm
Degree of Protection:	acc. to IEC 60529, IEC 60947-1, EN 60529 Auxiliary Terminals IP20acc. to IEC 60529, IEC 60947-1, EN 60529 Coil Terminals IP20acc. to IEC 60529, IEC 60947-1, EN 60529 Main Terminals IP20
Terminal Type:	Screw Terminals
Technical UL/CSA
NEMA Size:	0
Continuous Current Rating NEMA:	18 A
Horsepower Rating NEMA:	(115 V AC) Single Phase 1 Hp(200 V AC) Three Phase 3 Hp(230 V AC) Single Phase 2 Hp(230 V AC) Three Phase 3 Hp(460 V AC) Three Phase 5 Hp(575 V AC) Three Phase 5 Hp
General Use Rating UL/CSA:	(600 V AC) 28 A
Horsepower Rating UL/CSA:	(120 V AC) Single Phase 1 hp(200 ... 208 V AC) Three Phase 3 hp(220 ... 240 V AC) Three Phase 3 hp(240 V AC) Single Phase 2 hp(440 ... 480 V AC) Three Phase 7-1/2 hp(550 ... 600 V AC) Three Phase 10 hp
Tightening Torque UL/CSA:	Auxiliary Circuit 11 in·lbControl Circuit 11 in·lbMain Circuit 13 in·lb
Environmental
Ambient Air Temperature:	Close to Contactor Fitted with Thermal O/L Relay -25 ... 60 °CClose to Contactor without Thermal O/L Relay -40 ... 70 °CClose to Contactor for Storage -60 ... +80 °C
Climatic Withstand:	Category B according to IEC 60947-1 Annex Q
Maximum Operating Altitude Permissible:	Without Derating 3000 m
Resistance to Vibrations acc. to IEC 60068-2-6:	5 ... 300 Hz 4 g closed position / 2 g open position
Resistance to Shock acc. to IEC 60068-2-27:	Closed, Shock Direction: B1 25 gOpen, Shock Direction: B1 5 gShock Direction: A 30 gShock Direction: B2 15 gShock Direction: C1 25 gShock Direction: C2 25 g
RoHS Status:	Following EU Directive 2011/65/EU
Certificates and Declarations (Document Number)
ABS Certificate:	ABS_20-2060694-PDA
BV Certificate:	BV_2634H24898B0
CB Certificate:	CB_SE-108879
CCC Certificate:	CCC_2010010304445624
CQC Certificate:	CQC2010010304445624CQC2020010304298240
cUL Certificate:	UL_20180227_E312527_7_1
Declaration of Conformity - CCC:	20209803040012532020980304001082
Declaration of Conformity - CE:	1SBD250000U1000
Declaration of Conformity - UKCA:	1SBD250031U1000
EAC Certificate:	EAC_RU_FRME77B03447
Environmental Information:	1SBD250147E10001SBC100222M0201
GL Certificate:	DNV-GL_TAE00001AF-3
GOST Certificate:	GOST_POCCFR.ME77.B07175.pdf
Instructions and Manuals:	1SBC101027M6801
KC Certificate:	KC_HW02016-15005C
LR Certificate:	LRS_1300087E1
RINA Certificate:	RINA_ELE240318XG
RMRS Certificate:	RMRS_1802705280
RoHS Information:	1SBD250000U1000
UL Certificate:	UL_20140305-E312527_7_1
UL Listing Card:	E312527
Container Information
Package Level 1 Units:	box 1 piece
Package Level 1 Width:	87 mm
Package Level 1 Depth / Length:	79 mm
Package Level 1 Height:	47 mm
Package Level 1 Gross Weight:	0.31 kg
Package Level 1 EAN:	3471523113626
Package Level 2 Units:	box 27 piece
Package Level 2 Width:	250 mm
Package Level 2 Depth / Length:	300 mm
Package Level 2 Height:	315 mm
Package Level 2 Gross Weight:	8.37 kg
Package Level 3 Units:	1296 piece
Classifications
Object Classification Code:	Q
ETIM 4:	EC000066 - Magnet contactor, AC-switching
ETIM 5:	EC000066 - Magnet contactor, AC-switching
ETIM 6:	EC000066 - Power contactor, AC switching
ETIM 7:	EC000066 - Power contactor, AC switching
ETIM 8:	EC000066 - Power contactor, AC switching
eClass:	V11.0 : 27371003
UNSPSC:	39121529
E-Number (Finland):	3706236
