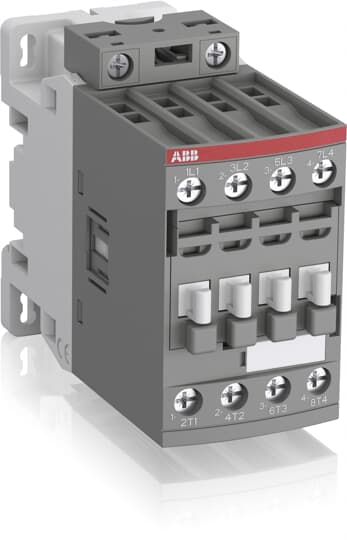

ABB AF38-40-00-14 250-500V50/60HZ-DC Contactor 1SBL297201R1400

The AF38-40-00-14 is a 4 pole - 690 V IEC or 600 UL contactor with screw terminals, controlling motors up to 11 kW / 400 V AC (AC-3) and switching power circuits up to 55 A (AC-1) or 55 A UL general use. Thanks to the AF technology, the contactor has a wide control voltage range (250-500 V 50/60 Hz and DC), managing large control voltage variations, reducing panel energy consumptions and ensuring distinct operations in unstable networks. Furthermore, surge protection is built-in, offering a compact solution. AF contactors have a block type design, can be easily extended with add-on auxiliary contact blocks and an additional wide range of accessories.

Specifications

Ordering
Minimum Order Quantity:	1 piece
Customs Tariff Number:	85364900
Popular Downloads
Instructions and Manuals:	1SBC101027M6801
Dimension Diagram:	DNV_TAE00001AF-4
Dimensions
Product Net Width:	45 mm
Product Net Depth / Length:	101 mm
Product Net Height:	86 mm
Product Net Weight:	0.4 kg
Technical
Number of Main Contacts NO:	4
Number of Main Contacts NC:	0
Number of Auxiliary Contacts NO:	0
Number of Auxiliary Contacts NC:	0
Standards:	IEC 60947-1 / 60947-4-1 and EN 60947-1 / 60947-4-1, UL 508, CSA C22.2 N°14
Rated Operational Voltage:	Main Circuit 690 V
Rated Frequency (f):	Main Circuit 50 / 60 Hz
Conventional Free-air Thermal Current (Ith):	acc. to IEC 60947-4-1, Open Contactors q = 40 °C 55 A
Rated Operational Current AC-1 (Ie):	(690 V) 40 °C 55 A(690 V) 60 °C 45 A(690 V) 70 °C 37 A
Rated Operational Current AC-3 (Ie):	(415 V) 60 °C 21.2 A(440 V) 60 °C 20 A(500 V) 60 °C 17.6 A(690 V) 60 °C 10.5 A(380 / 400 V) 60 °C 22 A(220 / 230 / 240 V) 60 °C 23.2 A
Rated Operational Power AC-3 (Pe):	(400 V) 11 kW(415 V) 11 kW(440 V) 11 kW(500 V) 11 kW(690 V) 9 kW(220 / 230 / 240 V) 5.5 kW
Rated Short-time Withstand Current Low Voltage (Icw):	at 40 °C Ambient Temp, in Free Air, from a Cold State 10 s 300 Aat 40 °C Ambient Temp, in Free Air, from a Cold State 15 min 55 Aat 40 °C Ambient Temp, in Free Air, from a Cold State 1 min 150 Aat 40 °C Ambient Temp, in Free Air, from a Cold State 1 s 450 Aat 40 °C Ambient Temp, in Free Air, from a Cold State 30 s 225 Afor 1 s -empty- A
Maximum Electrical Switching Frequency:	(AC-1) 600 cycles per hour
Rated Insulation Voltage (Ui):	acc. to IEC 60947-4-1 and VDE 0110 (Gr. C) 690 Vacc. to UL/CSA 600 V
Rated Impulse Withstand Voltage (Uimp):	6 kV
Maximum Mechanical Switching Frequency:	3600 cycles per hour
Rated Control Circuit Voltage (Uc):	50 Hz 250 ... 500 V60 Hz 250 ... 500 VDC Operation 250 ... 500 V
Operate Time:	Between Coil De-energization and NC Contact Closing 13 ... 98 msBetween Coil De-energization and NO Contact Opening 11 ... 95 msBetween Coil Energization and NC Contact Opening 38 ... 90 msBetween Coil Energization and NO Contact Closing 40 ... 95 ms
Mounting on DIN Rail:	TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715
Mounting by Screws (not supplied):	2 x M4 screws placed diagonally
Connecting Capacity Main Circuit:	Flexible with Ferrule 1/2x 1.5 ... 16 mm²Flexible with Insulated Ferrule 1x 1.5 ... 16 mm²Flexible with Insulated Ferrule 2x 1.5 ... 16 mm²Rigid 1/2x 1.5 ... 16 mm²
Connecting Capacity Control Circuit:	Flexible with Ferrule 1/2x 0.75 ... 2.5 mm²Flexible with Insulated Ferrule 1x 0.75 ... 2.5 mm²Flexible with Insulated Ferrule 2x 0.75 ... 1.5 mm²Rigid 1/2x 1 ... 2.5 mm²
Wire Stripping Length:	Control Circuit 10 mmMain Circuit 12 mm
Degree of Protection:	acc. to IEC 60529, IEC 60947-1, EN 60529 Coil Terminals IP20acc. to IEC 60529, IEC 60947-1, EN 60529 Main Terminals IP20
Terminal Type:	Screw Terminals
Technical UL/CSA
General Use Rating UL/CSA:	(600 V AC) 55 A
Tightening Torque UL/CSA:	Control Circuit 11 in·lbMain Circuit 22 in·lb
Environmental
Ambient Air Temperature:	Close to Contactor for Storage -60 ... +80 °CNear Contactor for Operation in Free Air -40 ... 70 °C
Climatic Withstand:	Category B according to IEC 60947-1 Annex Q
Maximum Operating Altitude Permissible:	Without Derating 3000 m
Resistance to Vibrations acc. to IEC 60068-2-6:	5 ... 300 Hz 4 g closed position / 2 g open position
Resistance to Shock acc. to IEC 60068-2-27:	Closed, Shock Direction: B1 25 gOpen, Shock Direction: B1 5 gShock Direction: A 30 gShock Direction: B2 15 gShock Direction: C1 25 gShock Direction: C2 25 g
RoHS Status:	Following EU Directive 2011/65/EU
Certificates and Declarations (Document Number)
ABS Certificate:	ABS_20-2060694-PDA
BV Certificate:	BV_2634H24898B0
CB Certificate:	CB_SE-96553M1
CCC Certificate:	CCC_2010010304445623
CQC Certificate:	CQC2010010304445623CQC2020010304294316
Declaration of Conformity - CCC:	20209803040012542020980304001052
Declaration of Conformity - CE:	1SBD250001U1000
Declaration of Conformity - UKCA:	1SBD250032U1000
EAC Certificate:	EAC_RU_FRME77B03447
Environmental Information:	1SBD250153E1000
GL Certificate:	DNV-GL_TAE00001AF-3
GOST Certificate:	GOST_POCCFR.ME77.B07175.pdf
Instructions and Manuals:	1SBC101027M6801
KC Certificate:	KC_HW02016-15002C
LR Certificate:	LRS_1300087E1
RINA Certificate:	RINA_ELE240318XG
RMRS Certificate:	RMRS_1802705280
RoHS Information:	1SBD250001U1000
UL Certificate:	UL_20171228-E319322_3_1
UL Listing Card:	UL_E319322
Container Information
Package Level 1 Units:	box 1 piece
Package Level 1 Width:	87 mm
Package Level 1 Depth / Length:	103 mm
Package Level 1 Height:	47 mm
Package Level 1 Gross Weight:	0.4 kg
Package Level 1 EAN:	3471523115347
Package Level 2 Units:	box 18 piece
Package Level 2 Width:	250 mm
Package Level 2 Depth / Length:	300 mm
Package Level 2 Height:	315 mm
Package Level 2 Gross Weight:	14.4 kg
Package Level 3 Units:	864 piece
Classifications
Object Classification Code:	Q
ETIM 4:	EC000066 - Magnet contactor, AC-switching
ETIM 5:	EC000066 - Magnet contactor, AC-switching
ETIM 6:	EC000066 - Power contactor, AC switching
ETIM 7:	EC000066 - Power contactor, AC switching
ETIM 8:	EC000066 - Power contactor, AC switching
eClass:	V11.0 : 27371003
UNSPSC:	39121529
E-Number (Finland):	3705839
E-Number (Sweden):	3211521
