ABB BER16-4KF Connection Set for Reversing Contactors 1SBL103001R8110
ABB BER16-4KF Connection Set for Reversing Contactors 1SBL103001R8110
Regular price
R 340.67 ZAR
Regular price
R 637.98 ZAR
Sale price
R 340.67 ZAR
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability

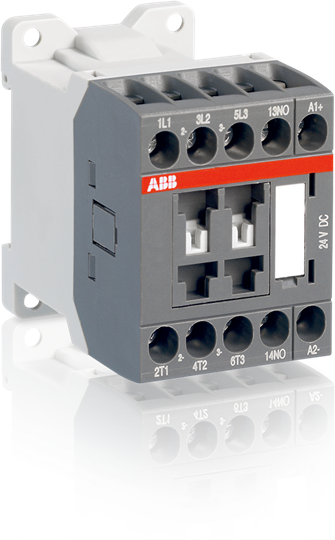

ASL09 contactors are mainly used for controlling 3-phase motors and generally for controlling power circuits up to 690 V AC or 220 V DC. They are mainly used for controlling 3-phase motors, non-inductive or slightly inductive loads. The ASL... series 1-stack 3-pole contactors are of the block type design. - Main poles and auxiliary contact blocks: 3 main poles, 1 built-in auxiliary contact, front-mounted add-on auxiliary contact blocks (mechanically-linked auxiliary contacts compliant with Annex L of IEC 60947-5-1. N.C. mirror contacts compliant with Annex F of IEC 60947-4-1) - Control circuit: DC operated with solid core magnet circuit. The polarity on the coil terminals (A1+ and A2-) must be respected - Accessories: a wide range of accessories is available. ASL... contactors are fitted with low consumption DC coils and are suitable for a direct control by PLC outputs.
Specifications
| Ordering | |
|---|---|
| Minimum Order Quantity: | 1 piece |
| Customs Tariff Number: | 85364900 |
| Popular Downloads | |
| Instructions and Manuals: | 1SBC101020M9701 |
| Dimensions | |
| Product Net Width: | 45 mm |
| Product Net Depth / Length: | 72.5 mm |
| Product Net Height: | 68 mm |
| Product Net Weight: | 0.28 kg |
| Technical | |
| Number of Main Contacts NO: | 3 |
| Number of Main Contacts NC: | 0 |
| Number of Auxiliary Contacts NO: | 1 |
| Number of Auxiliary Contacts NC: | 0 |
| Standards: | IEC 60947-1 / 60947-4-1 and EN 60947-1 / 60947-4-1, UL 508, CSA C22.2 N°14 |
| Rated Operational Voltage: | Auxiliary Circuit 690 VMain Circuit 690 V |
| Rated Frequency (f): | Auxiliary Circuit 50 / 60 HzMain Circuit 50 / 60 Hz |
| Conventional Free-air Thermal Current (Ith): | acc. to IEC 60947-4-1, Open Contactors q = 40 °C 22 Aacc. to IEC 60947-5-1, q = 40 °C 10 A |
| Rated Operational Current AC-1 (Ie): | (690 V) 40 °C 22 A(690 V) 60 °C 18 A(690 V) 70 °C 15 A |
| Rated Operational Current AC-3 (Ie): | (415 V) 60 °C 9 A(440 V) 60 °C 8 A(500 V) 60 °C 8 A(690 V) 60 °C 5 A(380 / 400 V) 60 °C 9 A(220 / 230 / 240 V) 60 °C 9 A |
| Rated Operational Power AC-3 (Pe): | (400 V) 4 kW(415 V) 4 kW(440 V) 4 kW(500 V) 4 kW(690 V) 4 kW(220 / 230 / 240 V) 2.2 kW |
| Rated Operational Current AC-15 (Ie): | (500 V) NC 2(500 V) 2 A(690 V) 2 A(24 / 127 V) 6 A(220 / 240 V) 4 A(400 / 440 V) 3 A |
| Rated Short-time Withstand Current Low Voltage (Icw): | at 40 °C Ambient Temp, in Free Air, from a Cold State 10 s 100 Aat 40 °C Ambient Temp, in Free Air, from a Cold State 15 min 22 Aat 40 °C Ambient Temp, in Free Air, from a Cold State 1 min 50 Aat 40 °C Ambient Temp, in Free Air, from a Cold State 1 s 230 Aat 40 °C Ambient Temp, in Free Air, from a Cold State 30 s 65 Afor 0.1 s 140 Afor 1 s 100 A |
| Maximum Breaking Capacity: | cos phi=0.45 (cos phi=0.35 for Ie > 100 A) at 440 V 155 Acos phi=0.45 (cos phi=0.35 for Ie > 100 A) at 690 V 90 A |
| Maximum Electrical Switching Frequency: | (AC-1) 600 cycles per hour(AC-15) 1200 cycles per hour(AC-2 / AC-4) 300 cycles per hour(AC-3) 1200 cycles per hour(DC-13) 900 cycles per hour |
| Rated Operational Current DC-13 (Ie): | (24 V) 6 A / 144 W(48 V) 2.8 A / 134 W(72 V) 1 A / 72 W(110 V) 0.55 A / 60 W(125 V) 0.55 A / 69 W(220 V) 0.27 A / 60 W(250 V) 0.27 A / 68 W |
| Rated Insulation Voltage (Ui): | acc. to IEC 60947-4-1 and VDE 0110 (Gr. C) 690 Vacc. to IEC 60947-5-1 and VDE 0110 (Gr. C) 690 Vacc. to UL/CSA 600 V |
| Rated Impulse Withstand Voltage (Uimp): | Auxiliary Circuit 6 kV |
| Maximum Mechanical Switching Frequency: | 3600 cycles per hour |
| Rated Control Circuit Voltage (Uc): | DC Operation 24 V |
| Operate Time: | Between Coil De-energization and NC Contact Closing 15 ... 20 msBetween Coil De-energization and NO Contact Opening 13 ... 17 msBetween Coil Energization and NC Contact Opening 31 ... 53 msBetween Coil Energization and NO Contact Closing 36 ... 59 ms |
| Connecting Capacity Main Circuit: | Flexible with Ferrule 1/2x 0.75 ... 2.5 mm²Flexible with Insulated Ferrule 1x 0.75 ... 2.5 mm²Flexible with Insulated Ferrule 2x 0.75 ... 1.5 mm²Rigid 1/2x 0.75 ... 4 mm² |
| Connecting Capacity Auxiliary Circuit: | Flexible with Ferrule 1/2x 0.75 ... 2.5 mm²Flexible with Insulated Ferrule 1x 0.75 ... 2.5 mm²Flexible with Insulated Ferrule 2x 0.75 ... 1.5 mm²Rigid 1/2x 0.75 ... 2.5 mm² |
| Connecting Capacity Control Circuit: | Flexible with Ferrule 1/2x 0.75 ... 2.5 mm²Flexible with Insulated Ferrule 1x 0.75 ... 2.5 mm²Flexible with Insulated Ferrule 2x 0.75 ... 1.5 mm²Rigid 1/2x 0.75 ... 2.5 mm² |
| Wire Stripping Length: | Auxiliary Circuit 9 mmControl Circuit 9 mmMain Circuit 9 mm |
| Degree of Protection: | acc. to IEC 60529, IEC 60947-1, EN 60529 Auxiliary Terminals IP20acc. to IEC 60529, IEC 60947-1, EN 60529 Coil Terminals IP20acc. to IEC 60529, IEC 60947-1, EN 60529 Main Terminals IP20IP20 |
| Terminal Type: | Screw Terminals |
| Technical UL/CSA | |
| General Use Rating UL/CSA: | (600 V AC) 20 A |
| Horsepower Rating UL/CSA: | (120 V AC) Single Phase 1/3 hp(200 ... 208 V AC) Three Phase 2 hp(220 ... 240 V AC) Three Phase 2 hp(240 V AC) Single Phase 1 hp(440 ... 480 V AC) Three Phase 5 hp(550 ... 600 V AC) Three Phase 7.5 hp |
| Tightening Torque UL/CSA: | Auxiliary Circuit 9 in·lbControl Circuit 9 in·lbMain Circuit 9 in·lb |
| Environmental | |
| Ambient Air Temperature: | Close to Contactor Fitted with Thermal O/L Relay -25 ... 60 °CClose to Contactor without Thermal O/L Relay -40 ... 70 °CClose to Contactor for Storage -60 ... +80 °C |
| Climatic Withstand: | Category B according to IEC 60947-1 Annex Q |
| Maximum Operating Altitude Permissible: | 3000 m |
| Resistance to Vibrations acc. to IEC 60068-2-6: | 5 ... 300 Hz 3 g Closed position / 2 g Open position |
| Resistance to Shock acc. to IEC 60068-2-27: | Closed, Shock Direction: B1 10 gClosed, Shock Direction: C1 20 gClosed, Shock Direction: C2 20 gOpen, Shock Direction: B1 5 gOpen, Shock Direction: C1 9 gOpen, Shock Direction: C2 14 gShock Direction: A 20 gShock Direction: B2 15 g |
| Certificates and Declarations (Document Number) | |
| CB Certificate: | CB_CN13475-M1 |
| CCC Certificate: | CCC_2007010309251577 |
| CQC Certificate: | CQC2007010309251577 |
| Declaration of Conformity - CCC: | 2020980304001224 |
| Declaration of Conformity - CE: | 1SBD250014U1000 |
| Declaration of Conformity - UKCA: | 1SBD250049U1000 |
| Environmental Information: | 1SBD250155E1000 |
| GOST Certificate: | GOST_POCCCNME77B07822.pdf |
| Instructions and Manuals: | 1SBC101020M9701 |
| RoHS Information: | 1SBD251001E1001 |
| UL Certificate: | UL_20120917-E312527-1-1 |
| UL Listing Card: | UL_E312527 |
| Container Information | |
| Package Level 1 Units: | 1 piece |
| Package Level 1 Width: | 78 mm |
| Package Level 1 Depth / Length: | 80 mm |
| Package Level 1 Height: | 48 mm |
| Package Level 1 Gross Weight: | 0.28 kg |
| Package Level 1 EAN: | 3471523059214 |
| Package Level 2 Units: | 40 piece |
| Package Level 2 Width: | 250 mm |
| Package Level 2 Depth / Length: | 195 mm |
| Package Level 2 Height: | 315 mm |
| Package Level 2 Gross Weight: | 11.2 kg |
| Package Level 3 Units: | 960 piece |
| Classifications | |
| Object Classification Code: | Q |
| ETIM 4: | EC000066 - Magnet contactor, AC-switching |
| ETIM 5: | EC000066 - Magnet contactor, AC-switching |
| ETIM 6: | EC000066 - Power contactor, AC switching |
| ETIM 7: | EC000066 - Power contactor, AC switching |
| ETIM 8: | EC000066 - Power contactor, AC switching |
| UNSPSC: | 39121529 |
| IDEA Granular Category Code (IGCC): | 4755 >> Contactors |
| E-Number (Sweden): | 3210521 |
