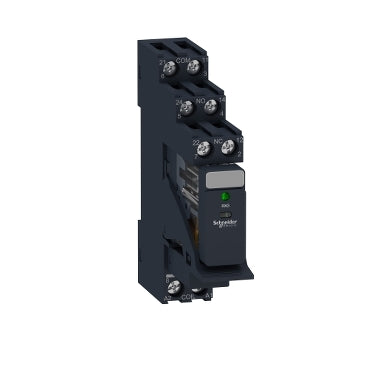

Schneider Harmony. Interface plug-in relay pre-assembled. 5 A. 2 CO. with LED. with protection circuit. 230 V AC RXG23P7PV
Schneider Harmony. Interface plug-in relay pre-assembled. 5 A. 2 CO. with LED. with protection circuit. 230 V AC RXG23P7PV
Couldn't load pickup availability
This interface Plug-In relay belongs to the Schneider Electric Harmony electromechanical relays range. This is a pre-assembled relay mounted on a separate contact terminal socket with integrated clamp and a varistor protection module. This is a 5A, 230Vac, 2 CO interface mechanical relay. This pre-mounted relay is a ready-to-go package saving assembly time. The relay offers LED indicator. The interface relay socket connection is by screw connector type. This pre-assembled relay weighs 0.067Kg. Its design is fit for industrial machines, packaging, textile, HVAC, automation control panels, low/medium voltage switchgear, motor controls, PLC Interfaces, power supplies, building or medical equipment, lighting controls. It is a green premium product and conforms to international standard and certifications like IEC, UL, EAC, CSA, ROHS and REACH. It is sold in lots of 30. The RXG plug-in relays are a series of industrial plug-in relays designed for both simple and complex automation systems and available with 1 CO (10A) and 2 CO (5A) contacts.
| Range of product | Harmony Electromechanical Relays |
|---|---|
| Series name | Interface relay |
| product or component type | Pre-assembled plug-in relay with socket |
| Device short name | RXG |
| Contacts type and composition | 2 C/O |
| [Ithe] conventional enclosed thermal current | 5 A |
| Status LED | With |
|---|---|
| [Ie] rated operational current | 5 A at 30 V (DC) conforming to UL 5 A at 30 V (DC) conforming to IEC 5 A at 250 V (AC) conforming to IEC 5 A at 250 V (AC) conforming to UL |
| Electrical durability | 100000 cycles resistive load |
| Coil resistance | 23500 Ohm +/- 15 % |
| Shock resistance | 20 gn in operation 100 gn not in operation |
| Mounting position | Any position |
| Average coil consumption | 0.96 VA AC 50...60 Hz |
| [Uc] control circuit voltage | 230 V AC 50/60 Hz |
| colour of cover | Transparent |
| Drop-out voltage threshold | >= 0.3 Uc AC |
| Load current | 5 A |
| Minimum switching capacity | 50 mW at 10 mA, 5 V DC |
| Maximum switching capacity | 1250 VA AC 150 W DC |
| Torque value | 0.8 N.m 0.79 N.m |
| Contact resistance | 100 mOhm |
| Insulation resistance | 1000 MOhm at 500 V DC |
| Electrical insulation class | Class F |
| Mechanical durability | 10000000 cycles |
| Safety reliability data | B10d = 100000 |
| Operating time | 20 ms |
| Reset time | 20 ms |
| Connections - terminals | Connector, 1 x 0.25...1 x 2.5 mm² (AWG 22...AWG 14) flexible with cable end Connector, 2 x 0.25...2 x 1 mm² (AWG 22...AWG 17) flexible with cable end Connector, 1 x 0.5...1 x 2.5 mm² (AWG 20...AWG 14) solid without cable end Connector, 2 x 0.5...2 x 1.5 mm² (AWG 20...AWG 16) solid without cable end |
| Overvoltage category | III |
| Maximum switching voltage | 250 V |
| Protection category | RT I |
| Operating rate | <= 1800 cycles/hour under load <= 18000 cycles/hour no-load |
| Pollution degree | 2 |
| Utilisation coefficient | 20 % |
| [Ui] rated insulation voltage | 250 V conforming to IEC |
| Dielectric strength | 1000 V AC between contacts with micro disconnection 1300 V between terminals and base with basic insulation 3000 V between terminals and LTB area with basic insulation 3000 V AC between poles with basic insulation 5000 V AC between coil and contact with reinforced insulation |
| Test levels | Level A group mounting |
| device presentation | Complete product |
| Contacts material | Silver alloy (AgSnO2In2O3) |
| net weight | 0.065 kg |
| Standards | IEC 61810-1 CSA C22.2 No 14 UL 508 IEC 61984 |
|---|---|
| Product certifications | EAC CSA UL CE DNV-GL |
| ambient air temperature for storage | -40…85 °C |
| Ambient air temperature for operation | -40…70 °C |
| IP degree of protection | IP20 |
| Relative humidity | 10…85 % |
| Vibration resistance | 3 gn, amplitude = +/- 1.5 mm (f = 10…150 Hz)in operation 5 gn, amplitude = +/- 1.5 mm (f = 10…150 Hz)not in operation |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 7.96 cm |
| Package 1 Width | 1.56 cm |
| Package 1 Length | 7.2 cm |
| Package 1 Weight | 67 g |
| Unit Type of Package 2 | BB1 |
| Number of Units in Package 2 | 30 |
| Package 2 Height | 18 cm |
| Package 2 Width | 9 cm |
| Package 2 Length | 27 cm |
| Package 2 Weight | 2.128 kg |
| Unit Type of Package 3 | S03 |
| Number of Units in Package 3 | 180 |
| Package 3 Height | 30 cm |
| Package 3 Width | 30 cm |
| Package 3 Length | 40 cm |
| Package 3 Weight | 13.312 kg |
| Warranty | 18 months |
|---|
