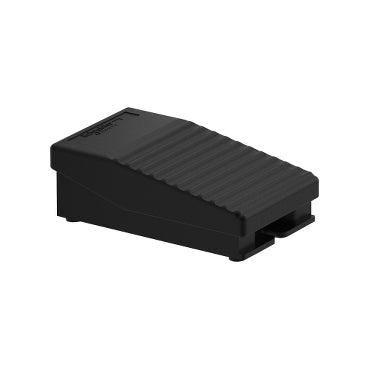

Schneider Preventa XPE. Single foot switch. plastic. black. without cover. 1 NO + 1 NC XPEA110
Schneider Preventa XPE. Single foot switch. plastic. black. without cover. 1 NO + 1 NC XPEA110
Regular price
R 1,064.46 ZAR
Regular price
Sale price
R 1,064.46 ZAR
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
This Harmony XPE consists of a single step black plastic safety footswitch. It has 1 x NC + 1 x NO contacts. It preserves the ergonomy of your machines, while ensuring their compliance with the latest safety standards. It provides long life in harsh conditions thanks to its resistance to hydraulic oil and various greases.
| Range of product | Harmony XPE |
|---|---|
| product or component type | Foot switch |
| Material | Plastic |
| Foot switch type | Single foot switch |
| Device short name | XPEA |
| Trigger mechanism | Without trigger mechanism |
| Contact operation | 1 step |
| Contacts type and composition | 1 NC + 1 NO |
| Colour | Black |
| Positive opening | With conforming to IEC 60947-5-1 appendix K |
|---|---|
| Connections - terminals | Screw clamp terminal, <= 1 x 2.5 mm² with or without cable end Screw clamp terminal, <= 2 x 1.5 mm² with or without cable end |
| Cable entry | 1 plain hole for M20 cable gland 1 plain hole for M16 cable gland |
| Mechanical durability | 2000000 cycles |
| [Ie] rated operational current | 3 A, 240 V, AC-15, A300 0.27 A, 250 V, DC-13, Q300 conforming to IEC 60947-5-1 appendix A |
| [Ui] rated insulation voltage | 500 V (pollution degree 3) conforming to IEC 60947-1 500 V (pollution degree 3) conforming to NF C 20-040 group C 500 V (pollution degree 3) conforming to VDE 0110 group C 300 V conforming to UL 508 300 V conforming to CSA C22.2 No 14 |
| [Uimp] rated impulse withstand voltage | 6 kV conforming to IEC 60947-1 |
| Maximum resistance across terminals | 25 MOhm conforming to IEC 60255-7 category 3 25 MOhm conforming to NF C 93-050 method A |
| Short-circuit protection | 10 A cartridge fuse type gG conforming to IEC 60947-5-1 10 A cartridge fuse type gG conforming to VDE 0660-200 |
| Rated operational power in W | 10 W DC-13, operating rate <60 cyc/mn, 5000000 cycles, 24 V, load factor: 0.5 conforming to IEC 60947-5-1 appendix C 4 W DC-13, operating rate <60 cyc/mn, 5000000 cycles, 120 V, load factor: 0.5 conforming to IEC 60947-5-1 appendix C 7 W DC-13, operating rate <60 cyc/mn, 5000000 cycles, 48 V, load factor: 0.5 conforming to IEC 60947-5-1 appendix C |
| net weight | 0.275 kg |
| Standards | IEC 60947-5-1 |
|---|---|
| protective treatment | TH |
| Ambient air temperature for operation | -25…55 °C |
| ambient air temperature for storage | -40…70 °C |
| Vibration resistance | 5 gn (f= 10…500 Hz) conforming to IEC 60068-2-6 |
| Shock resistance | 25 gn conforming to IEC 60068-2-27 |
| Overvoltage category | Class II conforming to IEC 61140 Class II conforming to NF C 20-030 |
| IP degree of protection | IP43 conforming to IEC 60529 |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 12.5 cm |
| Package 1 Width | 9.4 cm |
| Package 1 Length | 18.9 cm |
| Package 1 Weight | 334.0 g |
| Unit Type of Package 2 | S02 |
| Number of Units in Package 2 | 4 |
| Package 2 Height | 15.0 cm |
| Package 2 Width | 30.0 cm |
| Package 2 Length | 40.0 cm |
| Package 2 Weight | 1.69 kg |
| Unit Type of Package 3 | P06 |
| Number of Units in Package 3 | 64 |
| Package 3 Height | 77.0 cm |
| Package 3 Width | 80.0 cm |
| Package 3 Length | 60.0 cm |
| Package 3 Weight | 35.54 kg |
| Warranty | 18 months |
|---|
