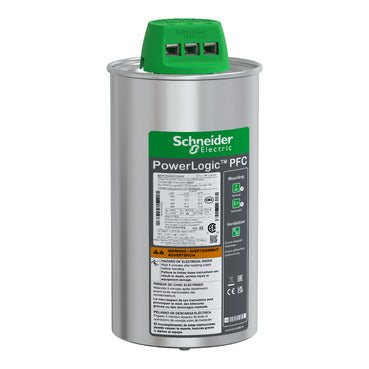

Schneider VarPlus Can HDuty Capacitor - 25.8/31 kvar - 480 V - 50/60Hz BLRCH258A310B48
Schneider VarPlus Can HDuty Capacitor - 25.8/31 kvar - 480 V - 50/60Hz BLRCH258A310B48
Regular price
R 1,109.73 ZAR
Regular price
Sale price
R 1,109.73 ZAR
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
VarPlus Can capacitor are a reliable and flexible solution for power factor correction in stringent operating conditions. These capacitors are particularly used for higher voltage disturbances or when a few non-linear loads are present. The rated current of the capacitors must be in increased in order to cope with the circulation of the harmonic current. This capacitor provides a rated output power of 25.8 kVar at 480V AC, 50 Hz. Fastening assured by a ClampTite terminal. This component meet the standards IEC 60831-1 and IEC 60831-2. The case product weight is 2.5 kg.
| Range of product | PowerLogic |
|---|---|
| product or component type | Heavy duty capacitor |
| Network frequency | 50/60 Hz |
| Series name | HDuty |
| Network harmonic content | <= 20 % |
| Electrical parameters | 25.8 kvar 480 V 50 Hz 31 kvar 480 V 60 Hz |
| Maximum permissible voltage | 1.1 x Un (8 hours over 24 hours) |
| continuous overcurrent capacity | 1.8 x In |
| Rated voltage | 480 V AC 50/60 Hz |
| Dielectric losses | < 0.2 W/kvar |
|---|---|
| Power losses | < 0.5 W/kVAr |
| capacitance tolerance | - 5 % to 10 % |
| Voltage test | 2.15 x Un AC between terminals for 10 s <= 660 V - 3 kV AC between terminal and container for 10 s >= 660 V - 6 kV AC between terminal and container for 10 s |
| Inrush current | 250 x In |
| Maximum switching operation per year | 7000 |
| Service life in hours | 130000 h |
| Dielectric material | Metallized polypropylene film with Zn/Al alloy, special resistivity & profile, special edge (wave cut) |
| Impregnation material | Non-PCB dry PUR resin Biodegradable |
| Type of installation | Indoor installation |
| Connections - terminals | ClampTite terminal |
| mounting mode | Upright/horizontal |
| Diameter | 116 mm |
| Height | 242 mm |
| net weight | 2.5 kg |
| Standards | IEC 60831-1 IEC 60831-2 |
|---|---|
| IP degree of protection | IP20 |
| Operating altitude | 2000 m |
| Temperature class | D |
| Ambient air temperature for operation | -25…55 °C |
| Relative humidity | 95 % |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 19 cm |
| Package 1 Width | 19 cm |
| Package 1 Length | 31 cm |
| Package 1 Weight | 3.062 kg |
| Unit Type of Package 2 | S06 |
| Number of Units in Package 2 | 15 |
| Package 2 Height | 74 cm |
| Package 2 Width | 60 cm |
| Package 2 Length | 80 cm |
| Package 2 Weight | 45.93 kg |
| Unit Type of Package 3 | S06 |
| Number of Units in Package 3 | 15 |
| Package 3 Height | 74 cm |
| Package 3 Width | 60 cm |
| Package 3 Length | 80 cm |
| Package 3 Weight | 45.93 kg |
| Warranty | 18 months |
|---|
