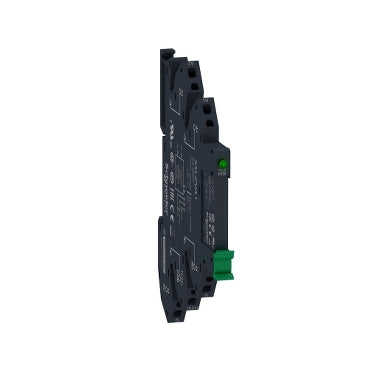

Schneider Harmony. Solid state relay pre assembled. 3.5 A. DC switching. spring sockets. input 16…30 V DC. output 1...24 V DC SSL1D03BDPR
Schneider Harmony. Solid state relay pre assembled. 3.5 A. DC switching. spring sockets. input 16…30 V DC. output 1...24 V DC SSL1D03BDPR
Regular price
R 0.00 ZAR
Regular price
Sale price
R 0.00 ZAR
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
This slim interface solid state relay belongs to the Schneider Electric Harmony solid state relays range. This is a pre-assembled relay mounted on a socket that has a built-in reverse polarity protection circuit and a LED indicator. This is a 3.5A DC switching slim relay with 16Vdc to 30Vdc input and 1Vdc to 24Vdc output. This pre-assembled relay is a ready-to-go package saving assembly time. This 6mm relay has an IP67 water resistant encapsulation and a IP20 socket protection. The relay socket connection is by spring terminal type with a lever for locking or releasing the relay. This SSL weighs 0.033Kg. It is the ideal solution for packaging, HVAC, injection molding, textile machines, medical equipment, and heating control applications. It conforms to international standard and certifications like IEC, UL, CSA, CE, ROHS, GOST, EN, and REACH. It is sold in lots of 30. Thiss is a complete range of control input and load output configurations for both AC and DC switching applications. The pre-assembled range in SSL brings you easier selection, time-saving in installation and robustness.
| Range of product | Harmony Solid State Relays |
|---|---|
| product or component type | Solid state relay up to 10 A |
| Device short name | SSL |
| Network number of phases | 1 phase |
| Output switching mode | DC switching |
| mounting support | Spring socket |
|---|---|
| [In] rated current | 3.5 A |
| Output voltage | 1...24 V DC |
| [Uc] control circuit voltage | 16...30 V DC |
| CLAMPING FORCE | 10...40 N.m |
| Connections - terminals | Flexible cable with cable end,clamping capacity: 0.2...1.5 mm² (AWG 24...AWG 16) Solid cable with cable end,clamping capacity: 0.2...1.5 mm² (AWG 24...AWG 16) |
| Capacitance unbalance | 1.5 pF input/output |
| Minimum switching voltage | 16 V DC turn-on |
| Maximum switching voltage | 5 V DC turn-off |
| Input impedance | 2.67 kOhm |
| solid state output type | Mosfet output DC switching |
| Load current | 0.001…3.5 A |
| tansient Overvoltage | 30 V DC |
| Surge current | 9 A for 10 ms |
| Maximum voltage drop | <0.5 V on-state |
| Maximum leakage current | 0.001 mA off-state |
| Response time | 0.25 ms (turn-on) 0.12 ms (turn-off) |
| Overvoltage category | III |
| Width | 6.2 mm |
| Height | 104.6 mm |
| Depth | 79.5 mm |
| net weight | 0.0285 kg |
| Flame retardance | V0 conforming to UL 94 |
|---|---|
| Dielectric strength | 2500 V for input/output |
| Pollution degree | 2 |
| Standards | IEC 60950-1 IEC 61000 IEC 62314 IEC 61984 EN 61984 |
| Product certifications | UL CSA CE UL 508 CSA22.2 No. 14-10 GOST |
| marking | CURus CSA CE EAC |
| IP degree of protection | IP20 |
| Ambient air temperature for operation | -20…70 °C |
| ambient air temperature for storage | -20…85 °C |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 10.04 cm |
| Package 1 Width | 0.625 cm |
| Package 1 Length | 7.9 cm |
| Package 1 Weight | 33 g |
| Unit Type of Package 2 | BB1 |
| Number of Units in Package 2 | 30 |
| Package 2 Height | 9 cm |
| Package 2 Width | 11 cm |
| Package 2 Length | 20 cm |
| Package 2 Weight | 1.04 kg |
| Unit Type of Package 3 | S03 |
| Number of Units in Package 3 | 270 |
| Package 3 Height | 30 cm |
| Package 3 Width | 30 cm |
| Package 3 Length | 40 cm |
| Package 3 Weight | 9.05 kg |
| Warranty | 18 Months |
|---|
